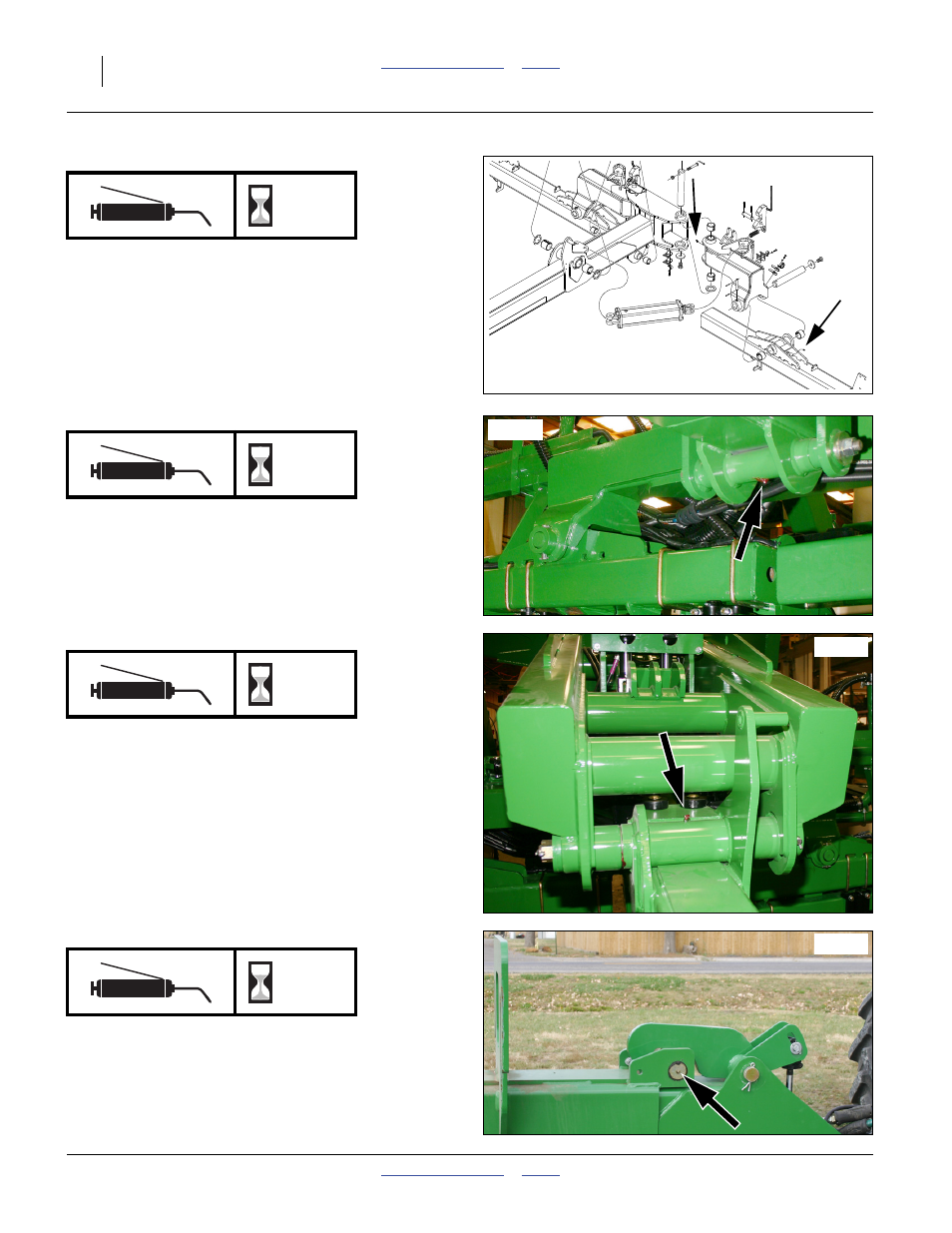

Tool Bar Pivots

Vertical and horizontal tool bar pivots. 2 zerks per wing;
4 total

Type of Lubrication: Grease
Quantity: Until grease emerges

Tongue Lift Cylinder Anchor Pin

At rear underside of tongue;
1 total

Type of Lubrication: Grease
Quantity: Until grease emerges

Tongue-Mainframe Pivot Pin

1 zerk

Type of Lubrication: Grease
Quantity: Until grease emerges

Tongue Slide Roller

1 zerk

Type of Lubrication: Grease
Quantity: Until grease emerges
