Remove/Store Caster Lift Locks
Refer to Figure 17
11. Remove transport lock channels
from lift cylinders
located on gauge wheels.
Refer to Figure 17 and Figure 18
12. Transfer lift cylinder transport lock channels
to
their storage positions .
Unfold Closeout
13. As appropriate for the next planned activity, activate
lift hydraulics and lower planter.
14. To disable fold hydraulics, and lock caster arms in
field position, set Hydraulic Selector Marker/Fold
switch (
or in Figure 19 on page 27) to center/off
or Marker.
Note: The center/off switch position disables all
Fold/Marker solenoid valves.

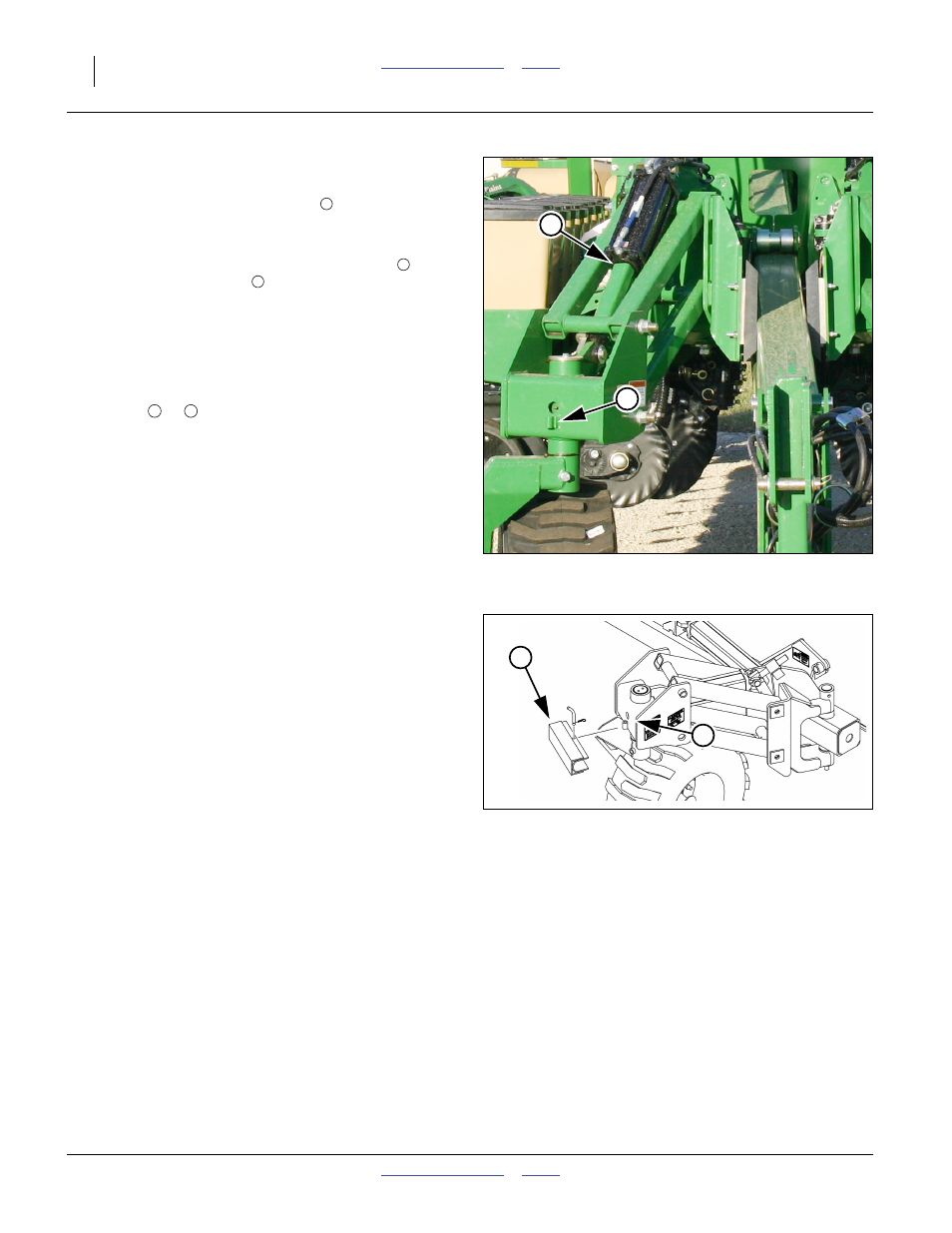

Figure 17
Caster Lift Cylinder Lock
34550
3
4
3
3
4
M O
Figure 18
Transport Cylinder Lock Storage
27290
4
3
