Appendix B - Initial Setup
Marker Hose Tips
If markers are not installed on the implement, perform
this check before hitching the air drill for the first time.
Inspect ports A and B at the hydraulic bulkhead at the
rear of the seed cart. If Female ORB to male QD
couplers are present in these ports, remove them and
save them for possible future use.
Fluid Spill Risk: Do not connect Marker hoses at the hitch if
capped couplers are installed, or hydraulic fluid will be lost.
The couplers are provided for possible field installation of
markers, or for use with auxiliary implements such as augers.
Console Installation
The air drill’s standard seed monitor system includes a
virtual terminal that must be mounted in the tractor cab.
As supplied by DICKEY-john
®
, the kit includes a flat
bracket, and ball swivel.
The ball swivel includes four 10-32 screws. You or your
dealer must provide the mounting holes for the screws.
Your dealer may have alternate suction cup or clamping
brackets available if you prefer to avoid drilling holes.
See the DICKEY-john
®
manual for harness connections.
Visibility Hazard: Mount the console so that it is easy to
monitor during planting, but does not interfere with safe
operation of the tractor in the field or on public roads.
Monitor Setup Data
Refer to the DICKEY-john
®
Quick Start Guide (G.P. part
number 110011544).
Weight Transfer Setup
Prior to first folding operation, adjust the wing and cart
weight transfer circuits for nominal pressures. These
circuits require some transfer pressure in order to
operate correctly in Fold and lift lock.
See “Weight Transfer Adjustments” on page 90.
Set the wing-transfer circuit to 250 psi.
Set the cart-transfer circuit to 100 psi.

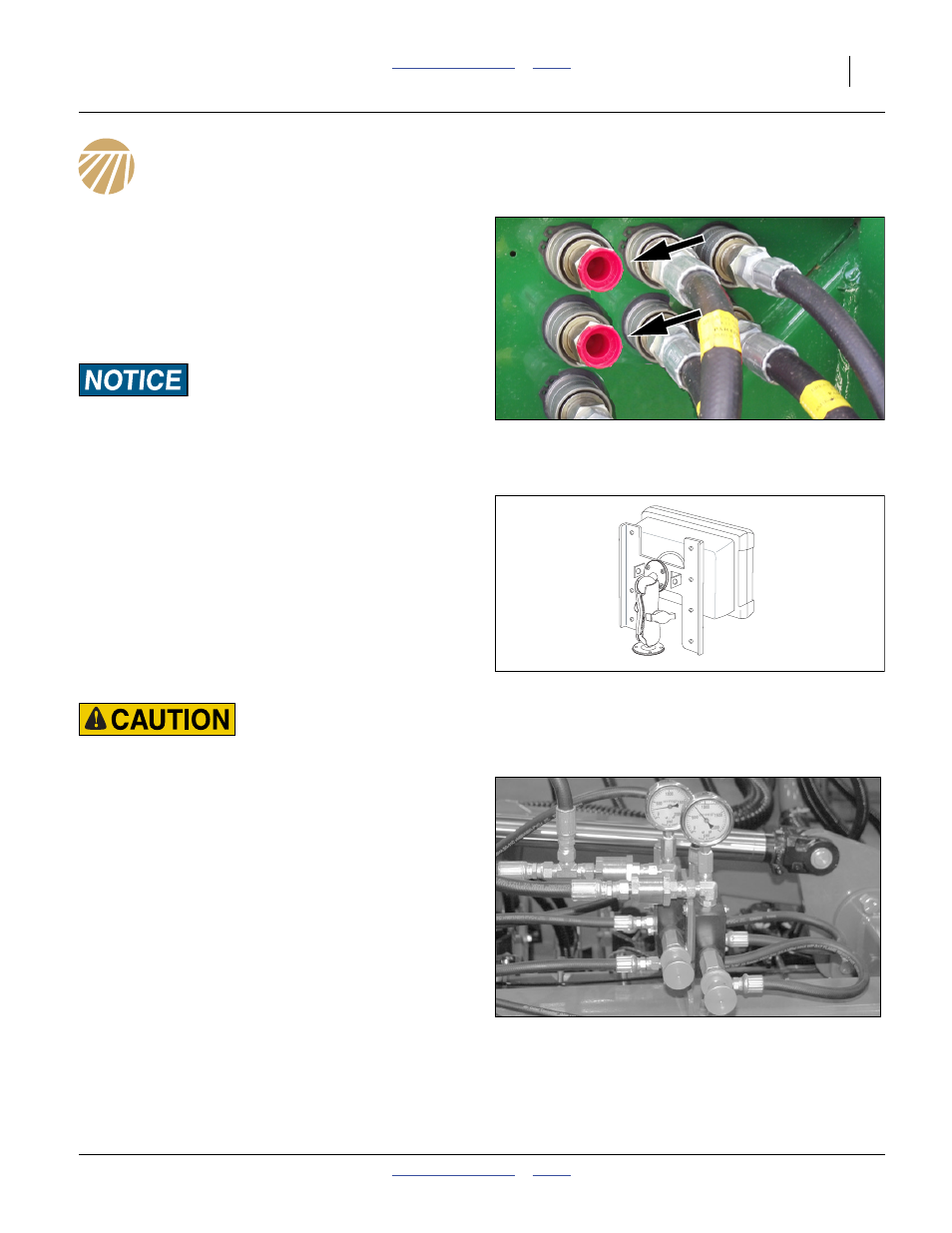

Figure 144
Hose Tips in Bulkhead Ports
31387
Figure 145
IntelliAg
®
Terminal
26429
Figure 146
Cart & Wing Transfer Valves
31192
