Tire Inflation Chart
Hydraulic Connectors and Torque
Refer to Figure 130 (a hypothetical fitting)
Leave any protective caps in place until immediately prior
to making a connection.
Tire Size
Inflation
Tire Warranty Information
265/70B16.5 (10-16.5) 8-Ply
SKID STEER NHS
414 kPa
60 psi
All tires are warranted by the original manufacturer of
the tire. Tire warranty information is found on-line at the
manufacturer’s web sites listed below. For assistance or
information, contact your nearest Authorized Farm Tire
Retailer.
15-19.5 12-Ply SKID STEER NHS
276 kPa
40 psi
13-5x6 4-Ply TURF SAVER
110 kPa
16 psi
Manufacturer
Firestone
Gleason
Titan
Web site
NPT - National Pipe Thread
Note tapered threads, no cone/flare, and no O-ring.
Apply liquid pipe sealant for hydraulic applications.
Do not use tape sealant, which can clog a filter and/or
plug an orifice.
JIC - Joint Industry Conference (SAE J514)
Note straight threads
and the 37
° cone on
“M” fittings (or 37
° flare on “F” fittings).
Use no sealants (tape or liquid) on JIC fittings.
ORB - O-Ring Boss (SAE J514)
Note straight threads
.
Prior to installation, to prevent abrasion during
tightening, lubricate O-Ring with clean hydraulic fluid.
Use no sealants (tape or liquid) on ORB fittings.
ORB fittings that need orientation, such as the ell
depicted, also have a washer
and jam nut
(“adjustable thread port stud”). Back jam nut away
from washer. Thread fitting into receptacle until
O-Ring contacts seat. Unscrew fitting to desired
orientation. Tighten jam nut to torque specification.
2
5
4
9
8
7
6
3

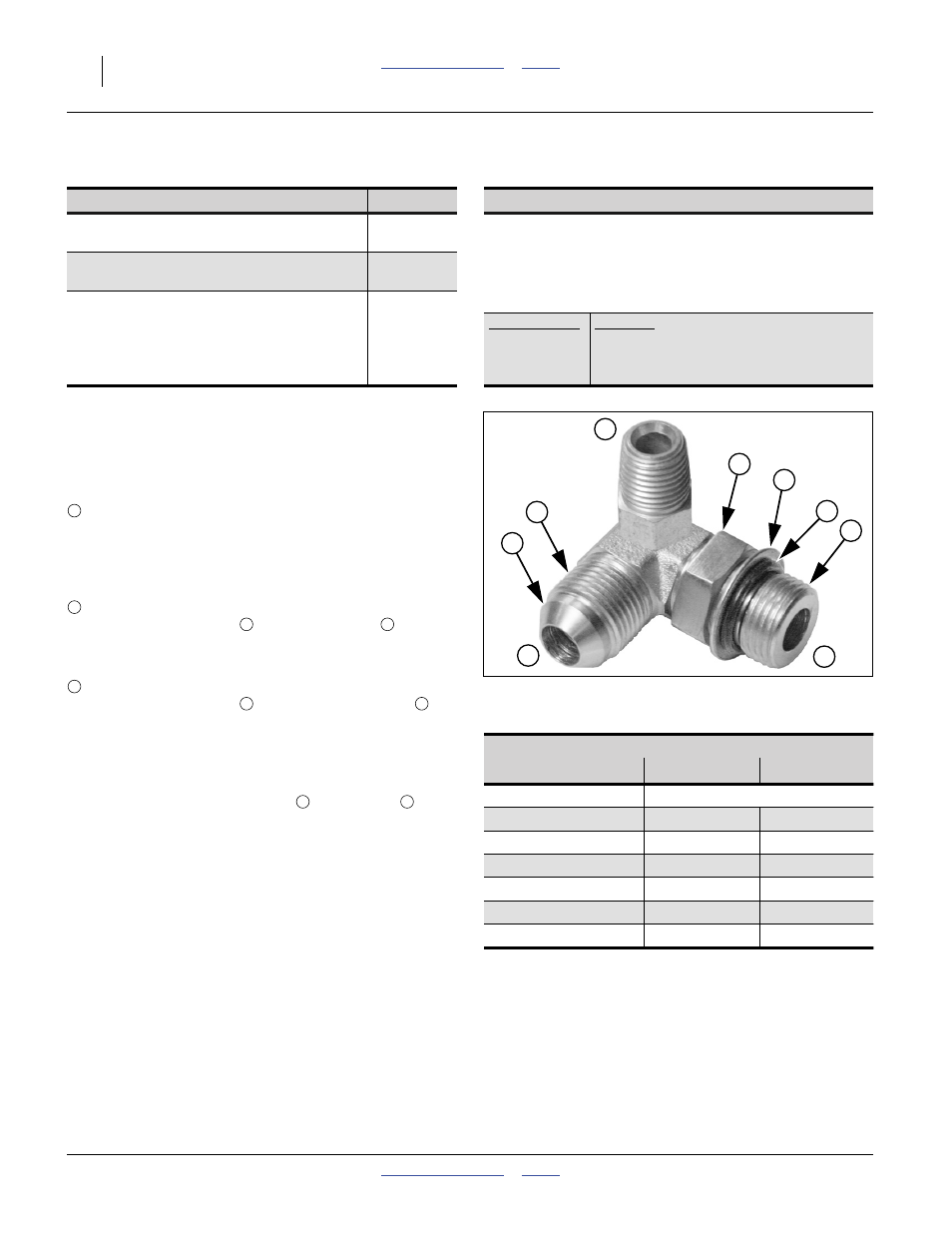

Figure 130
Hydraulic Connector ID
31282
Fittings Torque Values
Fitting Call Size
N-m
Ft-Lbs
1
⁄
4
NPT
1.5-3.0 turns past finger tight
5
⁄
16
JIC
24-27
18-20
5
⁄
16
ORB w/jam nut
16-22
12-16
5
⁄
16
ORB straight
24-32
18-24
3
⁄
4
JIC
37-53
27-39
3
⁄
4
ORB w/jam nut
27-41
20-30
3
⁄
4
ORB straight
37-58
27-43
1
1
2
4
5
3
6
7
8
9
