Great Plains Manufacturing, Inc.
Appendix A - Reference Information
147
04/04/2011
166-283M
Tire Inflation Chart
Hydraulic Connectors and Torque

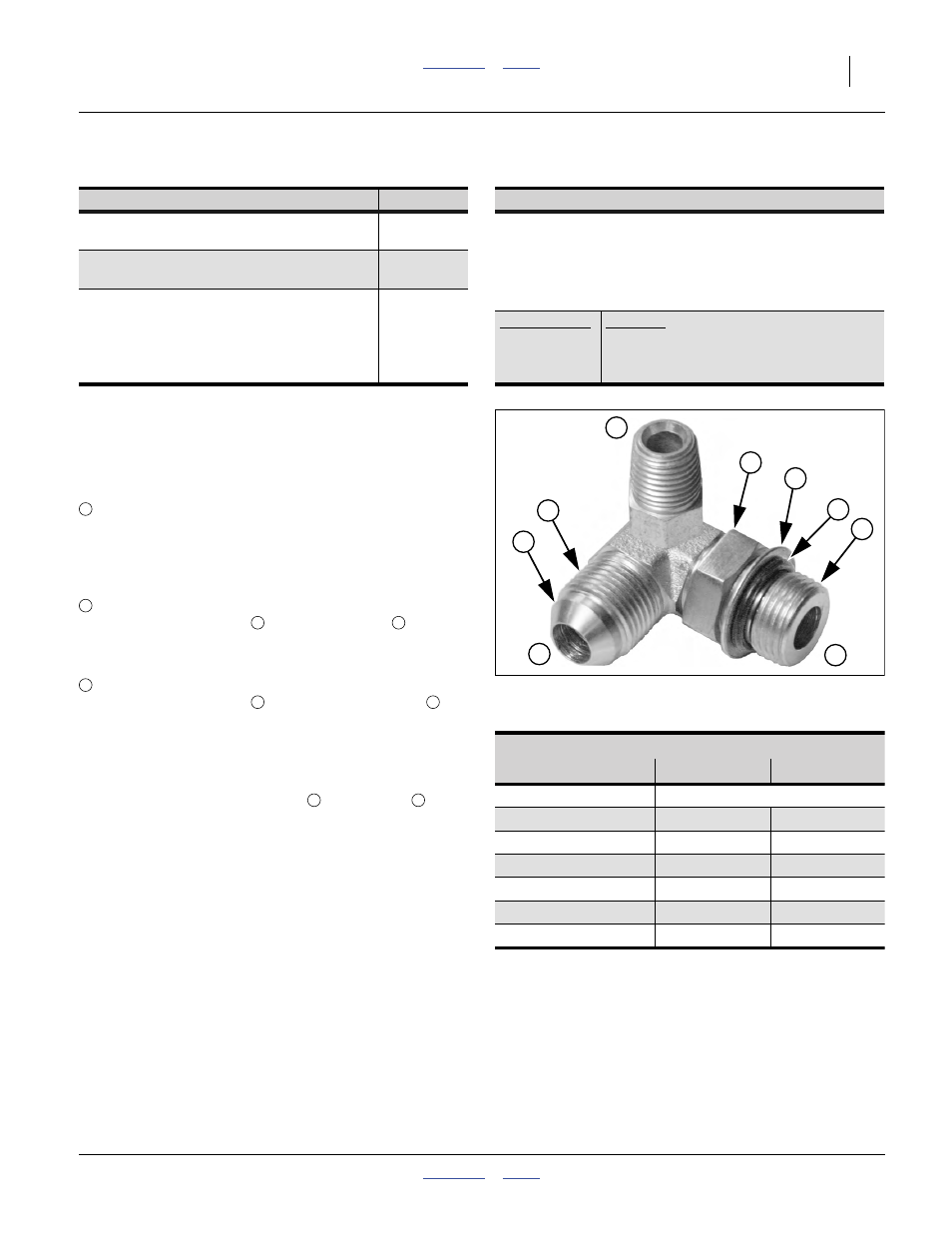

Refer to Figure 130 (a hypothetical fitting)
Leave any protective caps in place until immediately prior
to making a connection.
MetaData: End of Tire Inflation Chart
Tire Size
Inflation
Tire Warranty Information
265/70B16.5 (10-16.5) 8-Ply
SKID STEER NHS
414 kPa
60 psi
All tires are warranted by the original manufacturer of
the tire. Tire warranty information is found online at the
manufacturer’s web sites listed below. For assistance or
information, contact your nearest Authorized Farm Tire
Retailer.
15-19.5 12-Ply SKID STEER NHS
276 kPa
40 psi
13-5x6 4-Ply TURF SAVER
110 kPa
16 psi
Manufacturer
Firestone
Gleason
Titan
Web site
NPT - National Pipe Thread
Note tapered threads, no cone/flare, and no O-ring.
Apply liquid pipe sealant for hydraulic applications.
Do not use tape sealant, which can clog a filter and/or
plug an orifice.
JIC - Joint Industry Conference (SAE J514)
Note straight threads
and the 37
° cone on
“M” fittings (or 37
° flare on “F” fittings).
Use no sealants (tape or liquid) on JIC fittings.
ORB - O-Ring Boss (SAE J514)
Note straight threads
and elastomer O-Ring
.
Prior to installation, to prevent abrasion during tight-
ening, lubricate O-Ring with clean hydraulic fluid.
Use no sealants (tape or liquid) on ORB fittings.
ORB fittings that need orientation, such as the ell
depicted, also have a washer
and jam nut
(“adjustable thread port stud”). Back jam nut away
from washer. Thread fitting into receptacle until
O-Ring contacts seat. Unscrew fitting to desired
orientation. Tighten jam nut to torque specification.
2
5
4
9
8
7
5
3
Null4:
Null4:
Null4:
Figure 130
Hydraulic Connector ID
31282
Fittings Torque Values
Fitting
Ft-Lbs
N-m
1
⁄
4
NPT
1.5-3.0 turns past finger tight
9
⁄
16
JIC
18-20
24-27
9
⁄
16
ORB w/jam nut
12-16
16-22
9
⁄
16
ORB straight
18-24
24-32
3
⁄
4
JIC
27-39
37-53
3
⁄
4
ORB w/jam nut
20-30
27-41
3
⁄
4
ORB straight
27-43
37-58
1
1
2
4
5
3
5
7
8
9
