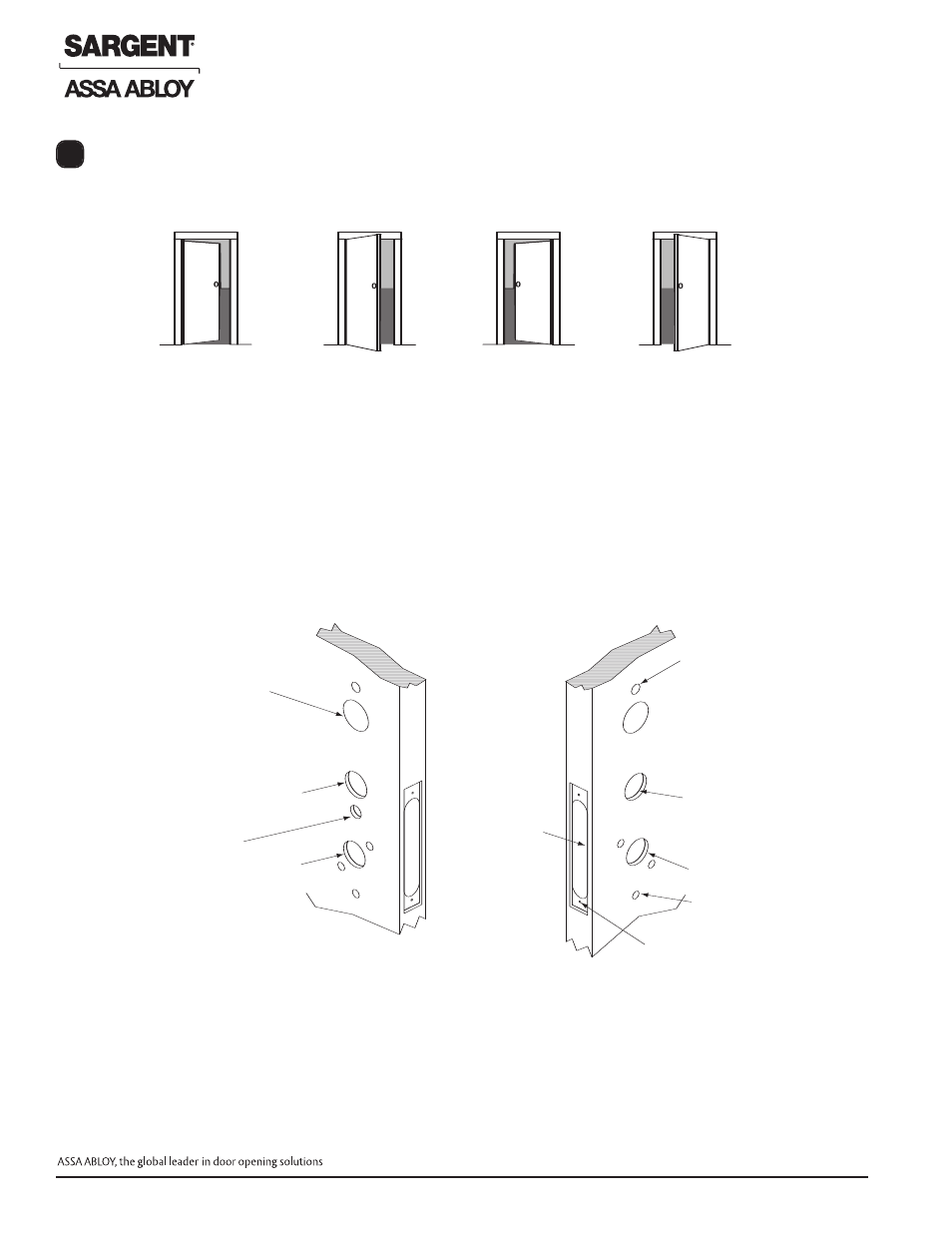

Page 6: 1 – door preparation

Profile Series v.G1.5 Mortise Dorm Lock

Left Hand
Hinges Left.
Open inward.
“LH”

Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB”

Right Hand
Hinges Right.
Open Inward.
“RH”

Right Hand
Reverse Bevel
Hinges Right.
Open Outward.
“RHRB”

View lock body from top and from the outside (as shown above)

Bevel

Latchbolt

Right Hand

Reverse Bevel

Left Hand

Reverse Bevel

Lock Body

Verify hand and bevel of door

Connector and Wires

Deadbolt

Guardbolt

Latchbolt

Front

Top

Lock w/cylinder

Override

(Shown)

End Cap

Installation Instructions

Verify Hand and Bevel of Door

Outside
of door

Inside
of door

Outside
cylinder hole

Lever handle hole

Mortised
area

Pre-drilled and /or
Tapped holes (2 places)

Thru-bolt hole

Inside
cylinder
hole

Lever
handle hole

Thumb turn
lever hole

Hole for ribbon
cable from
controller to
keypad

Before Starting

Prep door according to Instruction Sheet A7454 and appropriate template:

Wood door - A7457

Metal door - 4533

6.1 – Door Preparation

For installation assistance, contact SARGENT at 800-810-WIRE (9473)
