SARGENT Profile Series v.G1.5 Mortise Locks - Manual (Page 4)

11
11
27/28 29
5
4
3
7
2
16
17
15
14
8
9
15
31
21
22
20
20
19
25
23
24
26
21
22
26
16
1
17
30
13
13
12
24
33
Two 2 Pin Connectors
(Lever Monitor Switches)
Motor Harness with
6 Pin Connector
Profile Series v.G1.5 Mortise Dorm Lock
5

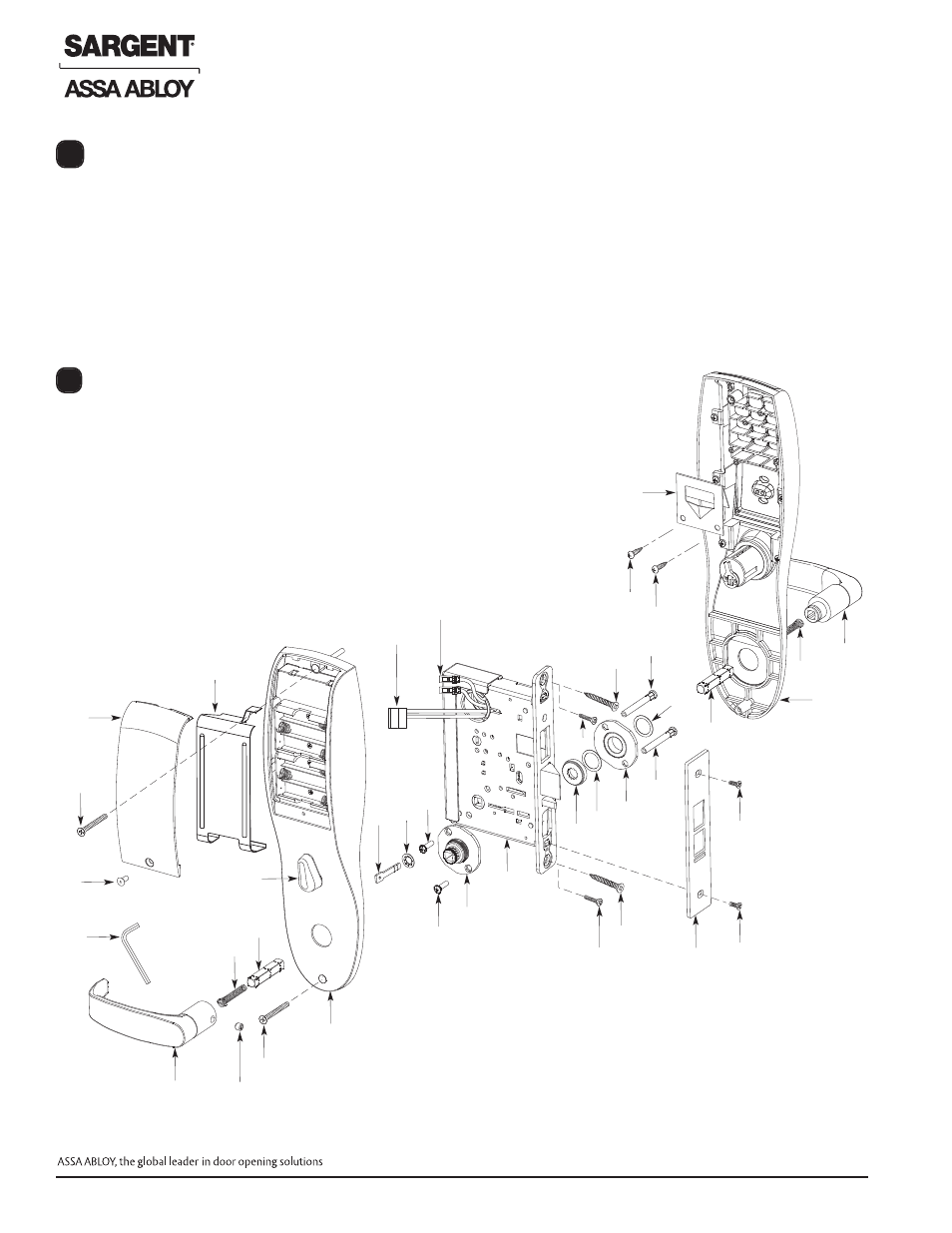

Parts Breakdown
• Low battery alert–4 chirps after code entry
• External remote “Request to Enter” connector
• Master, Emergency or Supervisory code will
unlock door when low battery has expired
• Programming done at the keypad (Except G1-PA)
or with a PDA using SofLink Plus software and a PC
• Deadbolt Switch and/or Inside Monitor Switch
unlocks outside lever
• All user types (except Panic & Lockout) override
deadbolt and serve as a "toggle" (Leaves lock in
locked or unlocked state)
• Entry of three wrong User Codes disables all codes
for ten seconds. Yellow LED on solid.
• Last 2000 transactions can be output to a PC via a
PDA and SofLink™ Plus software
4
2
