SARGENT Profile Series v.G1.5 Mortise Locks User Manual
Page 10
Profile Series v.G1.5 Mortise Dorm Lock

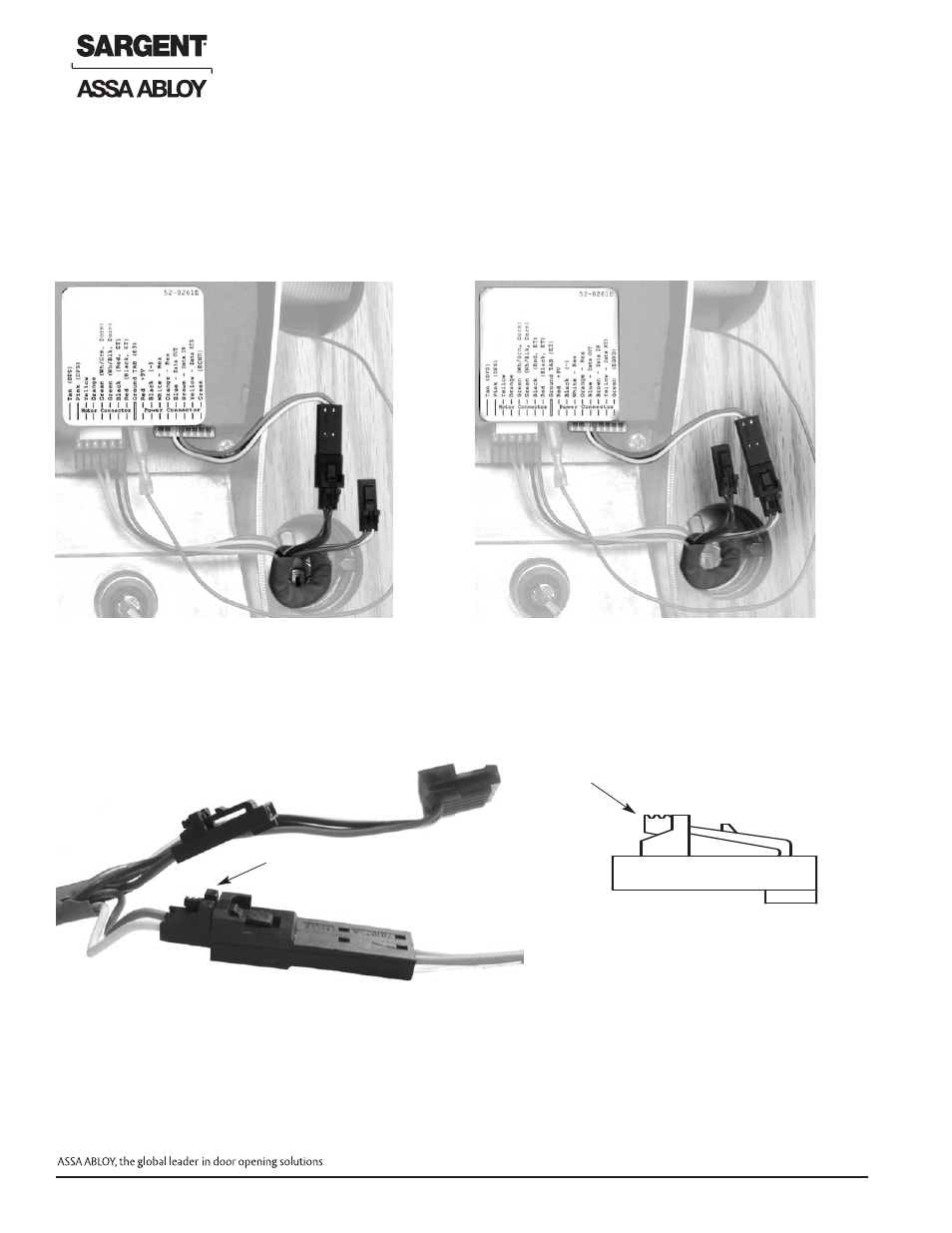

6.7 – Installation of Motor Harness and Inside Lever Monitor Switch
Note: To disconnect the two-pin connectors, press tab and pull connectors apart gently
LH/LHR Lock Configuration
- For LH/LHR lock: Connect lock's two-pin
connector with blue & brown wires to adapter
harness (as shown in Fig. 1)
RH/RHR Lock Configuration
- For RH/RHR lock: Connect lock's two-pin
connector with white & green wires to adapter
harness (as shown in Fig. 2)
2 Pin Connector
Fig. 1
Fig. 2
Tab
Tab
8
© SARGENT Manufacturing Company 2006, 2007
For installation assistance, contact SARGENT at 800-810-WIRE (9473)
