FABRICATOR 211i
INSTALLATION/SETUP
INSTALLATION/SETUP
3-16
Manual 0-5157
3.11 Attaching the TWECO Fusion 220A MIG Gun
Fit the Fusion MIG gun to the power source by pushing the MIG gun connector into the MIG gun adapter and screwing
the plastic nut clockwise to secure the MIG gun to the MIG gun adapter.
Connect the 8 pin plug by aligning he keyway then inserting the 8 pin plug into the 8 pin socket and rotate threaded
collar fully clockwise to lock the plug into position.
Wire Drive Tension Knob
Pressure Arm
Outlet Guide
Inlet Guide
Art # A-11242_AB
MIG Gun Connector
Locking Screw
8 pin plug
MIG Gun Adapter
MIG Gun Connector
8 pin socket

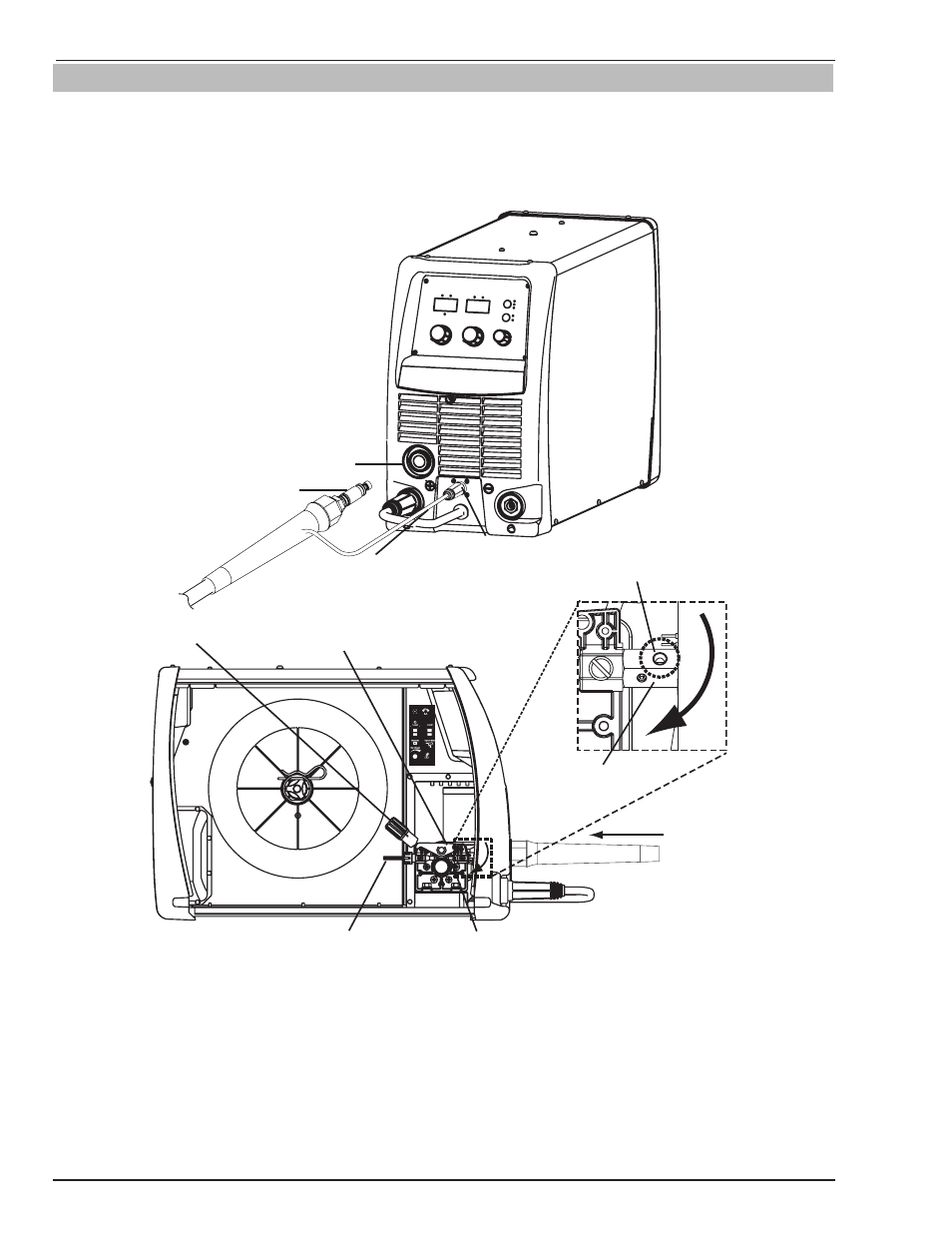

Figure 3-10: Attaching MIG Gun
