ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
Manual 0-5264 PARTS LISTS 6-7

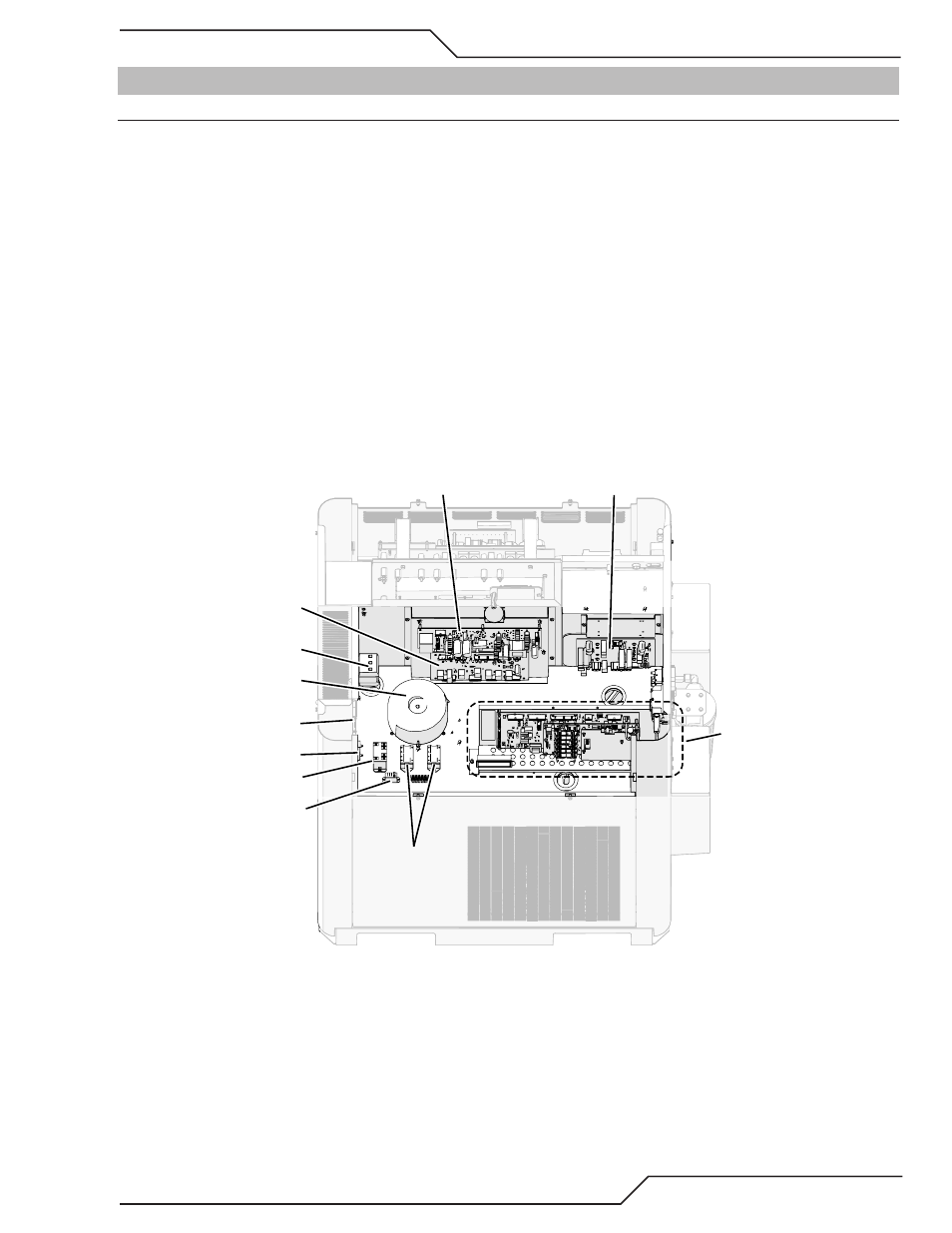

6.08 Power Supply Replacement Parts - Upper Right Side
Item # Qty Description Ref. Des. Catalog #
1 1 System Bias PCB 9-9253
2 1 Pilot PCB 9-9250
3 1 CCM Assembly 9-7335
4 1 Relays, Pump / Fan MC3 / MC2 9-7314
5 1 Relay, Inrush Control K1 9-7336
6 1 Relay, Inrush MC1 9-7337
7 1 Resistor, Inrush R2 9-7376
8 1 Display PCB 9-9252
9 1 Auxiliary Transformer T1 9-7315
10 1 On/Off Switch Breaker CB1 9-7316
11 1 Relay and Interface PCB 9-9251
1 2
3
4
5
6
7
9
10
Art # A-11546_AB
11
8
