ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
A-4 APPENDIX Manual 0-5264

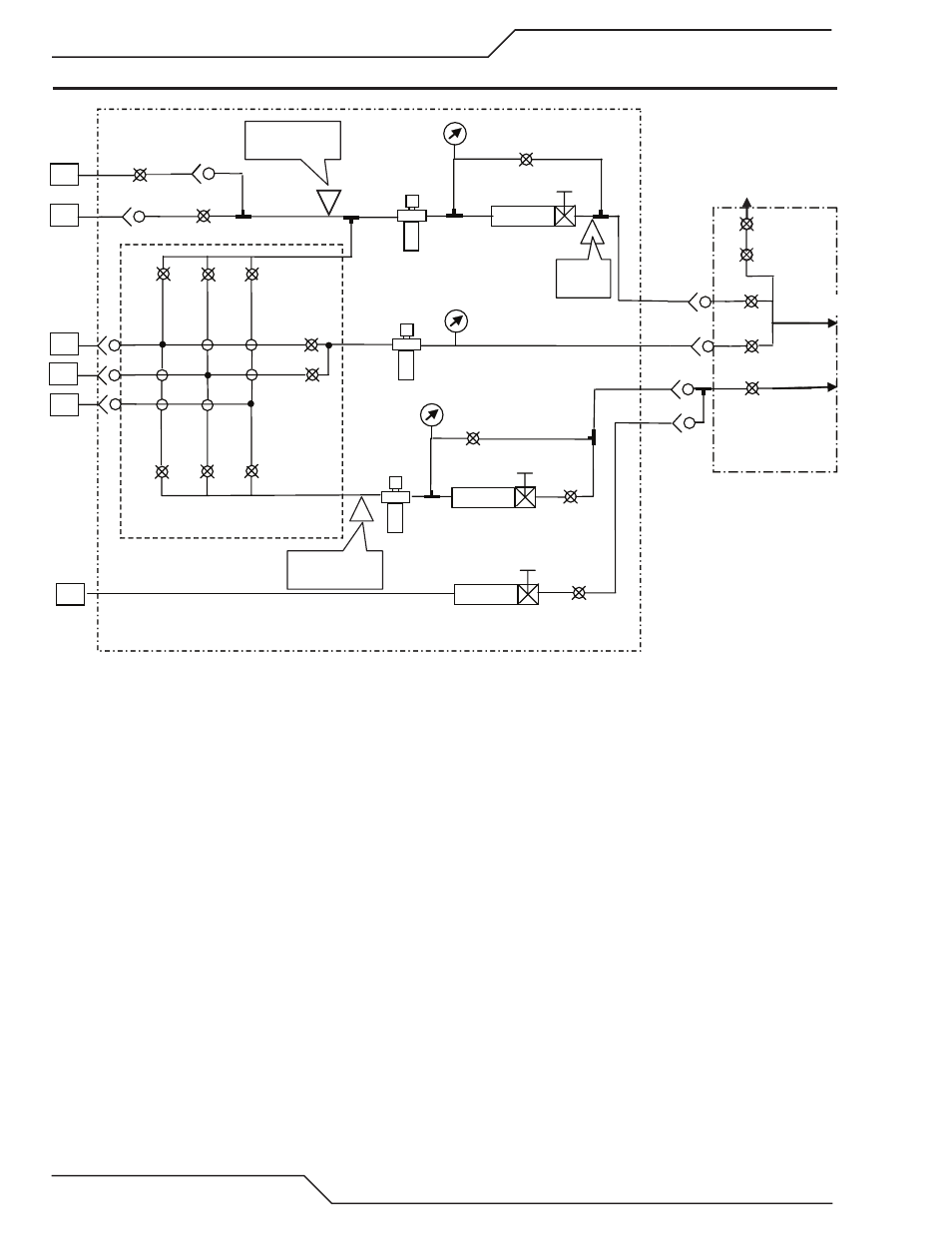

APPENDIX 3: Gas Control Module Plumbing Diagram
Art # A-07577_AB
AIR
N
2
O
2
H35
F5
SOL1 SOL2 SOL3
SOL8 SOL9 SOL10
SOL6
SOL7
SOL11
SOL12
SOL13
GAS MANIFOLD
SOL5
SHIELD
PLASMA
PREFLOW
TVA &
XTL -TVA
WATER H
2
O
Pressure
Sensor
SOL4
SOL17
SOL14
SOL15
SOL16
New Plasma Inlet
Pressure Sensor
New Shield Inlet
Pressure Sensor
SOL18
SOL19
PLASMA
SHIELD
Atmosphere
SOL 18 & 19
normally open.
Operate in parallel
with normally
closed SOL 14 &
15.
SOL 18 & 19
in XTL -TVA
only.
