Manual 0-2529 3 - 33 OPERATION
B. Automated Cutting Speeds
Mild Steel
Air Plasma / Air Secondary
General purpose cutting
Plasma @ 60 psi (4.1 bar)
Secondary @ 60 psi (4.1 bar)
Oxygen Plasma / Air Secondary
High quality, high speed, improved weld-ability
Plasma @ 60 psi (4.1 bar)
Secondary @ 60 psi (4.1 bar)
NOTES:
1. Kerf widths are listed as the width of the cut at the bottom of the plate.
2. Speed, kerf width, voltage and standoff data represent realistic starting points. Adjustments may be
required to obtain optimum results.
3. The copper shield cup (9-5790) is recommended for general machine cutting. When the clear-the-plate
function of a height control is required, then the short copper shield cup (9-5801) is recommended.

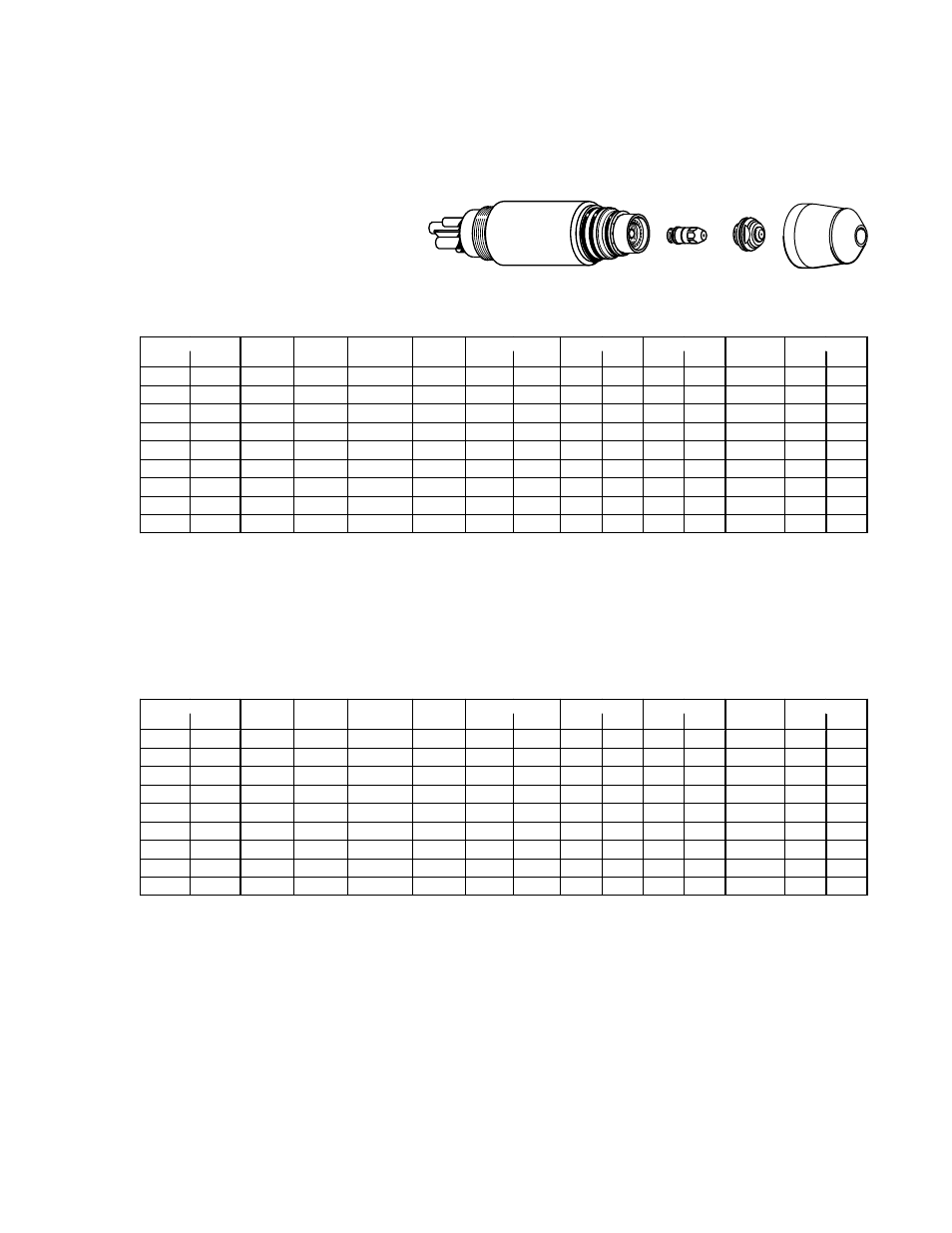

Electrode Tip Shield Cup PCM-150 Torch Head
A-03448
Material Thickness Tip Electrode Output Volts Amperage Speed (Per Minute) Standoff Pierce Height Pierce
inches mm Cat # Cat # vdc Amps inches meters inches mm inches mm Delay (Sec) inches mm
16 ga 1.5 9-5747 9-5749 100 80 300 7.62 0.125 3.2 0.187 4.7 0.1 0.035 0.9
14 ga 1.9 9-5746 9-5749 110 150 300 7.62 0.187 4.7 0.187 4.7 0.1 0.055 1.4
10 ga 3.4 9-5746 9-5749 115 150 250 6.35 0.187 4.7 0.187 4.7 0.1 0.055 1.4
7 ga 4.6 9-5746 9-5749 120 150 225 5.72 0.312 7.9 0.375 9.5 0.2 0.055 1.4
1/4 6.4 9-5746 9-5749 125 150 185 4.70 0.312 7.9 0.375 9.5 0.2 0.055 1.4
3/8 9.5 9-5746 9-5749 130 150 130 3.30 0.312 7.9 0.375 9.5 0.4 0.055 1.4
1/2 12.7 9-5746 9-5749 135 150 95 2.41 0.312 7.9 0.375 9.5 0.6 0.055 1.4
3/4 19.1 9-5746 9-5749 145 150 50 1.27 0.312 7.9 0.500 12.7 0.8 0.065 1.7
1 25.4 9-5746 9-5749 150 150 25 0.64 0.312 7.9 0.500 12.7 1.5 0.065 1.7
Kerf Width
Material Thickness Tip Electrode Output Volts Amperage Speed (Per Minute) Standoff Pierce Height Pierce
inches mm Cat # Cat # vdc Amps inches meters inches mm inches mm Delay (Sec) inches mm
16 ga 1.5 9-5752 9-5760 100 80 300 7.62 0.125 3.2 0.187 4.7 0.1 0.035 0.9
14 ga 1.9 9-5752 9-5760 110 150 325 8.26 0.187 4.7 0.187 4.7 0.1 0.055 1.4
10 ga 3.4 9-5752 9-5760 115 150 275 6.99 0.187 4.7 0.187 4.7 0.1 0.055 1.4
7 ga 4.6 9-5752 9-5760 120 150 225 5.72 0.312 7.9 0.375 9.5 0.2 0.055 1.4
1/4 6.4 9-5752 9-5760 125 150 170 4.32 0.312 7.9 0.375 9.5 0.2 0.055 1.4
3/8 9.5 9-5752 9-5760 130 150 105 2.67 0.312 7.9 0.375 9.5 0.4 0.055 1.4
1/2 12.7 9-5752 9-5760 135 150 90 2.29 0.312 7.9 0.375 9.5 0.6 0.055 1.4
3/4 19.1 9-5752 9-5760 145 150 45 1.14 0.312 7.9 0.500 12.7 0.8 0.065 1.7
1 25.4 9-5752 9-5760 150 150 30 0.76 0.312 7.9 0.500 12.7 1.5 0.065 1.7
Kerf Width
