INTRODUCTION & DESCRIPTION

SECTION 1: INTRODUCTION & DESCRIPTION

1.1 SYSTEM DESCRIPTION

• PAK 15XC 150 Amp Power Supply

with Running Gear and Handle

• PCH-150 90° or 70° Hand Torch

(or) PCM-150 Machine Torch with Mounting Assembly

• 25 ft (7.6 m) or 50 ft (15.2 m) Torch Leads

• PCH/M-150 Spare Parts Kit

• 25 ft (7.6 m) Work Cable and Clamp

• Running Gear and Handle

• Air Line Filter Assembly (or) High Pressure Regulators

System options and accessories are listed on page 1-5.

NOTE

The Merlin PAK 15XC

System Includes:

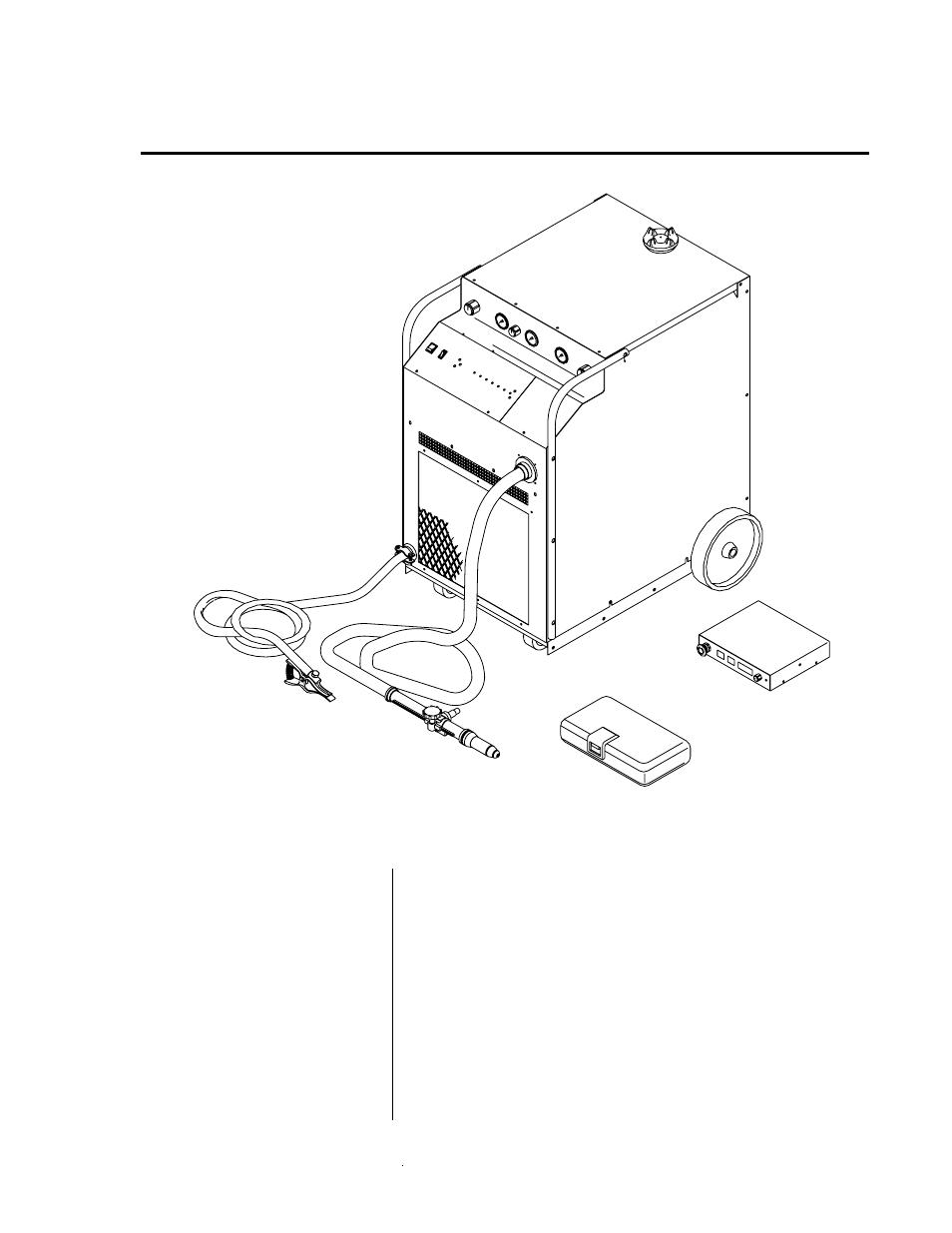

Figure 1-A The Merlin PAK 15XC Plasma Arc Cutting/Gouging System

A-00875

PAK 15XC Power Supply

Work Cable

Torch Leads

PCM-150 Machine Torch

Spare Parts Kit

Remote Control Panel
