Adjust

Zone

Monitor

°F

View

°F

Time

Schd

Misc

°F

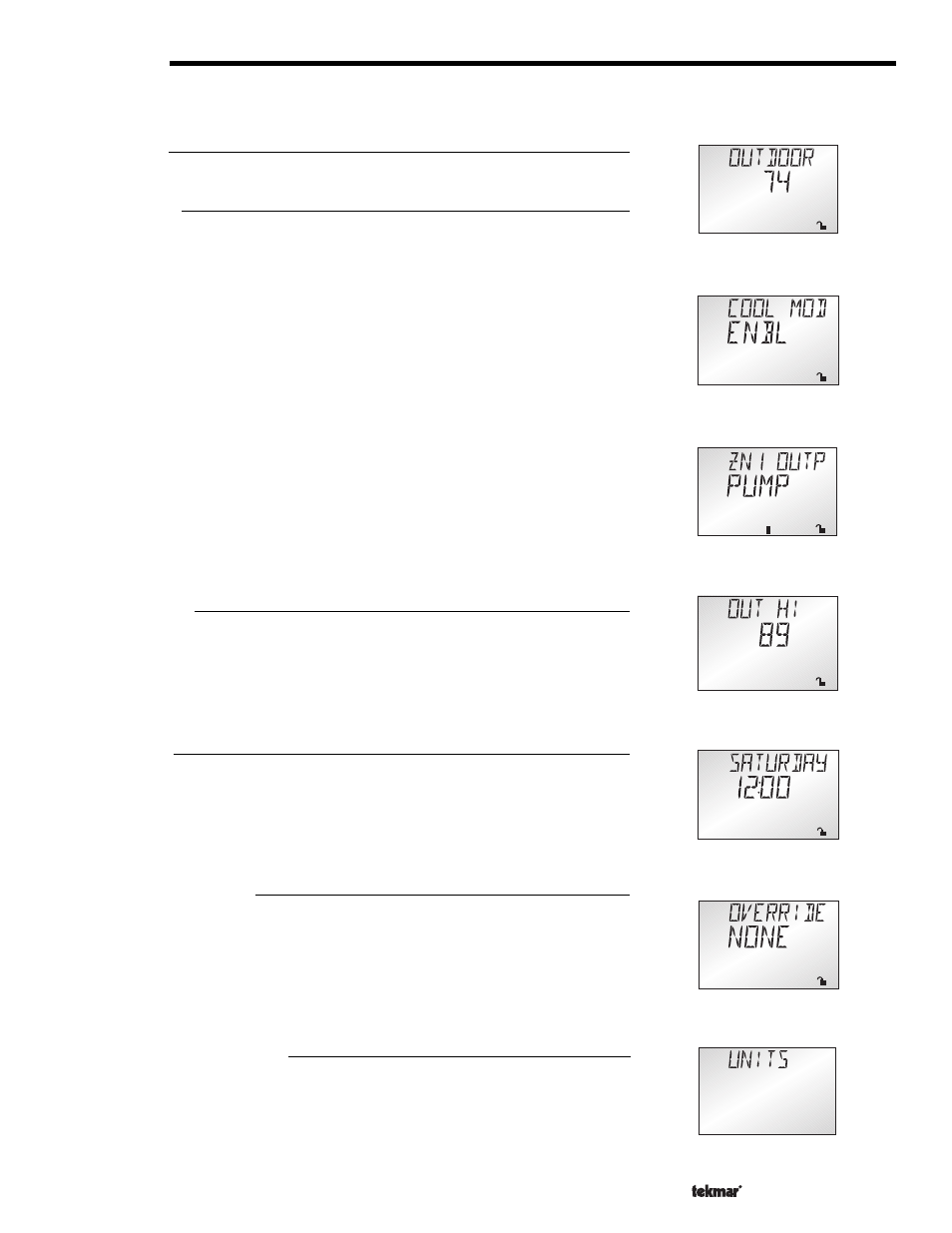

MENU FIELD

The 369 has a number of menus used to monitor system status and adjust settings in the control. The current menu will be displayed
in the left hand side of the display.

View Menu

The View menu is used to view the outdoor temperature and zone temperatures.

Adjust Menu

There are seven separate menus used to make adjustments to the control settings and
the zone settings. There is an Adjust menu for the control, and an Adjust menu for
each zone.

Control Adjust Menu

The Control Adjust menu is used to make adjustments to the control settings. The
control settings affect every zone. To access the control settings, select the Adjust
menu by using the

Menu button. Adjust will be displayed in the left hand side of

the display.

Zone Adjust Menu

The Zone Adjust menu is used to make adjustments to the zone settings. There is a
Zone Adjust menu for each zone that an RTU or indoor sensor is connected to. To
access the zone settings for a particular zone, select the Zone Adjust menu for that
zone by using the

Menu button. Adjust will be displayed in the left hand side of the

display, and

Zone followed by the zone number will be displayed in the bottom of

the display.

Note: The Zone Adjust menu in the control is different than the Adjust menu in a
display RTU.

Monitor Menu

The Monitor menu is used to monitor the system over a period of time. It is possible to
track system pump and zone running hours, and high and low zone temperatures.

Time Menu

The Time menu is used for setback purposes, and displays the time of day and the day
of the week. In order to access the Time menu, the

Setback / None DIP switch must be

in the

Setback position. Refer to the Settings section on how to set the clock.

Schedule (Schd) Menu

The Schd menu is used to set the control schedules. In order to access the control
schedules in the Schd menu, the

Setback / None DIP switch must be in the Setback

position. Schedule overrides are also available in the Schd menu. Refer to the Settings
section on how to set a schedule.

Miscellaneous (Misc) Menu

The Misc menu is used to select units, access levels, and backlite operation.

- 01/09
