tekmar 369 Zone Control Installation - Manual (Page 26)

Copyright © D 369 -10/00 26 of 32

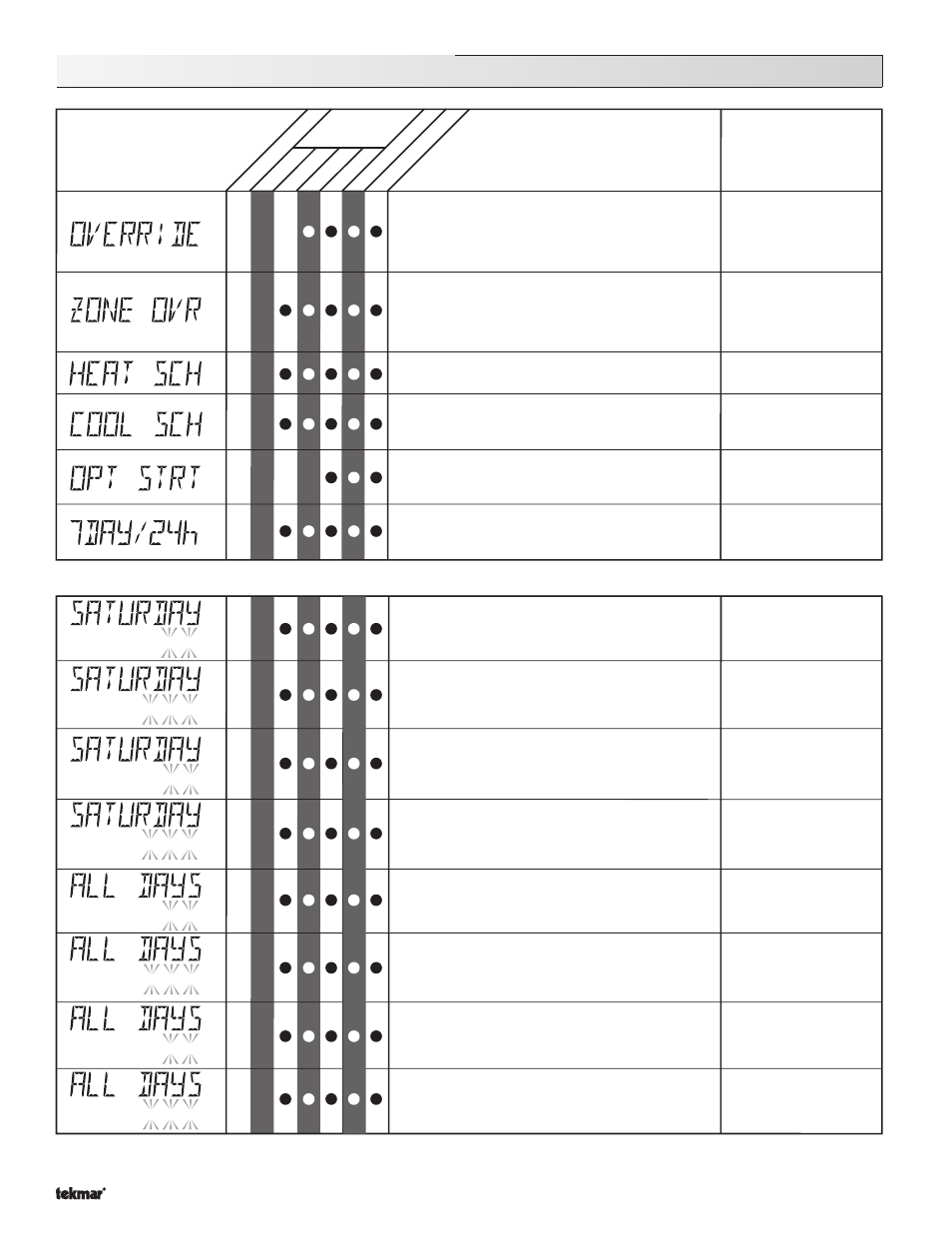

369 RTU Schd (Schedule) Menu (1 of 1)
USER
NONE, TMPY Occ Ovr,
PERM Occ Ovr, TMPY
UnOcc Ovr, PERM
UnOcc Ovr, AWAY Ovr
Default = NONE
The type of setback override that is in effect for all
schedules.
DIP switch = Setback
AWAY is available even if DIP switch ≠ Setback
The type of setback override that is in effect for
this zone’s schedule.
Note: NONE, TMPY Occ Ovr
and PERM UnOcc Ovr is available in the LTD
access level.
DIP switch = Setback
NONE, TMPY Occ Ovr,
PERM Occ Ovr, TMPY
UnOcc Ovr, PERM
UnOcc Ovr, AWAY Ovr
Default = NONE
The schedule this zone uses for heating.
DIP switch = Setback
NONE, ZONE, CTRL
Default = NONE
The schedule that is to be used for the cooling system.
COOL MOD ≠ NONE, RTU 6 and
DIP switch = Setback
NONE, ZONE, CTRL
Default = NONE
Enables or disables the Optimum Start / Stop
feature for this zone.
DIP switch = Setback (Any air sensor on)
NONE, STRT, STOP,
BOTH
Default = BOTH
7DAY24hr
Default = 7DAY
Selects the same schedule for each day of the week,
or a separate schedule for each day of the week.
DIP switch = Setback
If the 7DAY/24h adjustment is set to 7DAY, the schedule listed below for SATURDAY is also available for SUNDAY, MONDAY, TUESDAY,
WEDNESDAY, THURSDAY and FRIDAY.
For an example on how to set a schedule, refer to the Example given in the Schedule menu of the 369.
Note: To skip an event during a schedule, select the “Null” event. Use the arrow keys to select the “Time” between 11:50 PM and
12:00 AM. “– –:– –” is displayed indicating that the event will not occur during the schedule.
C
C
C
C
C
C
– –:– – to 11:50 PM or
– –:– – to 23:50
Default = – –:– –
Time when the first occupied period begins every day.
7DAY/24h = 24hr
DIP switch = Setback
– –:– – to 11:50 PM or
– –:– – to 23:50
Default = – –:– –
Time when the first unoccupied period begins every
day.
7DAY/24h = 24hr
DIP switch = Setback
– –:– – to 11:50 PM or
– –:– – to 23:50
Default = – –:– –
Time when the second occupied period begins
every day.
7DAY/24h = 24hr
DIP switch = Setback
– –:– – to 11:50 PM or
– –:– – to 23:50
Default = – –:– –
Time when the second unoccupied period begins
every day.
7DAY/24h = 24hr
DIP switch = Setback
C
C
C
C
– –:– – to 11:50 PM or
– –:– – to 23:50
Default = – –:– –
Time when the first occupied period begins on Saturday.
7DAY/24h = 7DAY
DIP switch = Setback
– –:– – to 11:50 PM or
– –:– – to 23:50
Default = – –:– –
Time when the first unoccupied period begins
on Saturday.
7DAY/24h = 7DAY
DIP switch = Setback
– –:– – to 11:50 PM or
– –:– – to 23:50
Default = – –:– –
Time when the second occupied period begins
on Saturday.
7DAY/24h = 7DAY
DIP switch = Setback
– –:– – to 11:50 PM or
– –:– – to 23:50
Default = – –:– –
Time when the second unoccupied period begins
on Saturday.
7DAY/24h = 7DAY
DIP switch = Setback
C
C
C
C
Section LT
D
INST ADV
Range
Access
Level
Description Item Field
R
TU 062
R
TU 063
Occ 1
Occ 2
UnOcc 2
Occ 1
UnOcc 1
Occ 2
UnOcc 2
UnOcc 1
- 01/09
- 01/09
