Outdoor Design Setting in Adjust Menu
The outdoor design temperature is typically the coldest
outdoor air temperature of the year. This temperature is
used when doing the heat loss calculations for the building
and is used to size the heating system equipment. If a cold
outdoor design temperature is selected, the supply water
temperature rises gradually as the outdoor temperature
drops. If a warm outdoor design temperature is selected,
the supply water temperature rises rapidly as the outdoor
temperature drops.
Boiler Indoor Setting in Adjust Menu
The boiler indoor design temperature is the indoor
temperature the heating designer chose while calculating the
heat loss for the boiler water heated zones. This temperature
is typically 70°F (21.0°C). This setting establishes the
beginning of the boiler characterized heating curve.
Boiler Design Setting in Adjust Menu
The boiler design supply temperature is the boiler water
temperature required to heat the zones at the outdoor design
temperature, or on the typical coldest day of the year.
(Default automatically changes based on terminal unit
setting)
Warm Weather Shut Down (WWSD) Setting in Adjust
Menu
Warm Weather Shut Down disables the heating system when
the outdoor air temperature rises above this programmable
setting. When the control enters into WWSD, the LCD will
indicate this in the status field. WWSD is only available
when the DIP switch = Demands. The boilers will operate
when a Domestic Hot Water (DHW) demand or a Setpoint
Demand is present.
Boiler Operation Section C
The 275 is able to operate up to four modulating or on-off
boilers as a heat source. For proper operation of the boilers,
the 275 must be the only control that determines when a
boiler is to fire.
*Important note: The boiler operator, or aquastat, remains
in the burner circuit and acts as a secondary upper limit
on the boiler temperature. The boiler aquastat temperature
setting must be adjusted above the 275’s boiler maximum
setting in order to prevent short cycling of the burner.
Boiler Target Temperature
The boiler target temperature is determined by connected tN4
devices or by a Boiler, DHW or Setpoint demand received
by the control. An Energy Management System (EMS) can
also give a boiler target. The tN4 devices determine the
highest water temperature required and then request this
temperature on the tN4 boiler bus. The temperature request
creates a Boiler Demand and this is indicated on the display.
A DHW demand and a Setpoint demand have temperature
settings to which the boilers are operated to meet and are
able to override the tN4 bus temperature if required. The
control displays the temperature that it is currently trying to
maintain as the boiler supply temperature in the View menu.
If the control does not presently have a requirement for heat,
it does not show a boiler target temperature. Instead, “– – –”
is displayed in the LCD.

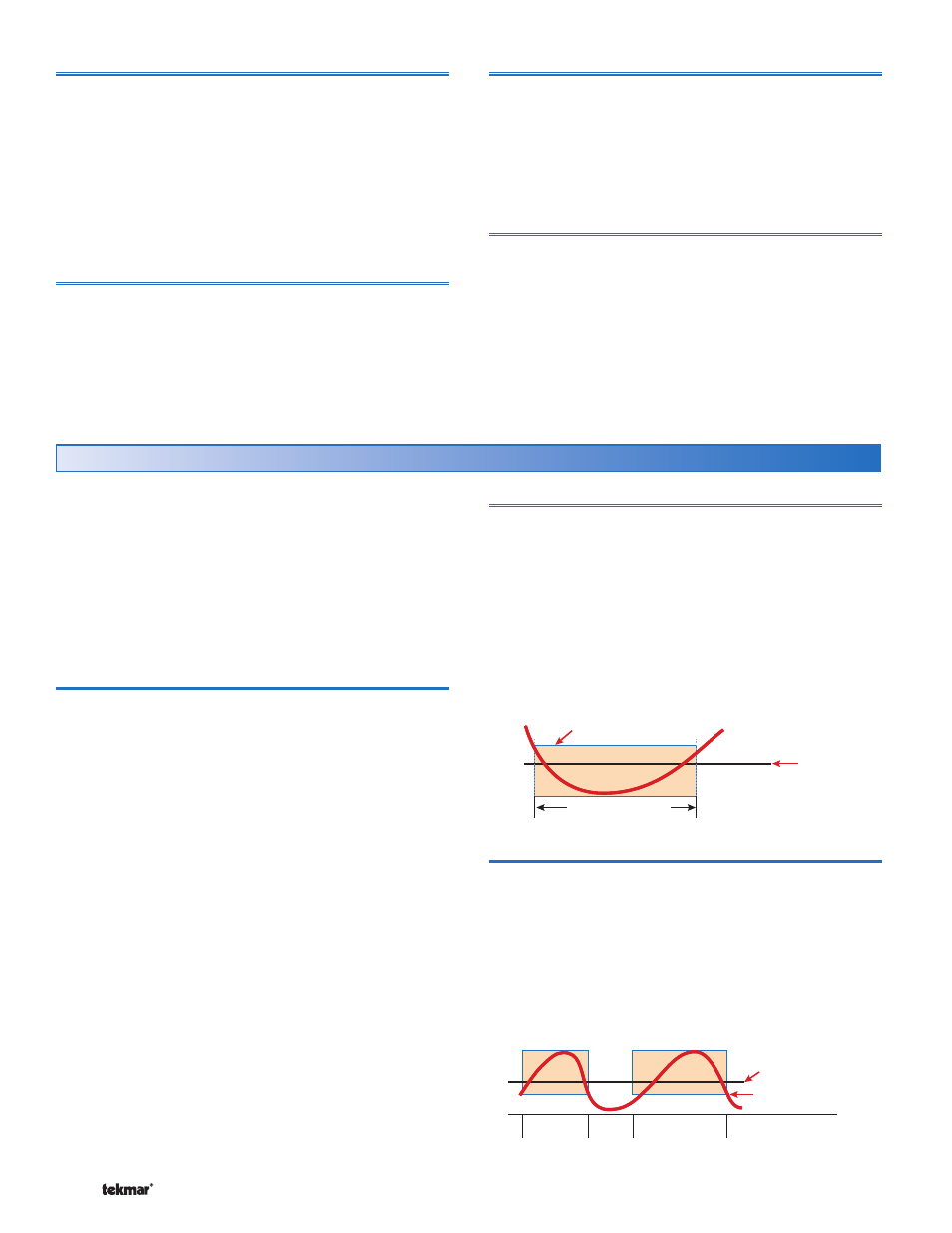

Boiler Minimum Setting in Adjust Menu
The boiler minimum is the lowest temperature that the
control is allowed to use as a boiler target temperature.
During mild conditions, if the control calculates a boiler
target temperature that is below the boiler minimum setting,
the boiler target temperature is adjusted to at least the
boiler minimum setting. The MIN segment is displayed in
the LCD while viewing the boiler supply or target and when
the boiler target is boiler minimum and the boiler supply is
less than boiler minimum plus 5°F (2.5°C). Set the Boiler
Minimum setting to the boiler manufacturer’s recommended
temperature.
Boil MIN
MIN segment on
Boil MIN + 5°F (2.5°C)
Boiler Differential
Boil
Water Tempe
rat
ur
e
Boil
Water Tempe
rat
ur
e
Boil
Water Tempe
rat
ur
e
Boiler Maximum Setting in Adjust Menu
The boiler maximum is the highest temperature that the
control is allowed to use as a boiler target temperature.
The MAX segment is displayed in the LCD while viewing
the boiler supply or target and when the boiler target is
boiler maximum and the boiler supply is greater than boiler
maximum minus 5°F (2.5°C). Set the boiler maximum
setting below the boiler operator or aquastat temperature.
At no time does the control operate the boiler above 248°F
(120°C).
Boil MAX
Boil MAX – 5°F (2.5°C)
Boiler Differential
MAX
segment
on
MAX
segment
on
B
o
il
W
a ter Te m
pe
ra
tu
re B
o
il
W
a ter Te m
pe
ra
tu
re B
o
il
W
a ter Te m
pe
ra
tu
re
