Display Menus
View Menu (1 of 2)

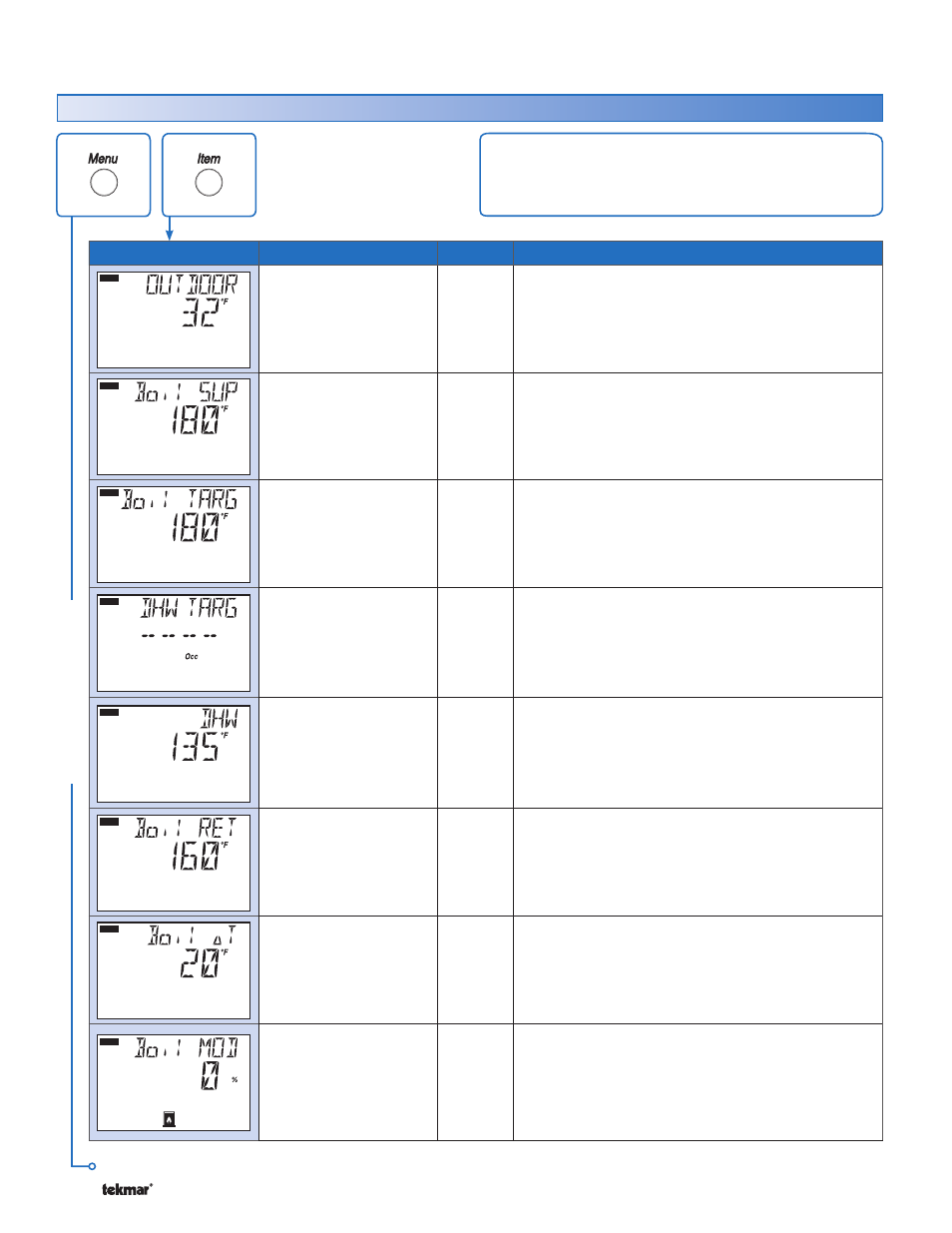

Item Field Range Access Description
VIEW
-76 to 149°F
(-60.0 to 65.0°C)
USER
INST
ADV
OUTDOOR
Current outdoor air temperature as measured by
the outdoor sensor.
Note: This item is only available when the EMS/
Demands DIP is set to Demands.
VIEW
-22 to 266°F
(-30.0 to 130.0°C)
USER
INST
ADV
BOILER SUPPLY
Current boiler supply water temperature as
measured by the boiler sensor.
Note: This item is not available when DHW Mode is 6.
VIEW
---, 35 to 230°F
(---, 1.5 to 110.0°C)
ADV
BOILER TARGET SECTION C
The boiler target is the temperature the control
is currently trying to maintain at the boiler supply
sensor. “---” is displayed when no heat is required.
Note: This item is not available when DHW Mode is 6.
VIEW
---, 35 to 230°F
(---, 1.5 to 110.0°C)
ADV
DHW EXCHANGE TARGET SECTION I
The DHW exchange target is the temperature the
control is currently trying to maintain at the DHW
Exchange Supply Sensor. “---” is displayed when
no heat is required.
Note: This item is only available when DHW Mode is 5.
VIEW
-22 to 266°F
(-30.0 to 130.0°C)
USER
INST
ADV
DHW SECTION I
Current DHW tank temperature as measured by the
DHW sensor.
Note: This item is only available if DHW Sensor
is On and Pump Sequencing DIP is Off, or DHW
Mode is 6.
VIEW
-22 to 266°F
(-30.0 to 130.0°C)
ADV
BOILER RETURN
Current boiler return water temperature as measured
by the boiler return sensor.
Note: This item is only available if DHW Sensor is Off
and a boiler return sensor is present.
VIEW
0 to 252°F
(-18.0 to 122.5°C)
ADV
BOILER ΔT
Current temperature difference between the boiler
supply and boiler return sensors.
Note: This item is only available if DHW
Sensor is Off and a boiler return sensor is present.
VIEW
1
0 to 100 %
or
1 to 4
ADV
BOILER 1 MODULATION / STG SECTION D
Current percent modulation of the boiler 1 burner.
If the BTC I / Off DIP is set to BTC I, the BTC I
number of stages is displayed.
Note: This item is only available when boiler 1 is
set to Auto.
The View menu items display the current operating
temperatures and status information of the system.
VIEW MENU
Continued on next page.
