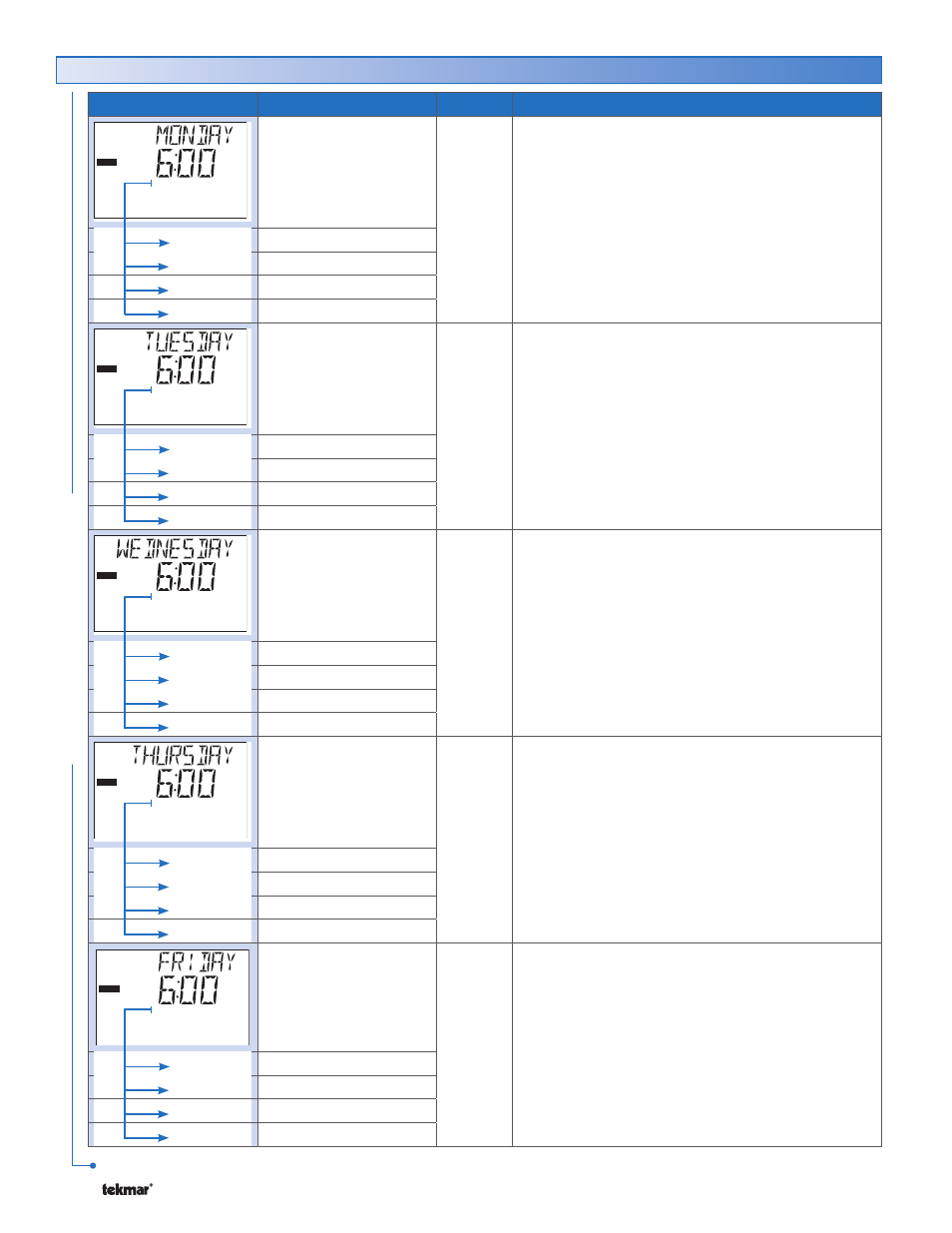

Item Field Range Access Description
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
MONDAY SECTION N
Select the times for the scheduled events.
Note: This item is only available when the Setback
/ Off DIP is set to On and the Heat Schedule is set
to Control (CTRL) or Master (MST) 1 to 4 and the
Schedule Type is set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
TUESDAY SECTION N
Select the times for the scheduled events.
Note: This item is only available when the Setback
/ Off DIP is set to On and the Heat Schedule is set
to Control (CTRL) or Master (MST) 1 to 4 and the
Schedule Type is set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
WEDNESDAY SECTION N
Select the times for the scheduled events.
Note: This item is only available when the Setback
/ Off DIP is set to On and the Heat Schedule is set
to Control (CTRL) or Master (MST) 1 to 4 and the
Schedule Type is set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
THURSDAY SECTION N
Select the times for the scheduled events.
Note: This item is only available when the Setback
/ Off DIP is set to On and the Heat Schedule is set
to Control (CTRL) or Master (MST) 1 to 4 and the
Schedule Type is set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
FRIDAY SECTION N
Select the times for the scheduled events.
Note: This item is only available when the Setback
/ Off DIP is set to On and the Heat Schedule is set
to Control (CTRL) or Master (MST) 1 to 4 and the
Schedule Type is set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
Schedule Menu (3 of 3)
SC
HEDULE MENU
After the last item, the control returns to the first item in the menu.
