SoundOff Signal Photon Power Supply User Manual
Photon strobe power supply, Warning

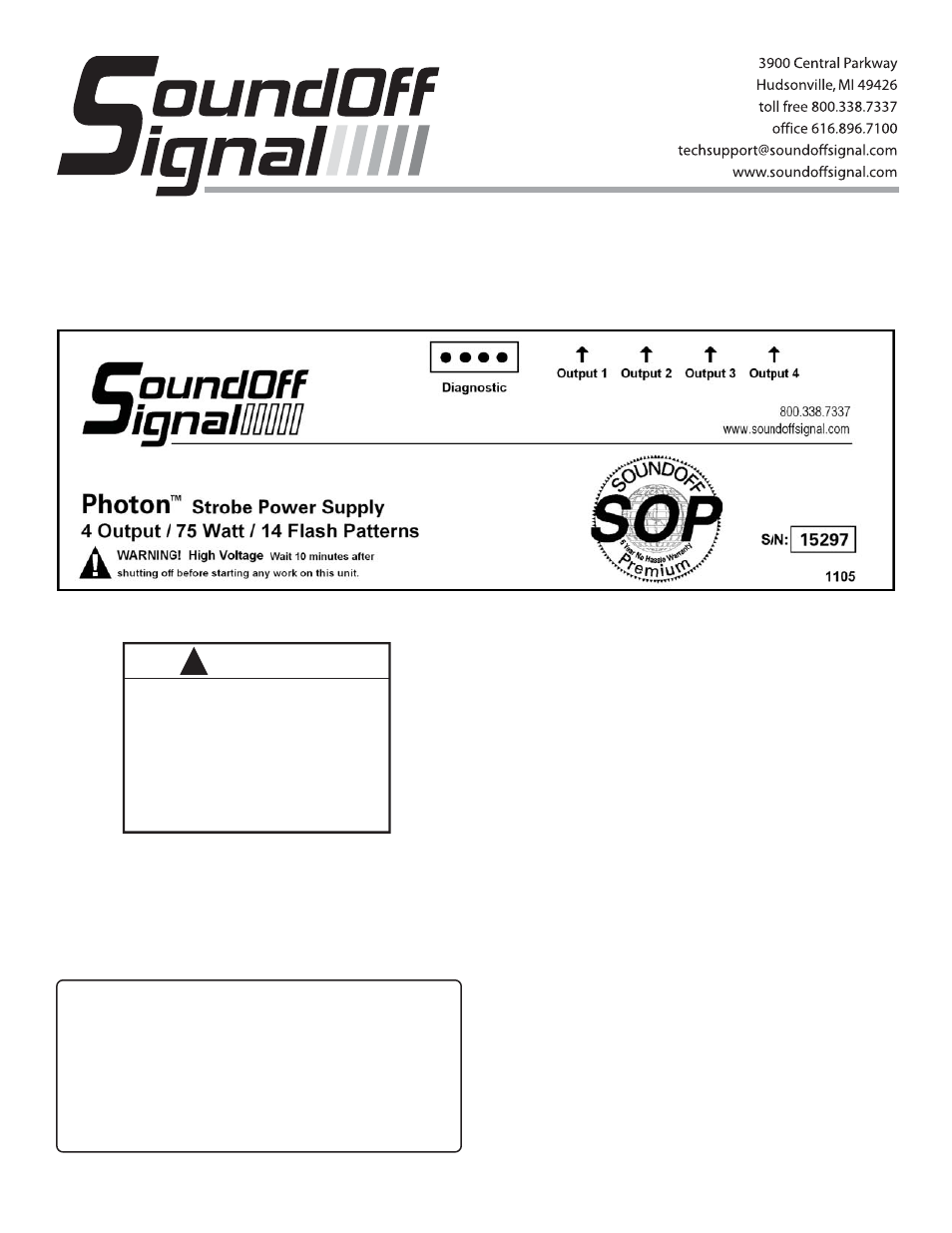

PHOTON STROBE POWER SUPPLY
MODEL # : ETPN475 / ETPN475WP
INSTALLATION
1.
First, install the Strobe Power Supply in a protected loca-
tion using the power supply itself as a template. THE POWER
SUPPLY MUST BE MOUNTED TO A METAL SURFACE.
Make sure all connectors are easily accessible.
2.
Install the strobe light heads in the preferred locations.
3.
String the 3 conductor cables between the lights and the
power supply. Make sure the cable is secure along the cho-
sen routing inside the vehicle to prevent it from damage by
chafing or binding. Be sure to keep the cable away from en-
gine hot spots.
WARNING
Strobe tube cables with 500V insulation resistance
must be used. Automotive cable is not suitable and
should not be used.
NOTE
When routing the cable, make sure the end with the
closed tip terminals (male pins) is toward the power
supply and the end with the open tip terminals (female
pins) is toward the light head.
4.
Insert the pins on each end of the cables into the connec-
tors. Each end of these cables has a factory crimped pin on
each of the three wires, see Figure A.
WARNING
PERSONAL INJURY HAZARD
Mounting this device in an improper location may
impair the designed safety characteristics of
the vehicle in the event of a collision.
Consult the vehicle manufacturer before
installing this or any other aftermarket device to
determine its proper mounting location.
Failure to consult and follow the vehicle
manufacturer’s mounting recommendations
may result in serious personal injury or death.
!
WARNING
High Voltage! Please wait 5 minutes after shutting
this unit OFF before attempting service. Warranty
void if seal is broken.
STROBE POWER SUPPLY
SPECIFICATIONS
Voltage
8-30 Vdc
Current
5.8 Amps @ 12.8 Vdc
Power
75 Watts
Fuse
15 Amp
Number of Heads
4
