Page 1 LED TRAFFIC MASTER
LED TRAFFIC MASTER
DIRECTIONAL SIGNAL BAR
[ETT3MLED-P]
INTRODUCTION
The LED TRAFFIC MASTER DIRECTIONAL SIGNAL is a revolutionary new
emergency warning product. It is a high intensity Traffic Directing device in
a compact size that can be mounted almost anywhere.
Offering maximum light intensity with minimum power draw, the LED Traffic
Master draws a maximum of 2.2 amps under standard conditions. The LED
Traffic Master can also operate at either 12 or 24 volts. The solid state design
and absence of moving parts make the LED Traffic Master virtually repair
free. The compact low profile construction and universal adjustable mount-
ing brackets allow the LED Traffic Master to be installed on a rear deck or
connected to a Light Bar without blocking the warning signal or driver view.
The LED Traffic Master delivers eight (8) distinct warning patterns - Left
Arrow, Right Arrow, Center Out, Flash Mode 1, Flash Mode 2 as well as
Solid Arrow Right, Solid Arrow Left and Solid Arrow Split.
INSTALLER: This manual must be delivered to
the end user of this equipment!
OVERVIEW
REPLACEMENT PARTS
Part # Description
PLMCTM3LED LED Center Light Module
PLMATM3LED LED Arrow Light Module
ETTMLEXT25 25’ LED Extension Cable
PBKTLLEDTM Adjustable “L” Bracket
ET2CBTML LED Control Head
LED TRAFFIC MASTER Page 10
ADJUST CONTROL BOX KNOB
1. Gently pry off the knob’s end cap.
2. Insert a 10mm socket on to adjustment nut.
3. To loosen, turn counter clockwise.
4. To tighten, turn clockwise.

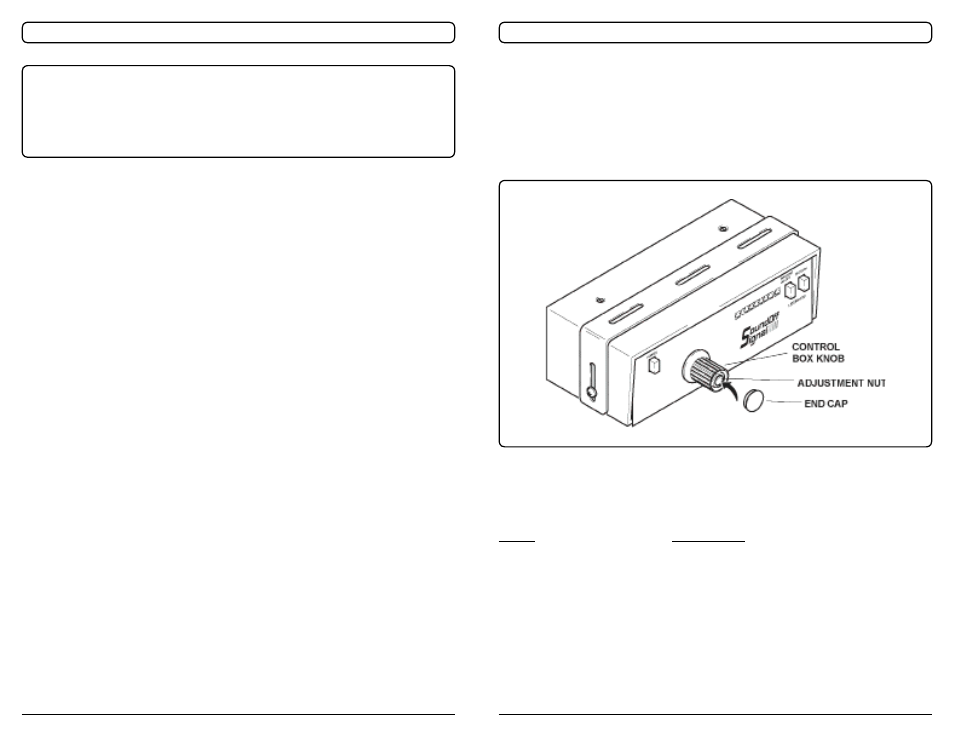

Figure 8. Adjust Control Box Knob
