Page 9 LED TRAFFIC MASTER
Changing the LED MODULE
(Refer to Figure 7)
1) Determine the location of the nonworking LED module.
2) Remove the 4 phillips head screws on the back of the Light Bar that hold
the nonworking LED module.
3) Gently pull the LED module away from the bar.
4) Disconnect the wires from the screw terminals on the back of the LED
module. NOTE: White wires go to the (+) terminal and the colored wire
goes to the (-) terminal.
5. Reconnect the wires to the new LED module. NOTE: The use of con-
ductive grease on the wire contact is recommended.
6. Reattach LED module to Light Bar.

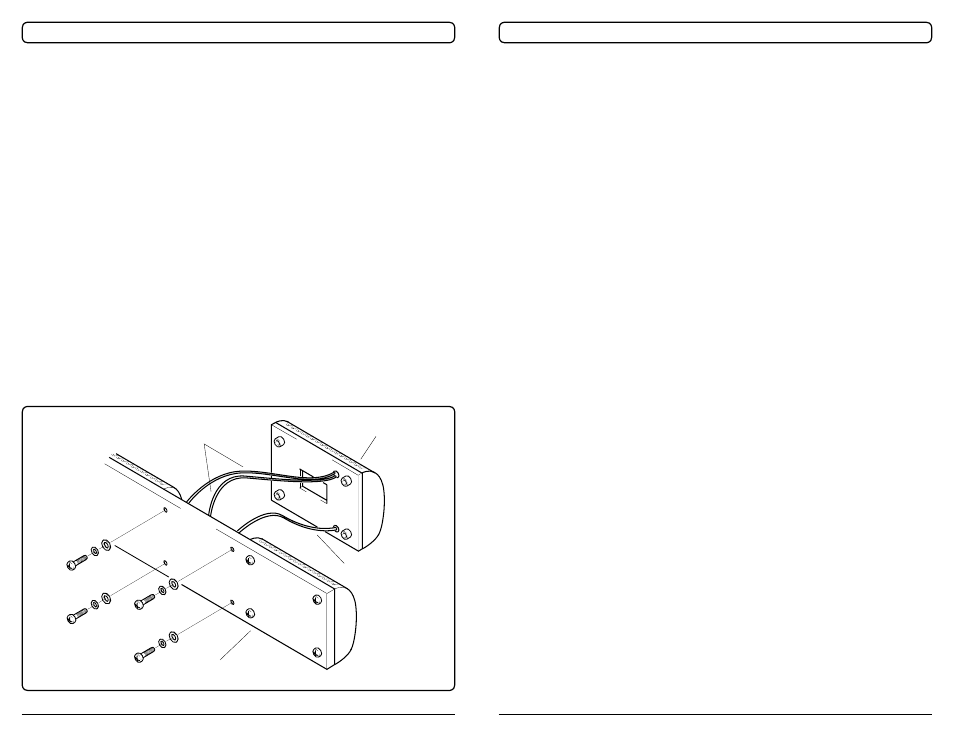

Figure 7. Changing the LED Module
MAINTENANCE
The LED Traffic Master requires little routine maintenance. Occasional
cleaning of the lens is all that is required to sustain maximum light output.
Use plain water and a soft cloth or lens polish and a very soft paper towel
or facial tissue. Since plastic scratches easily, cleaning is recommended
only when necessary.
WHITE WIRE
(+) TERMINAL
LED LIGHT MODULE
COLORED WIRE
(-) TERMINAL
BACK OF LIGHT BAR
LED TRAFFIC MASTER Page 2
The use of this or any warning device does not insure that all drivers can
or will observe or react to an emergency warning signal. Never take the
right-of-way for granted. It is your responsibility to be sure you can proceed
safely before entering an intersection, driving against traffic, responding at
a high rate of speed or walking on or around traffic lanes.
The effectiveness of this warning device is highly dependent upon correct
mounting and wiring. Read and follow the manufacturer’s instructions be-
fore installing or using this device. The vehicle operator should insure daily
that all features of the device operate correctly. In use, the vehicle operator
should insure the projection of the warning signal is not blocked by vehicle
components (i.e.: open trunks or compartment doors), people, vehicles, or
other obstructions.
This equipment is intended for use by authorized personnel only. It is the
user’s responsibility to understand and obey all laws regarding emergency
warning devices. The user should check all applicable city, state and federal
laws and regulations.
SoundOff Signal assumes no liability for any loss resulting from the use of
this warning device. Proper installation is vital to the performance of this
warning device and the safe operation of the emergency vehicle. Warning
devices should be installed in such a manner as to: A) Not reduce the output
performance of the system, B) Place the controls within convenient reach of
the operator so that he can operate the system without losing eye contact
with the roadway. Properly protect and use caution around live electrical
connections. Grounding or shorting of electrical connections can cause
high current arcing, which can cause personal injury and/or severe vehicle
damage, including fire.
Any electronic device may create or be affected by electromagnetic inter-
ference. After installation of any electronic device, operate all equipment
simultaneously to insure that operation is free of interference. Never power
emergency warning equipment from the same circuit or share the same
ground circuit with radio communication equipment.
PROPER INSTALLATION COMBINED WITH OPERATOR
