EZ-SCREEN Point
Instruction Manual

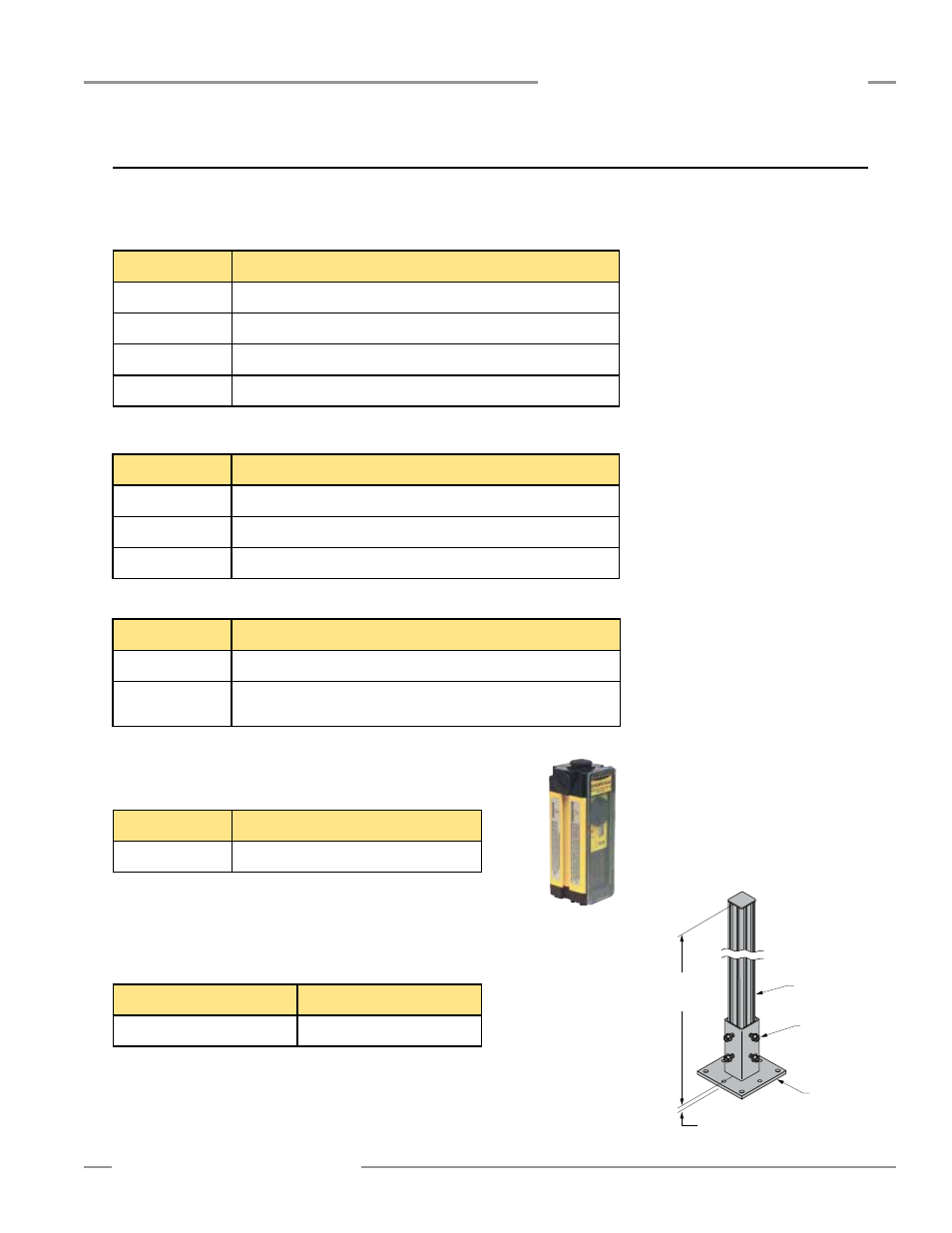

Components and Specifications
Models Description
SI-QS-CG13 Pg13 .5 cable gland
SI-QM-13 Adapter, 1/2" NPT to Pg13.5
SI-QM-13-M20 Adapter, M20 to Pg13.5
Models Description
IM-T-9A Interface Module (3 normally open redundant-output contacts)
IM-T-11A
Interface Module (2 normally open redundant-output contacts plus 1
normally closed auxiliary output contact)
Cabling
Interface Modules
Model Description
LAT-1 Laser Alignment Tool with adapter clip
EZA-LAT-1 Clip-on retroreflective target
BRT-THG-2-100 50 mm (2") wide reflective tape, 2.5 m (100") long
BT-1 Beam Tracker
2.3 Accessories
Interface Modules
Interface modules provide isolated safety contacts for a Primary Safety Device (the
EZ-SCREEN Point System). See data sheet p/n 62822 for more information.
(4) M10 Bolt
Pole
40 mm
(1.58") Square Usable
Stand
Height
Base
6.4 mm (0.25")
MSA Series Stands
NOTE: One EZA-MBK-2 Adaptor Bracket Kit required per
sensor .
Lens Shields
NOTE: The total range decreases by approximately 10% per
shield .
Models Stand Height
MSA-S42-1 42”
Model Length
EZS-149 149 mm (5.86")
