Banner SureCross DX80 Wireless Networks User Manual
Page 36

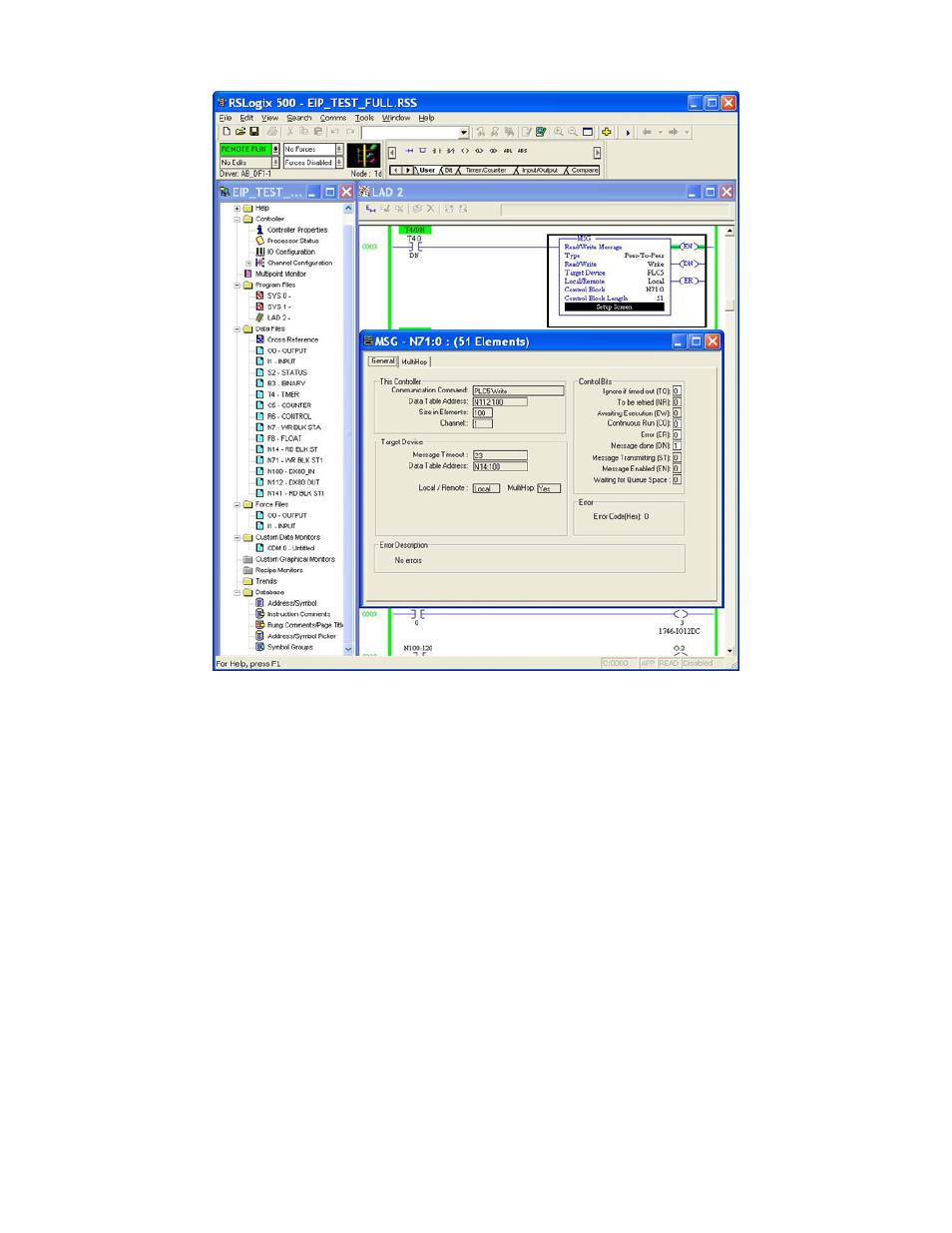

Figure 3. SLC 5 – MSG Write Setup. The SLC 5 MSG write setup instruction with multi-hop enabled is shown. Click on the ‘MultiHop’ tab and
enter in the IP address of the DX80 Device (factory default 192.168.0.1)
8 RSLogix 5000 Configuration
To create an implicit Class 1 configuration to the DX80 using Ethernet/IP when using a ControlLogix family PLC, configure
the DX80 as a “Generic Ethernet Module” under the ENET_MODULE.
Host Controller Systems
36
