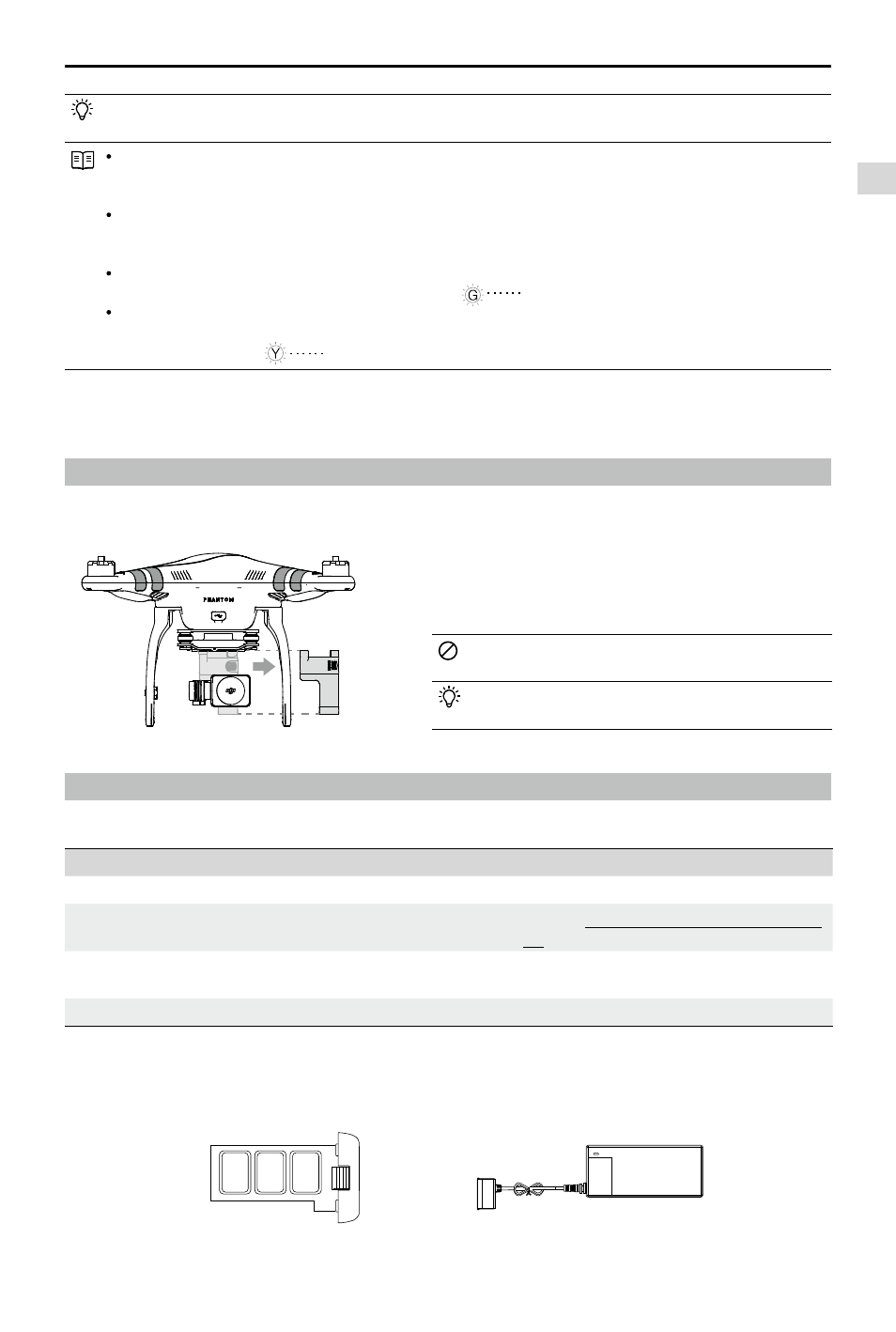

Assembly and Use

©

2014 DJI. All Rights Reserved.

7

Choose between Phantom and Naza-M working modes using Phantom 2 Vision+ Assistant. If using Naza-M

mode, please refer to the NAZA-M V2 Quick Start Manual for related instructions.

Phantom: Flight settings will be selected automatically depending on whether 6 or more satellites have been

found. This mode allows users to configure the Remote Control and gain values, and use Failsafe and battery

level warnings.

Naza-M: Flight settings will be identical to the Naza-M V2. Users can choose between GPS, Attitude, or Manual

mode. They can also access advanced settings including Intelligent Orientation Control (IOC). Rear LED Flight

Indicators will display the flight status according to the Naza-M indicator.

Ready to Fly: When 6 or more GPS satellites have been found, the Flight Control System will lock its home point

and Rear LED Flight Indicators will blink a slow green (

). This mode is ideal for beginners.

Ready to Fly (non-GPS): When less than 6 GPS satellites have been found, the Flight Control System will

stabilize itself less than in full Ready to Fly mode and will require more skilled flying. Rear LED Flight Indicators
will blink a slow yellow (

).

Assembly and Use

Follow the below instructions to prepare for flight.

1 Removing Gimbal Clamp

Pull gimbal clamp in the direction indicated to remove.

Figure 2

2 Preparing the Battery

Ensure all related devices are fully charged before flying the Phantom 2 Vision+.

Device

Power supply

Remote Control

2000mAh rechargeable LiPo battery

Range Extender

Charge fully through Micro-USB slot. See Charging the Range Extender (Page

20) for details.

Aircraft (including gimbal and

camera)

DJI Smart Flight Battery.

Mobile Device

Fully charge before using the DJI VISION App.

2.1 DJI Smart Flight Battery

This battery has been specially designed for the Phantom 2 series. It has a battery capacity of 5200mAh, voltage of

11.1V and charge-discharge management functionality. It can only be charged with a DJI charger or Phantom 2 Car

Charger.

To avoid damage to the gimbal, remove Gimbal Clamp

before powering up the Phantom.
Attach the Gimbal Clamp during transportation or long

term storage to avoid damage.

Smart Flight Battery

DJI Charger

Removing Gimbal Clamp / Preparing the Battery

Figure 3

Figure 4
