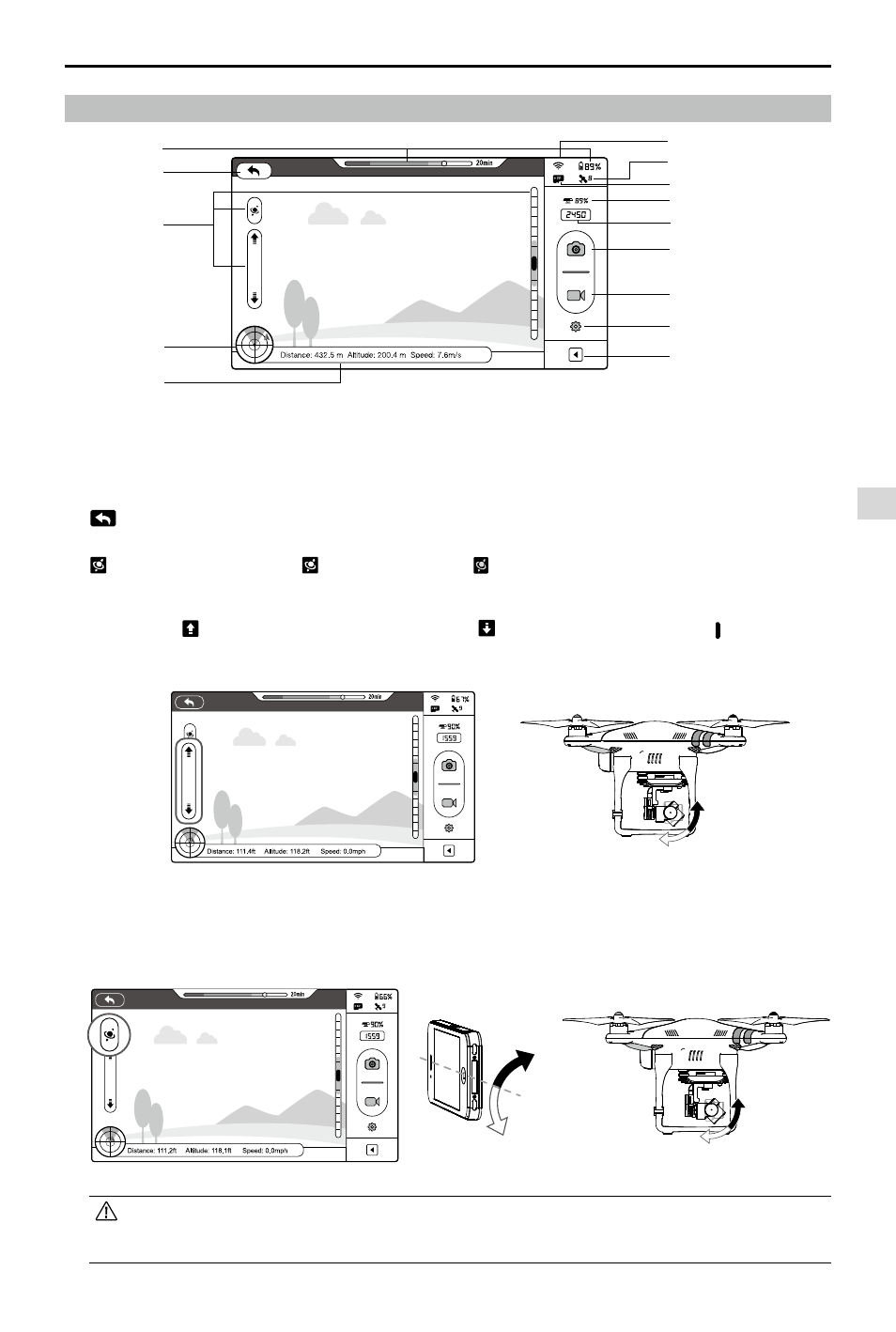

2 Camera Page

[1] Return [2] Camera Pitch Control [3] Flight Attitude and Radar Function [4] Flight Parameters [5] Wi-Fi Signal Strength [6]

Flight Battery Level [7] Aircraft GPS Status [8] Micro-SD Card Status [9] Range Extender Battery Level [10] Remaining

Shots [11] Shutter Button [12] Video Recording Button [13] Camera Settings [14] Hide or Show Flight Parameters

[1] Return

-Return to the preview page

[2] Camera Pitch Control

-Pitch Control switch is white tap once to highlight it and enter Accelerometer Sensor Mode. Tap again to

return to normal.

Normal Mode

Tap up arrow to pitch camera upwards and down arrow to pitch downwards. Green slider indicates current

camera pitch.

Gimbal pitch movement

Gimbal pitch control (Normal Mode)

Accelerometer Sensor Mode

The gimbal pitch movement is controlled by moving your mobile device. Pitch forward to pitch camera down and

backward to pitch camera up.

Gimbal pitch control (Accelerometer Sensor Mode)

Gimbal pitch movement

In Accelerometer Sensor Mode, the pitch angle indicator will show a grey area. When the green pitch indicator

is inside the grey area, the camera will move according to pitch gestures. When the indicator reaches the

boundary of the grey area, pitch gestures will control the camera’s pitch speed at a constant rate.

Figure 62

Figure 63

Figure 64

Figure 65

Figure 66

Figure 67
