DJI VISION App Usage

34

©

2014 DJI. All Rights Reserved.

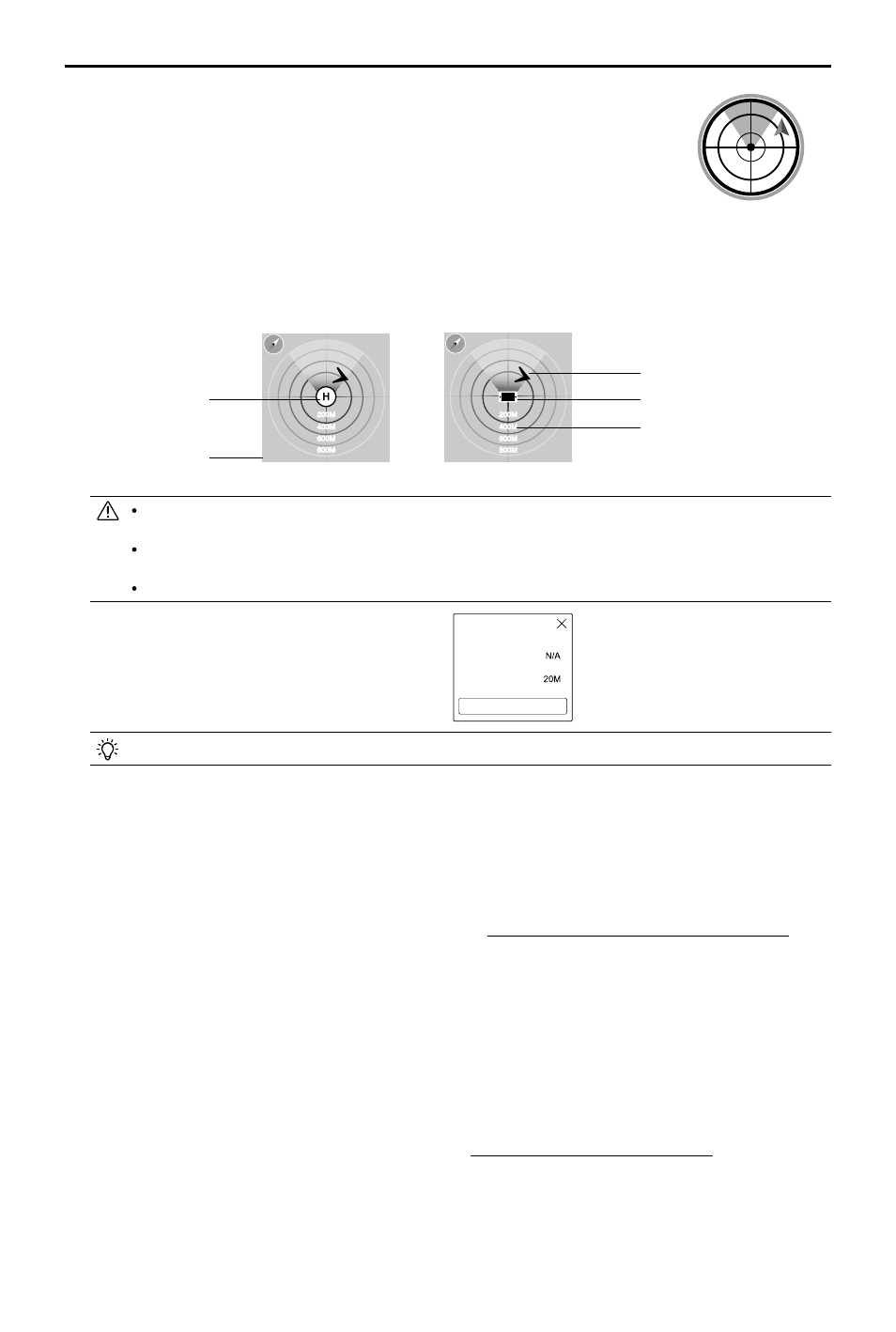

[3] Flight Attitude and Radar Function

Flight attitude is indicated by the flight attitude icon.

(1) The red arrow shows which direction the Phantom 2 Vision+ is facing.

(2) Light blue and dark blue areas indicate pitch.

(3) Pitching of the boundary between light blue and dark blue area shows roll angle.

(4) An orange circle around the radar indicates that the dynamic home point is not available.

A green circle around the radar indicates that the dynamic home point is available and

a new home point has been set.

Tap flight attitude icon to turn on the radar function. Home in the center of the radar and the red icon indicates the

Phantom 2 Vision+’s current heading, direction, and approximate distance from home. Tap flight attitude icon again

to disable the radar.The current longitude and latitude of the aircraft is displayed on the bottom of the radar.

By default, the center of the radar indicates the home point recorded by the Phantom 2 Vision+. Tap the

center of the radar to switch the center to your mobile device's current location.

If your mobile device contains a compass, the top portion of the Radar is the direction you are pointing. If

not, the radar will be oriented due north.

Distance units are metric in Figure 69 and Figure 70. Users can switch the unit to imperial in the settings page.

[4] Flight Parameters

Tap to set return home (RTH) altitude.

Distance: Horizontal distance from home point.

Altitude: Vertical distance from home point.

Speed: Horizontal flying speed.

Distance value will show as N/A if the Phantom 2 Vision+ is not in “Ready to Fly” mode.

[5] Wi-Fi Signal Intensity

Indicates camera is connected to your mobile device and Wi-Fi is working normally.

The connection between the camera and mobile device may fail if Wi-Fi signal strength is low. Refer to Phantom 2

Vision+ CONNECTION BROKEN for more information.

[6] Flight Battery Level

Show current flight battery level. When battery level is low and the battery icon turns red it is recommended to fly the

aircraft back and land it as soon as possible. Please refer to Low Battery Level Warning Function (Page 28) to get

more details.

[7] Aircraft GPS Status

GPS status icon display the number of satellites found by the aircraft. The icon is highlighted when more than 6

satellites are found, allow the Phantom to fly in “Ready to Fly” mode.

[8] Micro-SD Card Status

Displays Micro-SD Card Status. Icon is highlighted when a valid Micro-SD card is inserted. If there is no Micro-SD

card present, it is grayed out.

[9] Range Extender Battery Level

Shows current battery level of the Range Extender. Refer to Checking the Battery Level (Page 21) for more details.

[10] Remaining Shots

Displays estimated shots remaining, based on the current photo size setting and storage capacity of the Micro-SD

card. This shows ‘0’ if:

(1) Micro-SD card is not inserted.

(2) Micro-SD card is full.

Figure 69

Figure 70

113.94717E

113.94717E

22.54053N

22.54053N

200M
400M
600M
800M

200M
400M
600M
800M

Home Point

Longitude & Latitude

Aircraft Position
Mobile Device Position
Distance

Figure 68

Go-Home Setting

Current Altitude

New Altitude

Set New Altitude
