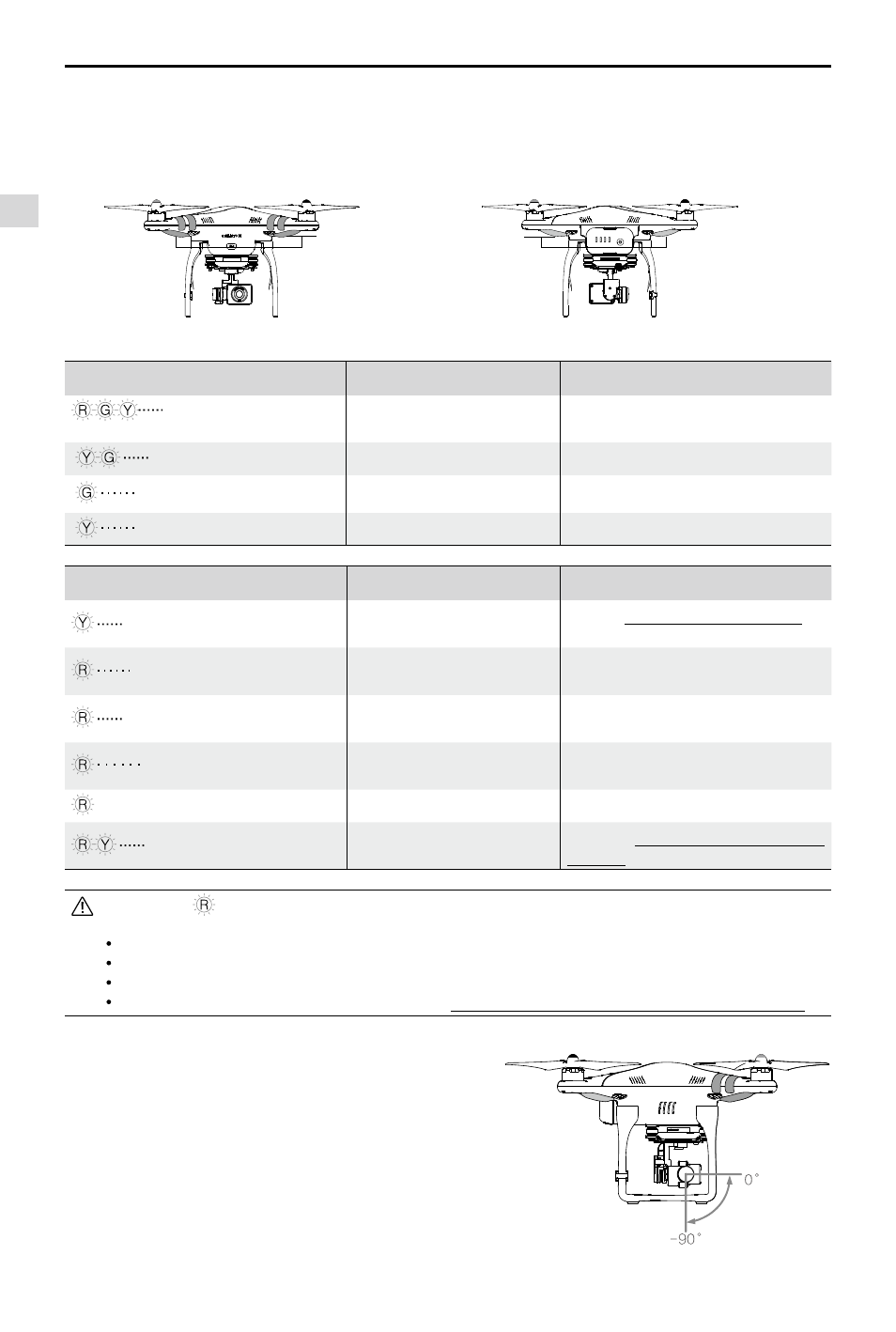

Assembly and Use

12

©

2014 DJI. All Rights Reserved.

Figure 11

Figure 12

Rear LED Flight Indicators

Normal

Notes

Red, Green, Yellow

flashing in turn

Power On Self-Test

Yellow,Green flashing in turn Warming Up

Aircraft cannot take off.

Slow Green flashing

Ready to Fly

More than 6 GPS satellites are found.

Slow Yellow flashing

Ready to Fly (non-GPS)

Less than 6 GPS satellites are found.

Rear LED Flight Indicators

Abnormal

Notes

Quick Yellow flashing

Remote Control Signal Lost

Refer to Failsafe Function (Page27) for

details.

Slow Red flashing

Low Battery Level Warning

DJI VISION App will also show warning

message.

Quick Red flashing

Critical Low Battery Level

Warning

DJI VISION App will show warning

message.

Three Red flashing off and on Not Stationary or Sensor Bias is

too big

Keep aircraft stationary or perform IMU

calibration.

— Solid red

Error

Cannot fly.

Red, Yellow flashing in turn

Compass Needs Calibration

Refer to Calibrating the Compass

(Page25) to get details.

If a solid red

LED indicator appears, connect to the Phantom 2 Vision+ Assistant for details and resolution.

This may be caused by:

IMU calibration required: Recalibrate IMU using Assistant.

IMU is abnormal: Repair required.

Compass is abnormal: Repair required.

Remote Control mid-point is set abnormally: Refer to How to solve large margin(s) mid-point error? (Page 49)

3.4 3-axial Stabilized Gimbal

The 3-axial stabilized gimbal of the Phantom 2 Vision+

will power on and self-check each time the flight battery

is installed and powered on. Its pitch can be controlled

using the DJI VISION App. This gimbal has two working

modes, Non-FPV mode and FPV mode, with the Non-FPV

mode set as default. This can be configured in Phantom 2

Vision+ Assistant or the DJI VISION App.

3.3 LED Flight Indicator Descriptions

LED flight indicators are found at the front and the rear of the Phantom. Front LEDs are for indicating where the nose of

the aircraft is. They light up solid red after motors have started spinning. Rear LED Flight Indicators light up to show the

aircraft’s current flight status once the flight battery is powered on. For details, please see the below table.

Front LEDs

Rear LED

Flight Indicators

Preparing the Phantom 2 Vision+

Figure 13
