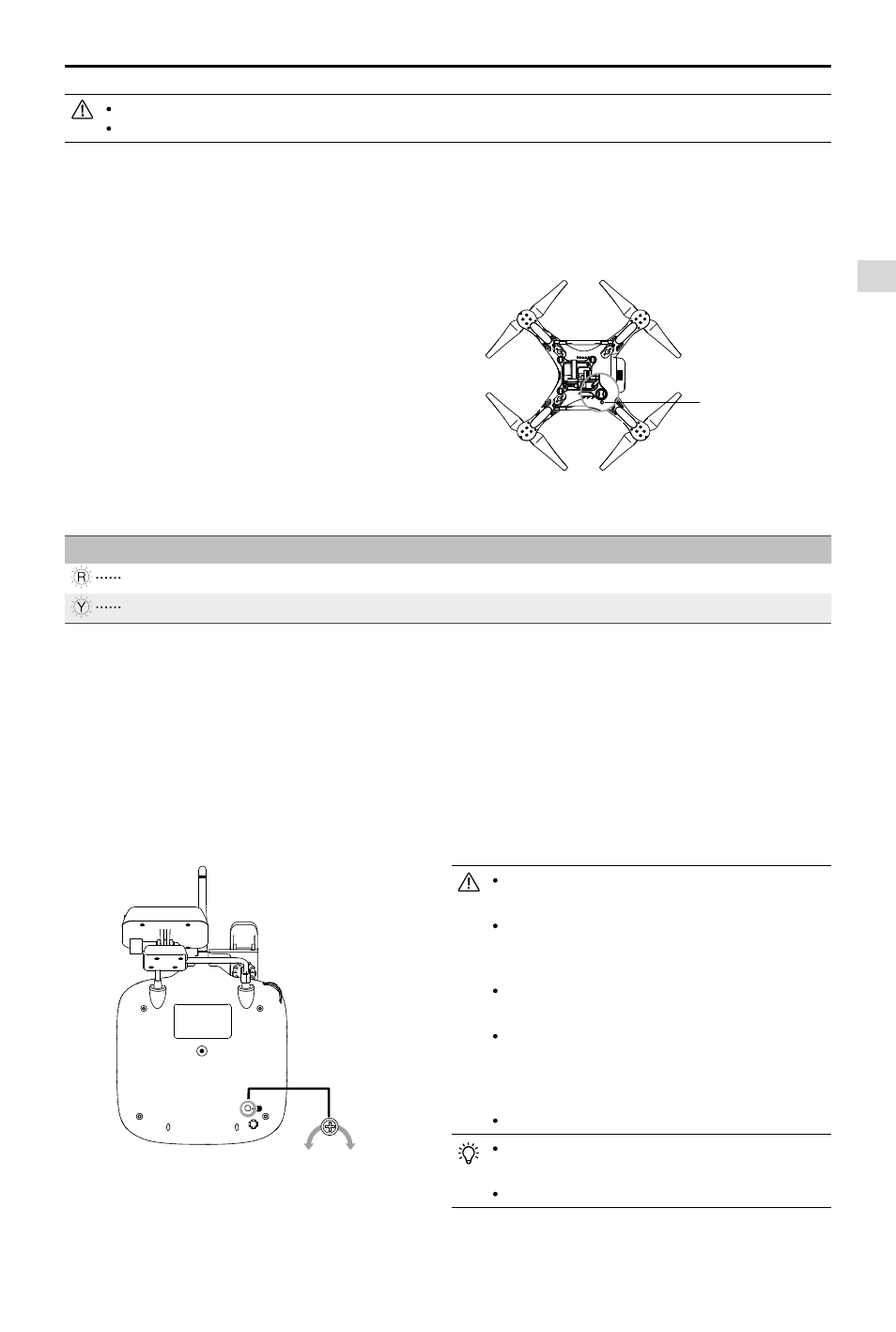

background image

Assembly and Use

©

2014 DJI. All Rights Reserved.

19

Preparing the Remote Control

Linking Procedures

(1) Power off the Remote Control, power on the aircraft.

You will see the link indicator blinking red.

(2) Press the link button with a thin object and hold

until the link indicator blinks yellow. Release the link

button.

(3) Power on the Remote Control. Link indicator will

switch off, showing that a link has been successfully

established.

Figure 27

Link Indicator

Link Indicator

Description

Next Operation

Red flashing

No signal received.

Switch on the Remote Control or perform a link procedure.

Yellow flashing

Ready to link.

Switch on the Remote Control.

5.8 Compliance Version Configuration

As power levels vary between regulators, the Phantom Remote Control’s power output can be adjusted by twisting the

CE/FCC Control Knob (Figure 27) on the back of the Remote Control using a flathead screwdriver. For CE compliance,

set the Remote Control to CE with a full counterclockwise turn. For FCC compliance, set the Remote Control to FCC with

a full clockwise turn. Be sure to follow relevant local regulations.

Compliance can be configured using the PHANTOM RC Assistant. Select CE compliance version in Assistant to set it, or

do the same with FCC compliance version.

5.7 Linking the Remote Control and Receiver

A 5.8G receiver is built in to the Phantom 2 Vision+. Its link button and indicator are located on the underside of the

phantom, as shown in Figure 26.

The Remote Control and the receiver are paired before delivery. Only use this button if you have replaced your Remote

Control or receiver.

Turn the CE/FCC Control Knob gently to avoid

damage.

CE compliant devices have an effective remote

control range of 400 meters in open spaces due

to power limitations.

FCC compliant devices have an effective range of

800 meters in open spaces.

Watch your flight distance as the Phantom 2

Vision+ will enter Failsafe mode (auto-landing or

go home and land) if it flies beyond the relevant

range limits.

Always follow local laws and regulations.

It is recommended to use a Φ2.4mm flathead

screwdriver for adjustments.

There is another potentiometer for reserved use.

CE

FCC

Figure 26

Link Button & Link

Indicator

In ‘Ready to Fly’ mode, the Phantom will hover when all sticks are released.

In ‘Ready to Fly (non-GPS)’ the Phantom will lock its altitude but will not have horizontal positioning.
