INSTALLATION
INSTRUCTIONS
9581 Instructions 4-18-13.doc 7 of 13

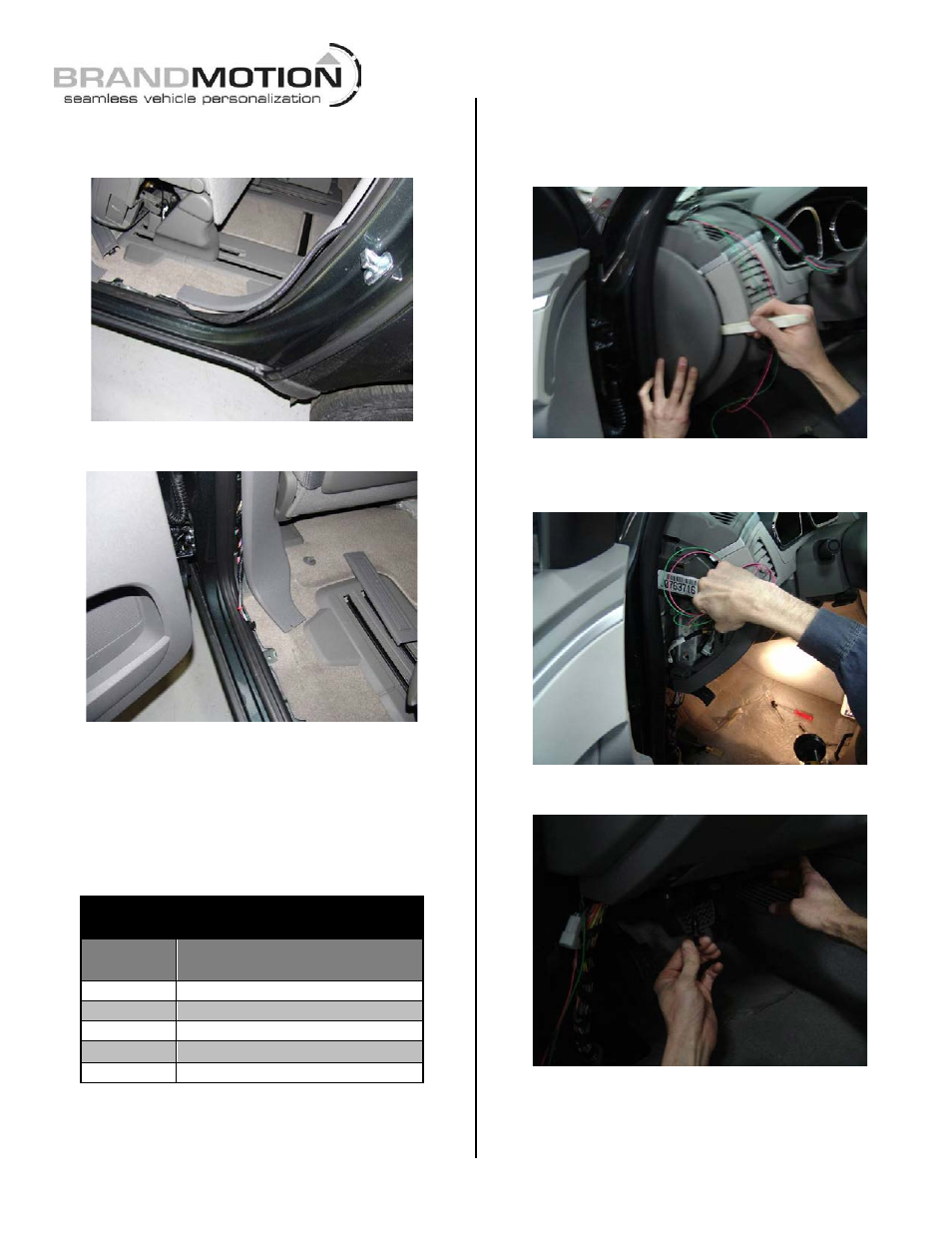

Step 32. Push the rear seat forward. Pull away C-pillar
trim with a plastic removal tool and continue routing the
Chassis Harness.
Step 33. Route Chassis Harness through the rear seat
area towards the B-pillar.
Step 34. Tuck Chassis Harness beneath the carpet.
Step 35. Connect Chassis Harness. NOTE: If
connecting to a factory NAV display, skip ahead to Step
81.
Red – Ignition. See Step 43.
Black - Chassis ground. See Steps 41 to 42.
Green – Reverse. See Step 44.
Chassis Harness Pinout
WIRE
COLOR FUNCTION
White Video (+)
Brown Video (–)
Black Ground
Green Reverse Signal 12V+
Red Ignition Controlled 12V+
Step 36. (If required): Install aftermarket video display
or mirror per manufacturer’s instructions.
Step 37. Remove driver’s side end of dash cover by
gently prying it away from dashboard with a Pick Tool.
Step 38. Route Chassis Harness through the opening at
the end of the dash and use two supplied Wire Ties to
attach to the vehicle.
Step 39. Remove lower dash panel by removing three
push pins.
