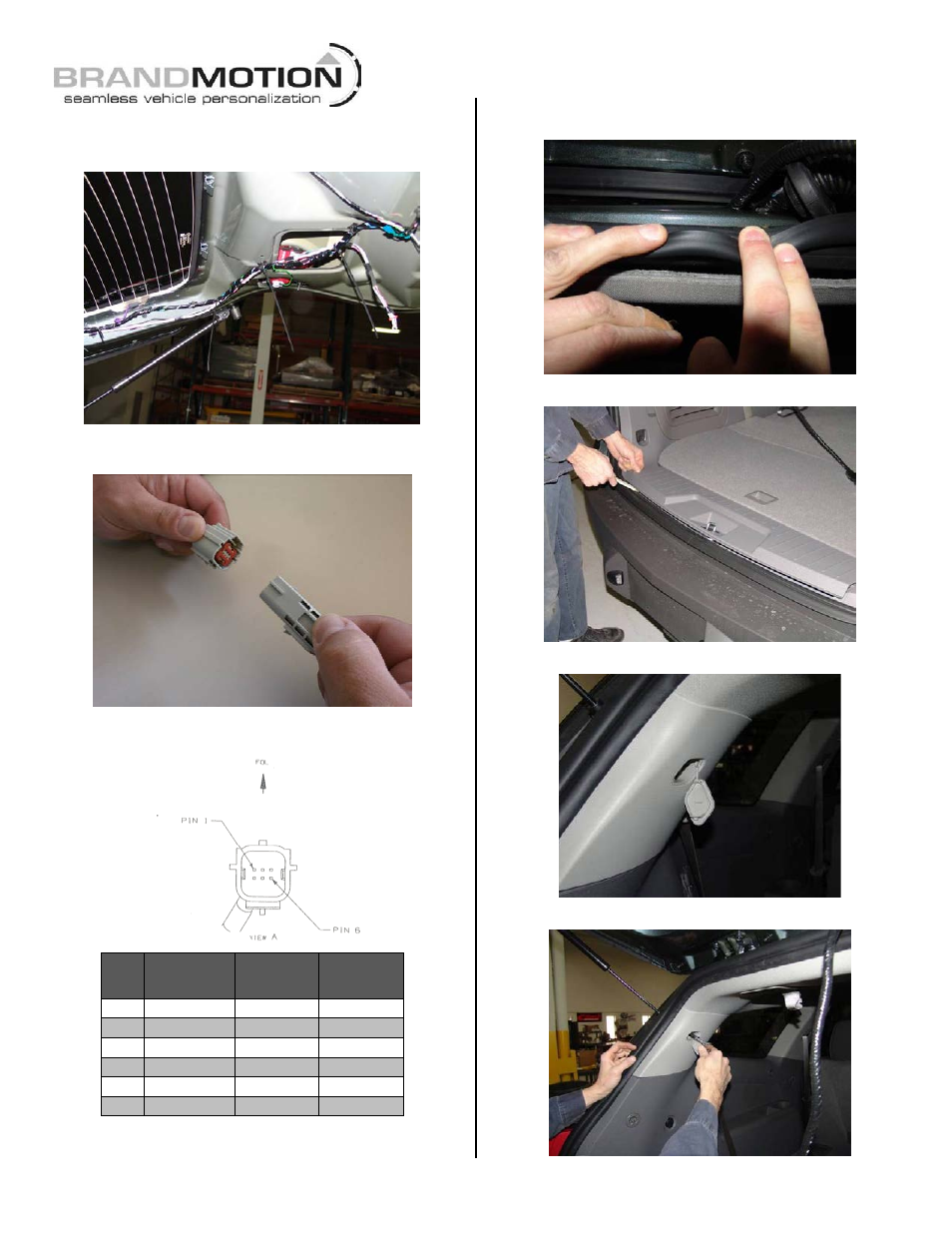

Step 15. Route Camera Harness toward the right side
of the liftgate and attach it to the vehicle’s liftgate
harness using supplied Wire Ties.
Step 16. Connect Camera Harness to supplied Chassis
Harness and tuck under the headliner.
Pinout Reference Chart
PIN
#
FUNCTION
CAMERA
HARNESS
COLOR CHASSIS
HARNESS
COLOR
1 Video (+) Yellow White
2 Shield White Blue
3 Reverse Blue Green
4 Video (–) Brown Brown
5 Ground Black Black
6 Ignition Red Red
Step 17. Remove the grommets from the liftgate and
body with a Pick Tool and your hands.
Step 18. Remove cargo sill plate with Plastic Trim Tool.
Step 19. Remove upper D-pillar bolt cover with a pick tool.
Step 20. Remove upper D-pillar bolt with a 7mm socket.
