Installation instructions – Brandmotion 1022-9590 User Manual
Page 5
INSTALLATION INSTRUCTIONS
9581 Instructions 4-18-13.doc
5 of 13

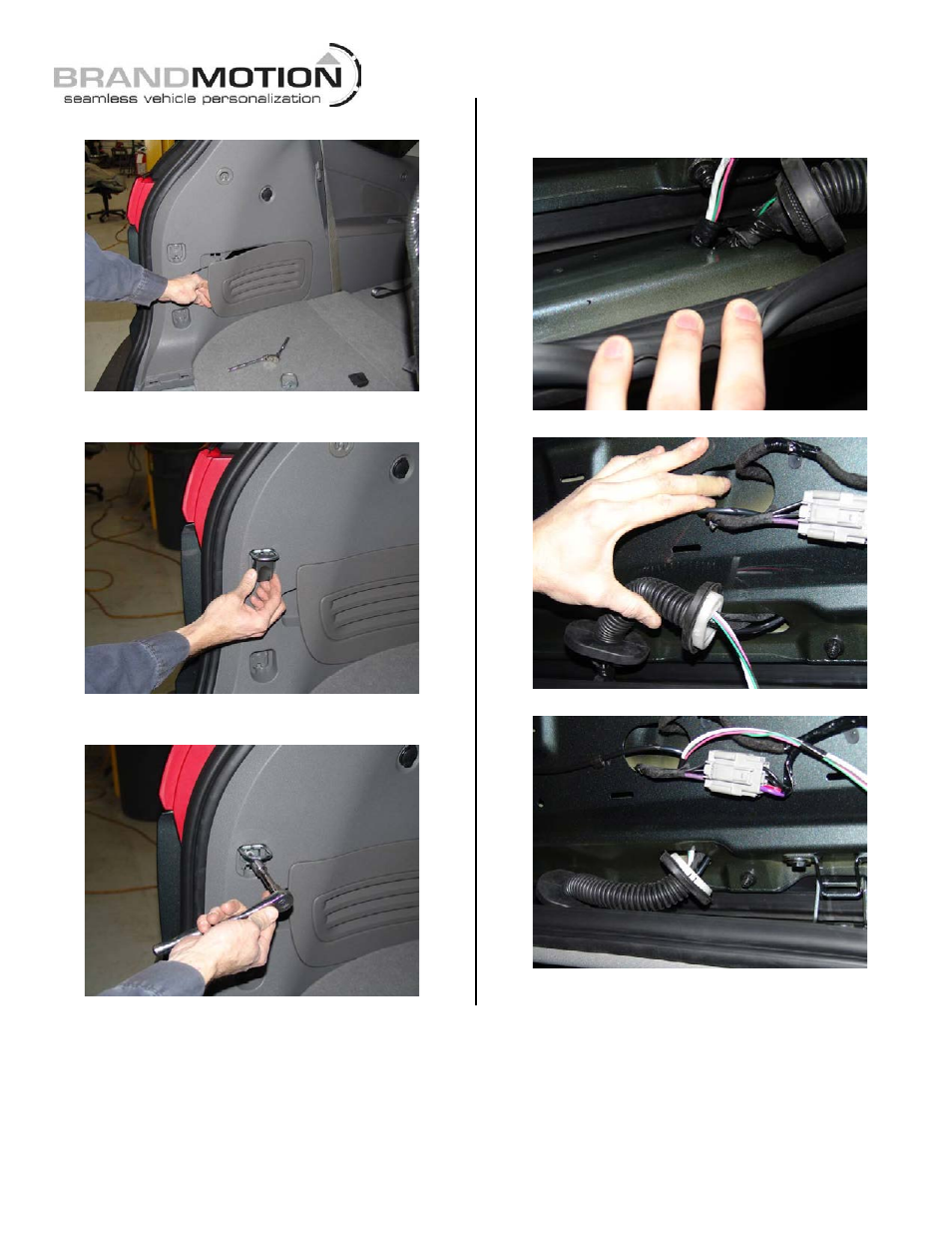

Step 21. Remove lower D-pillar jack cover with hands.
Step 22. Remove two D pillar cargo anchor covers with
your hands.
Step 23. Remove two D-pillar cargo anchor bolts with a
T40 Torx driver.
Step 24. Route the RCA end of Chassis Harness
through the liftgate access hole (Figures 3, 4 & 5).
Figure 3
Figure 4
Figure 5
