INSTALLATION
INSTRUCTIONS
9550 Instructions 1-8-13.doc Page 8 of 13

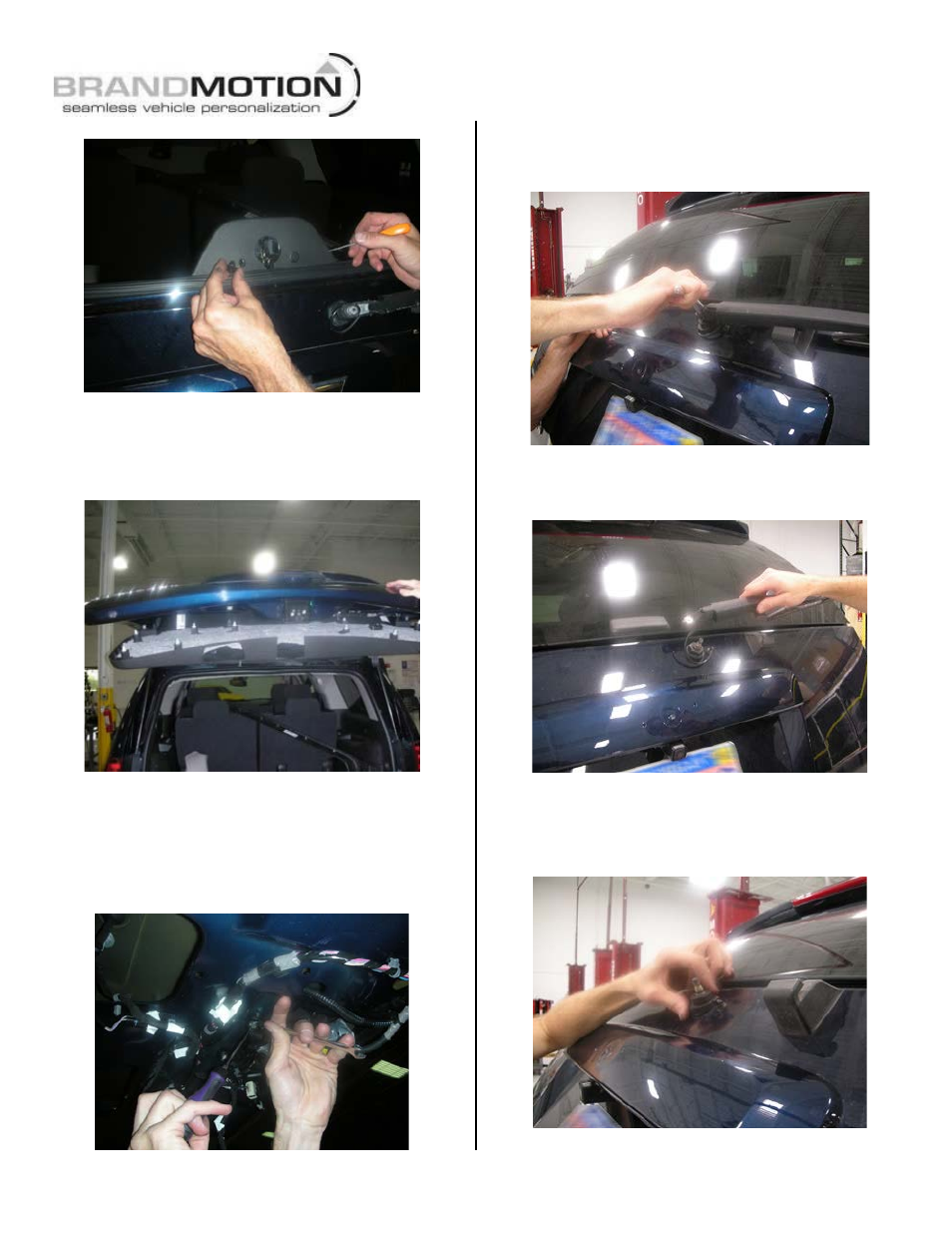

Figure 34
38. Remove the lower liftgate trim by working your way
from one end to the other and popping out the
mounting pins with your hands. (Figure 35)
Figure 35
39. Remove the two nuts fastening the rear wiper motor
to the liftgate using a 10mm open-end wrench and
flat head screwdriver. Disconnect wiper motor wiring
harness by pulling the connector out of the motor
with your fingers. (Figure 36)
Figure 36
40. Close the liftgate and remove the wiper nut using a
10mm socket. (Figure 37)
Figure 37
41. Remove the wiper and disconnect the washer fluid
line from the vehicle. (Figure 38)
Figure 38
42. Remove wiper motor exterior nut using a 28mm
socket and then remove wiper motor from inside the
liftgate. (Figure 39)
Figure 39
