INSTALLATION
INSTRUCTIONS
9550 Instructions 1-8-13.doc Page 3 of 13

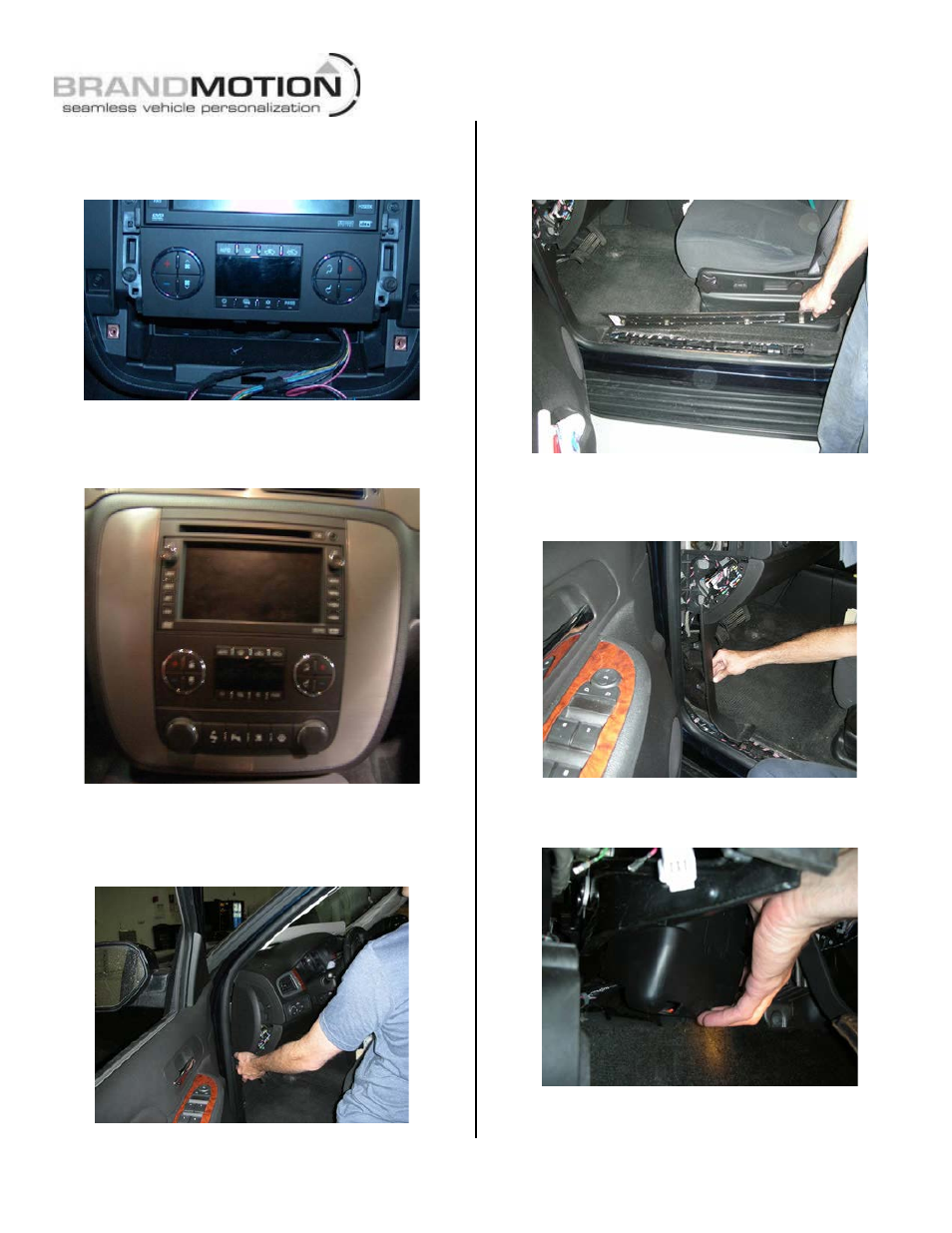

13. Reinstall the radio, HVAC control head and the
accessory panel using 7mm socket. Tighten all
fasteners to 2.0 N·m (18 lb in). (Figure 7)
Figure 7
14. Install radio/accessory trim bezel. Assure that all
clips are fully seated and that bezel sits flush with
dash panel. (Figure 8)
Figure 8
15. Remove the driver’s side end of dash cover by
gently prying it away from the dashboard using a
pushpin removal tool. Be careful not to damage the
trim. (Figure 9)
Figure 9
16. Remove the front driver’s side sill plate by lifting it at
the rear and working your way forward with your
hands to release the mounting clips. (Figure 10)
Figure 10
17. Remove the front driver’s side kick panel by lifting at
the bottom and working your way upwards to
release the mounting clips. (Figure 11)
Figure 11
18. Remove M-BEC electrical cover under the dashboard by
popping it off with your hands. (Figure 12)
Figure 12
