Troubleshooting and Routine Maintenance
89
B

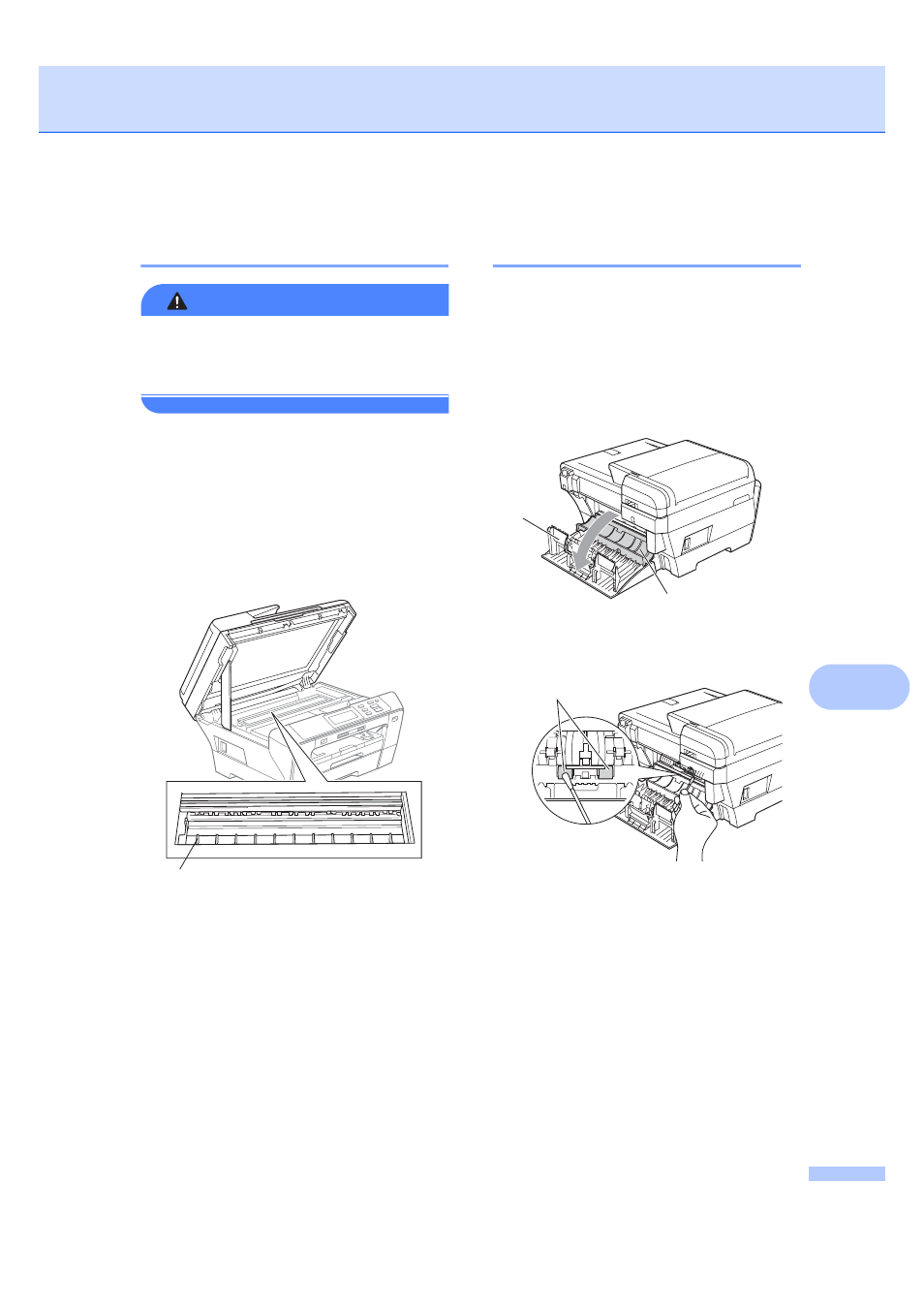

Cleaning the machine printer
platen
B
WARNING
Be sure to unplug the machine from the
electrical socket before cleaning the printer
platen (1).
a
Using both hands, use the plastic tabs
on both sides of the machine to lift the
scanner cover until it locks securely into
the open position.
b
Clean the machine printer platen (1) and
the area around it, wiping off any
scattered ink with a soft, dry lint-free
cloth.
Cleaning the paper pick-up
roller
B
a
Pull the paper trays completely out of
the machine.
b
Unplug the machine from the electrical
socket and open the Outer Rear
Cover (1) and the Inner Rear Cover (2)
at the back of the machine.
c
Clean the Paper Pick-up Roller (1) with
isopropyl alcohol on a cotton swab.
d
Close the Inner Rear Cover back and
the Outer Rear Cover.
Make sure the cover is closed correctly.
e
Put the paper trays firmly back in the
machine.
f
Re-connect the power cord.
1
1
2
1
