Chapter 1
6

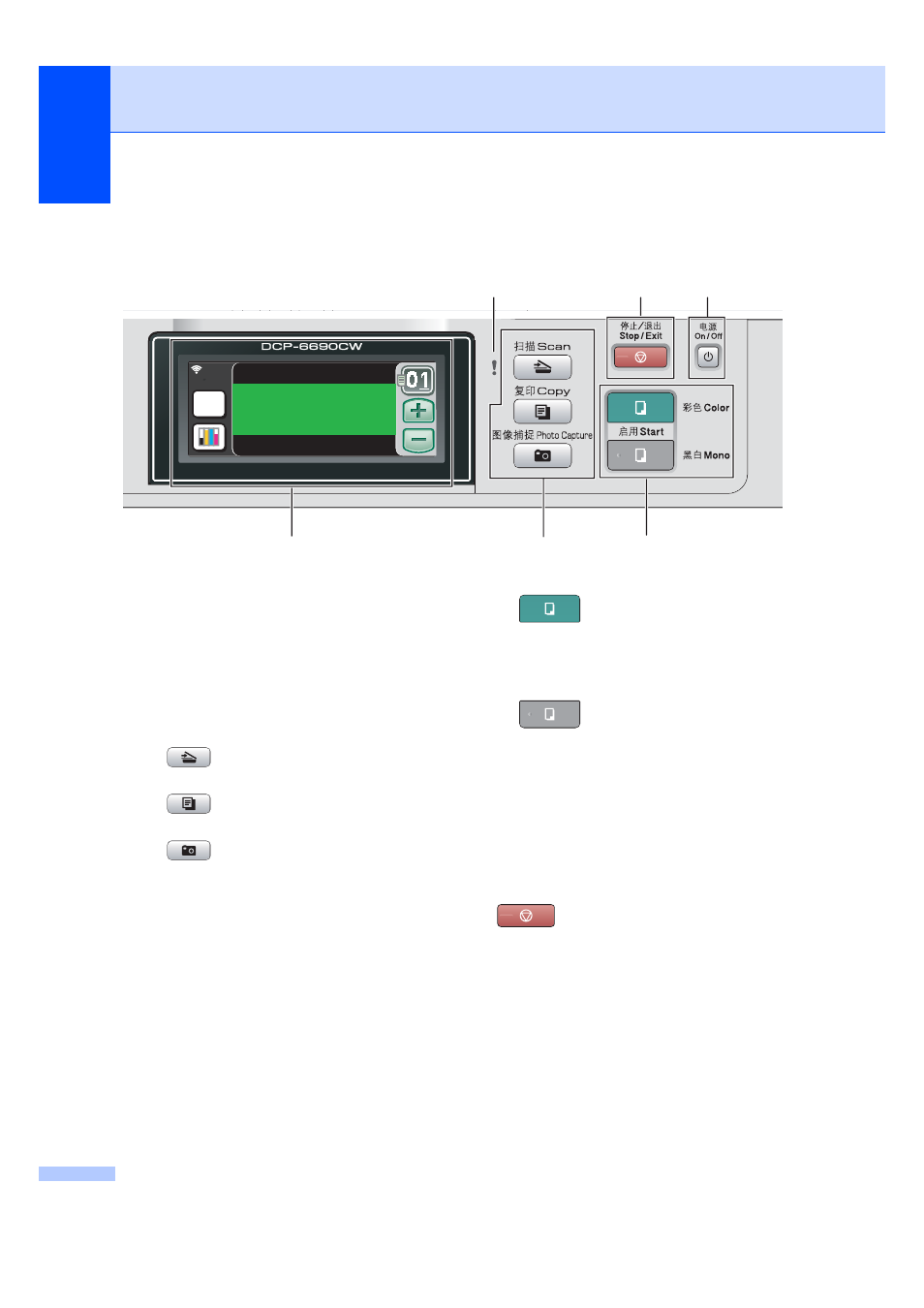

Control panel overview
1
1 LCD (liquid crystal display)
This is a Touchscreen LCD.
You can access the menus and options by
pressing buttons displayed on the screen.
Displays messages on the screen to help you
set up and use your machine.
Also, you can adjust the angle of the display by
lifting it.
2 Mode keys:
Scan
Lets you access Scan mode.
Copy
Lets you access Copy mode.
Photo Capture
Lets you access PhotoCapture Center™
mode.
3 Start keys:
Color Start
Lets you start making copies in full color.
Also lets you start a scanning operation (in
color or mono, depending on the scanning
setting in the ControlCenter software).
Mono Start
Lets you start making copies in
monochrome. Also lets you start a
scanning operation (in color or mono
depending on the scanning setting in the
ControlCenter software).
4 On/Off
You can turn the machine on and off. If you turn
the machine off, it will still periodically clean the
print head to maintain the print quality.
5 Stop/Exit
Stops an operation or exits from a menu.
6 Warning LED (light emitting diode)
Turns orange and blinks when the LCD
displays an error or an important status
message.
1 2 3
5 4 6
Quality:Normal
MENU
Copy
Enlarge/Reduce:100%
Tray Select:Tray#1
Paper Type:Plain Paper
