The alarm condition area displays information in three colors:
No alarm (green text) - No alarm condition exists
Latched (red text) - An alarm has happened, but has cleared
Alarm (red text) - An alarm has happened and is identified (VSWR, High Pwr,
Low Pwr, or any combination of these if more than one alarm exists)
If an alarm has occurred and has not been reset, the alarm text will be red and
will display which alarm (or alarms) occurred (Figure 25, page 38). You can reset
the alarm at the BPM-E or by clicking on the Reset Alarm button on the Main
screen. If the alarm condition is still present, the message cannot be reset.
You can also set the refresh rate from 1 second to 60 seconds (how frequently
the software updates the data from the BPM-E).
For more information about the Main screen features, refer to the help section
in the software (click on Help on the Menu bar).

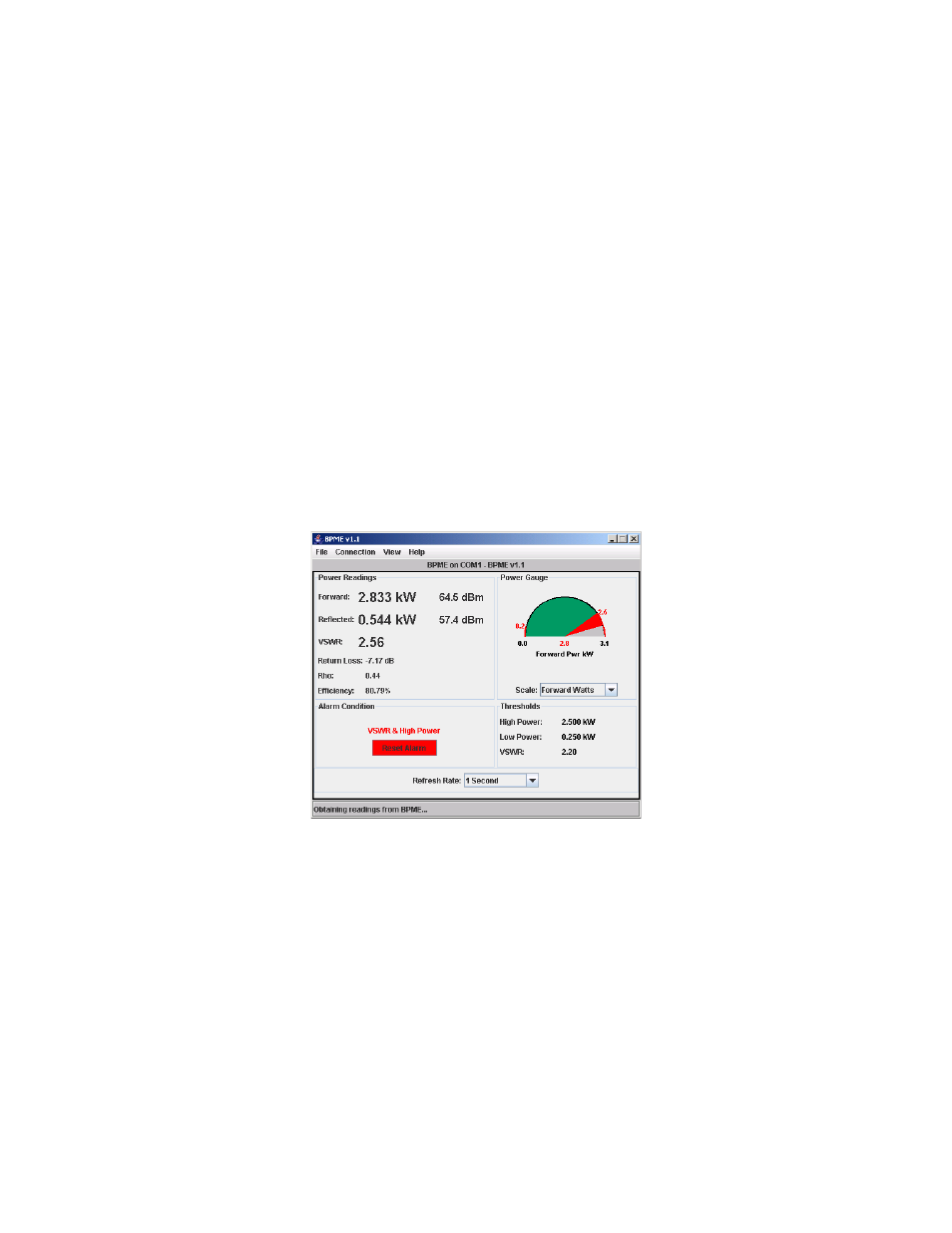

Figure 25 PCTool Main Screen (alarm display)
Config
The Configure (Config) screen has two tab views, Alarms and Frequency.
Alarm Tab - In the Alarms tab (Figure 26, page 39), you specify BPM-E alarm set-
tings. To return to the factory default alarm settings, click on the Factory Default
button. After you have set the alarm preferences, click the Apply Changes button
to record your settings in memory.
