Installing the XM Electronic Overspeed Detection System 45
Manually Resetting the XM EODS Relays
The XM-442 has an external reset switch located on top of the module, as
shown in Figure 2.19.

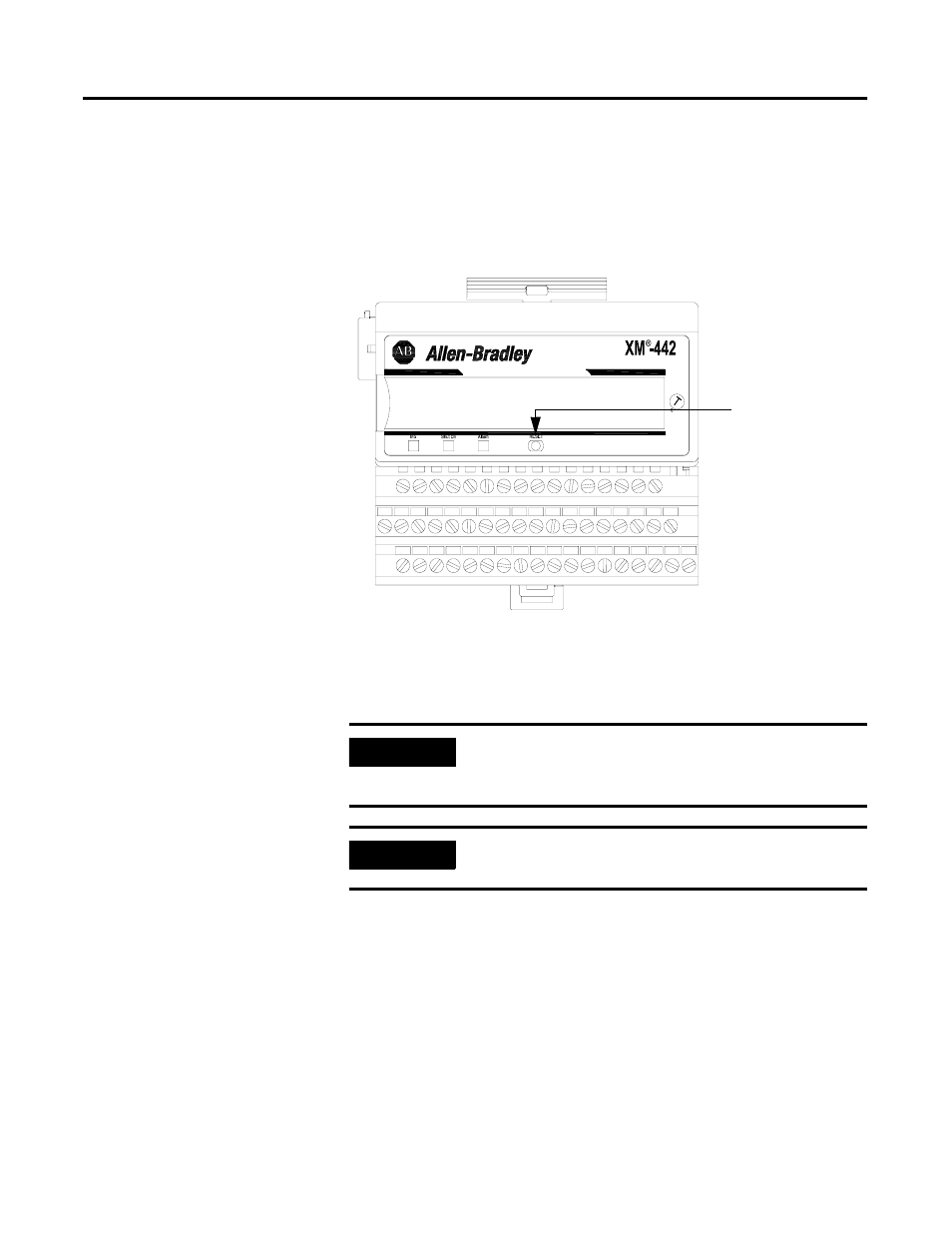

Figure 2.19 XM-442 Relay Switch
The switch can be used to reset all the latched relays in the XM-442 module.
Note that the XM-220 module has an external reset switch as well. Refer to the
XM-220 Dual Speed Module User Guide for more details.
IMPORTANT
The Reset switch resets the relays only if the input is no
longer in alarm or the condition that caused the alarm is no
longer present.
IMPORTANT
Reset the relays after the XM-220 modules are configured
and are not in alarm.
VOTED EODS RELAY
1440-REX03-04RG
Press the Reset
Switch to reset the
relays
