Page 10

Publication GMSI10-UM015B-EN-E - June 2011
10 Introduction
XM-442 Module Components

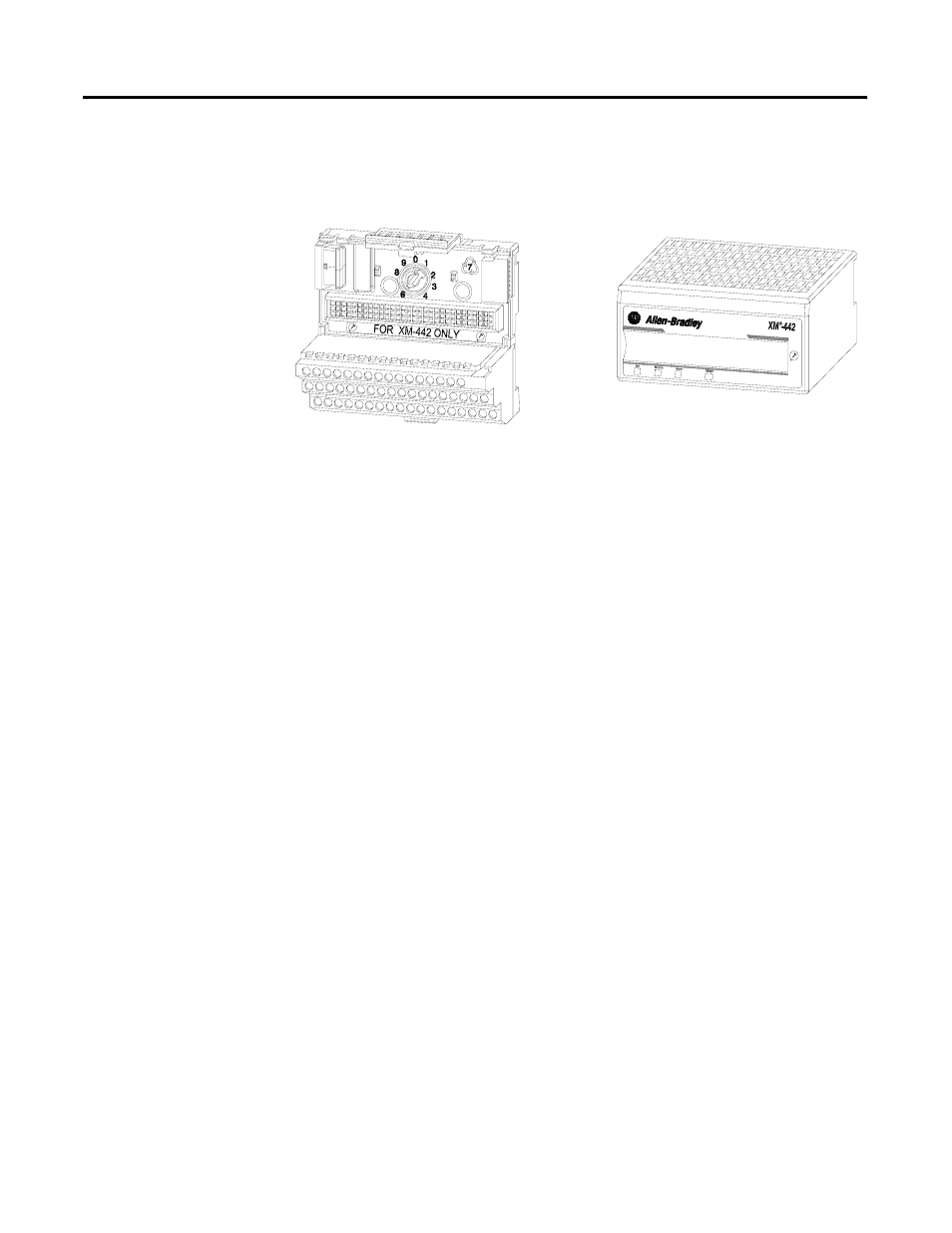

Figure 1.3 XM-442 Module Components
• XM-946 EODS Relay Terminal Base Unit - A DIN rail mounted base
unit that provides terminations for all field wiring required by the
XM-442.
• XM-442 Voted EODS Relay Module - Mounts on the XM-946 terminal
base unit via a keyswitch and a 96-pin connector. The XM-442 contains
four on-board relays. The XM-442 has no configurable parameters.
Using this Manual
This manual explains the installation and provides the configuration
procedures for the XM Electronic Overspeed Detection System. It is intended
for anyone who installs or uses the XM EODS.
This manual does not contain instructions for installing the Allen-Bradley
1606-XLP30E Power Supply modules. Refer to 1606-XLP Power Supply
Installation and Operation manual.
In addition, it only provides installation instructions for the XM-220 as it
pertains to the EODS. Refer to the XM-220 Dual Speed Module User Guide
for more information about the XM-220 module.
Organization
To help you navigate through this manual, it is organized in chapters based on
these tasks and topics.
Chapter 1 "Introduction" contains an overview of the XM Electronic
Overspeed Detection System and information about this manual.
VOTED EODS RELAY
1440-REX03-04RG
XM-946 EODS Relay Terminal Base Unit
Cat. No. 1440-TB-G
XM-442 Voted EODS Relay Module
Cat. No. 1440-REX03-04RG
