30 Installing the XM Electronic Overspeed Detection System
Connecting the Primary Power Supply
The primary 24V dc needs to be wired to terminal 0 (24V In 1) on the
XM-442 terminal base to provide power to the XM-442 and the other XM-220
modules.
Wire the primary power supply to the XM-442 terminal base unit as shown in
Figure 2.8. Then place a jumper between terminals 0 and 16 so that the
XM-442 can monitor the EODS primary power supply module.

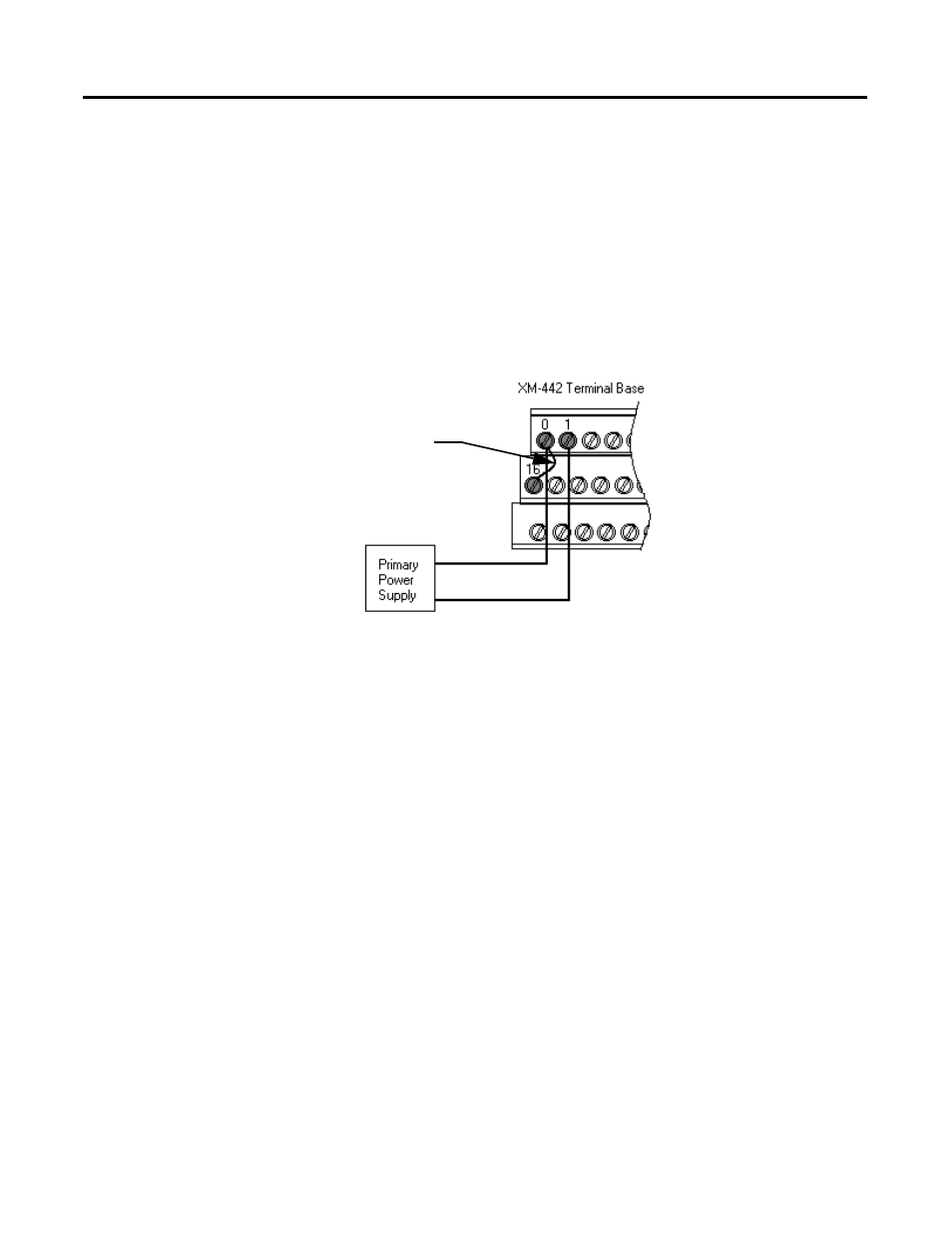

Figure 2.8 Primary Power Supply Connection
+
-
Jumper connected to
terminals 0 and 16
