Demo Unit User Manual (AADvance Controller)
5-2 Document: 553850 Issue 1.2: March 2011

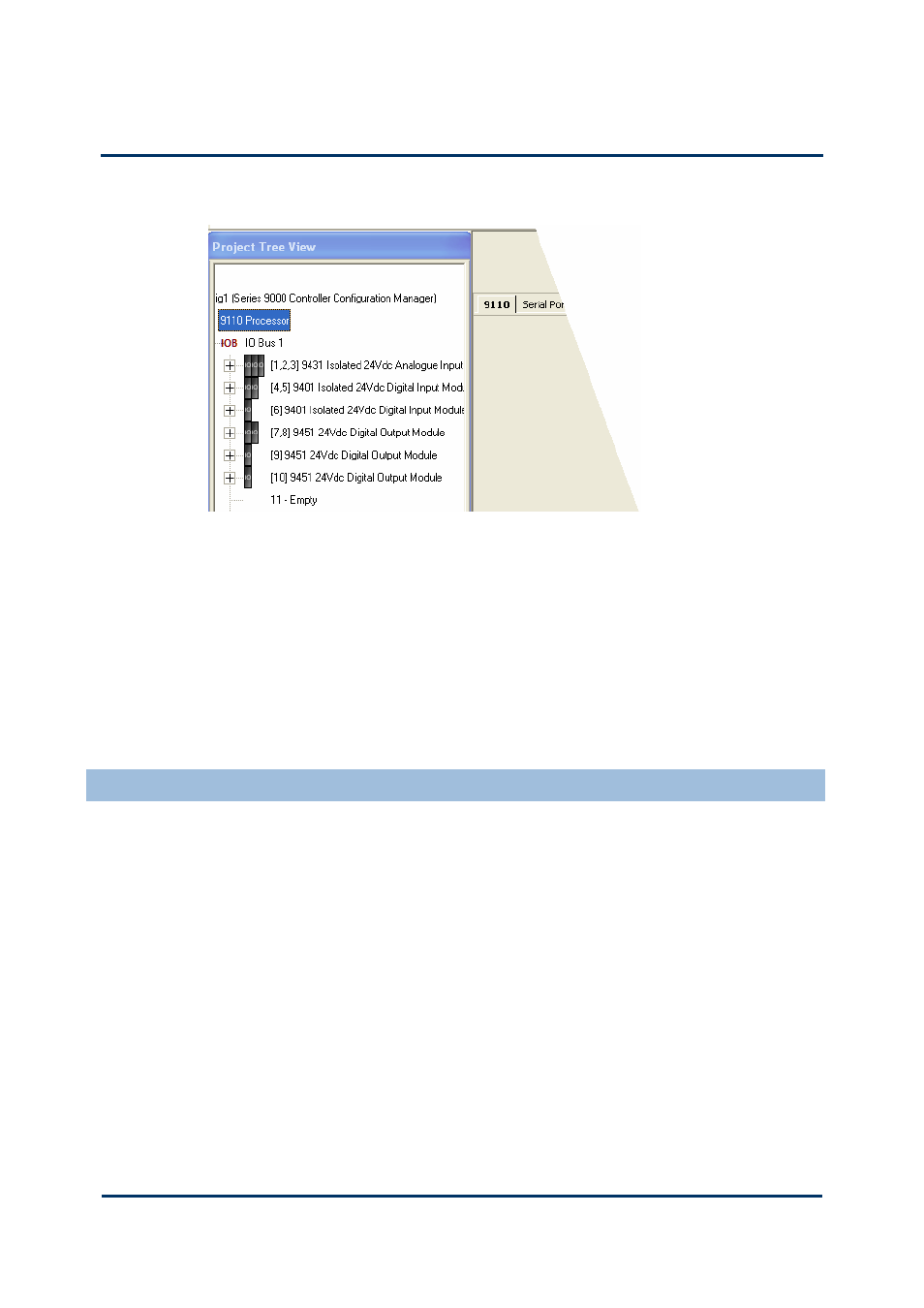

Example I/O Slot Configuration
In the example illustrated, the modules have been configured as follows:
A redundant group of analogue input modules has been configured in the first
three slots.
Two digital input modules are in the next two slots.
There is a single digital input module.
There is a group of two digital output modules.
Two single digital output modules.
Defining the I/O Hardware Architecture
The I/O hardware architecture is the physical arrangement of the I/O modules in the
AADvance controller. To define the I/O hardware architecture in the AADvance
Workbench you assign the modules to empty slot numbers on the processor I/O
buses. Use the Project Tree View to do this. If desired, you can clear an I/O slot or
move an assigned module to a different slot.
