38 Installing the XM-360 Process Module
Mounting the Module
The XM-360 mounts on the XM-944 terminal base unit, Cat. No. 1440-TB-E.
You should mount the module after you have connected the wiring on the
terminal base unit.

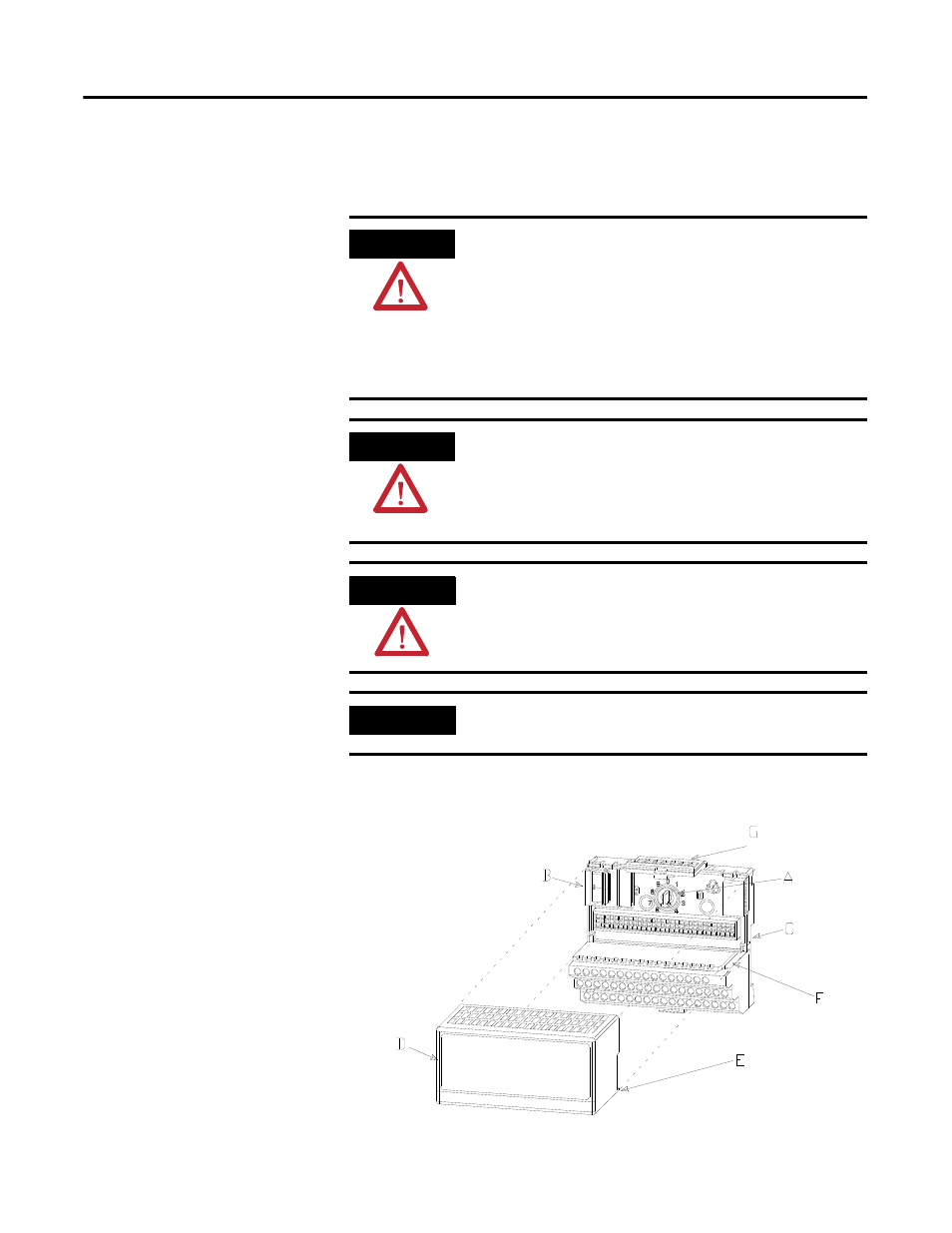

1. Make certain the keyswitch (A) on the terminal base unit (C) is at
position 5 as required for the XM-360.
ATTENTION
The XM-360 is compatible only with the XM-944 terminal
base unit. The keyswitch on the terminal base unit should
be at position 5 for the XM-360.
Do not attempt to install XM-360 modules on other
terminal base units.
Do not change the position of the keyswitch after
wiring the terminal base.
ATTENTION
This module is designed so you can remove and insert it
under power. However, when you remove or insert the
module with power applied, I/O attached to the module
can change states due to its input/output signal changing
conditions. Take special care when using this feature.
WARNING
When you insert or remove the module while power is on,
an electrical arc can occur. This could cause an explosion in
hazardous location installations. Be sure that power is
removed or the area is nonhazardous before proceeding.
IMPORTANT
Install the overlay slide label to protect serial connector and
electronics when the serial port is not in use.
