Start Up 2-7
PowerFlex 700L Active Converter Power Module User Manual
Publication PFLEX-UM002D-EN-P
CIP Messages
Parameters in the Converter may be accessed by a Logix processor using a
CIP message block. To read or write a parameter value you must
respectively perform a Get Attribute Single or Set Attribute Single message
to the DPI Parameter Object (Class 0x93). The Converter is in DPI Port 6,
so the instance is 22528 plus the parameter number. The value of the

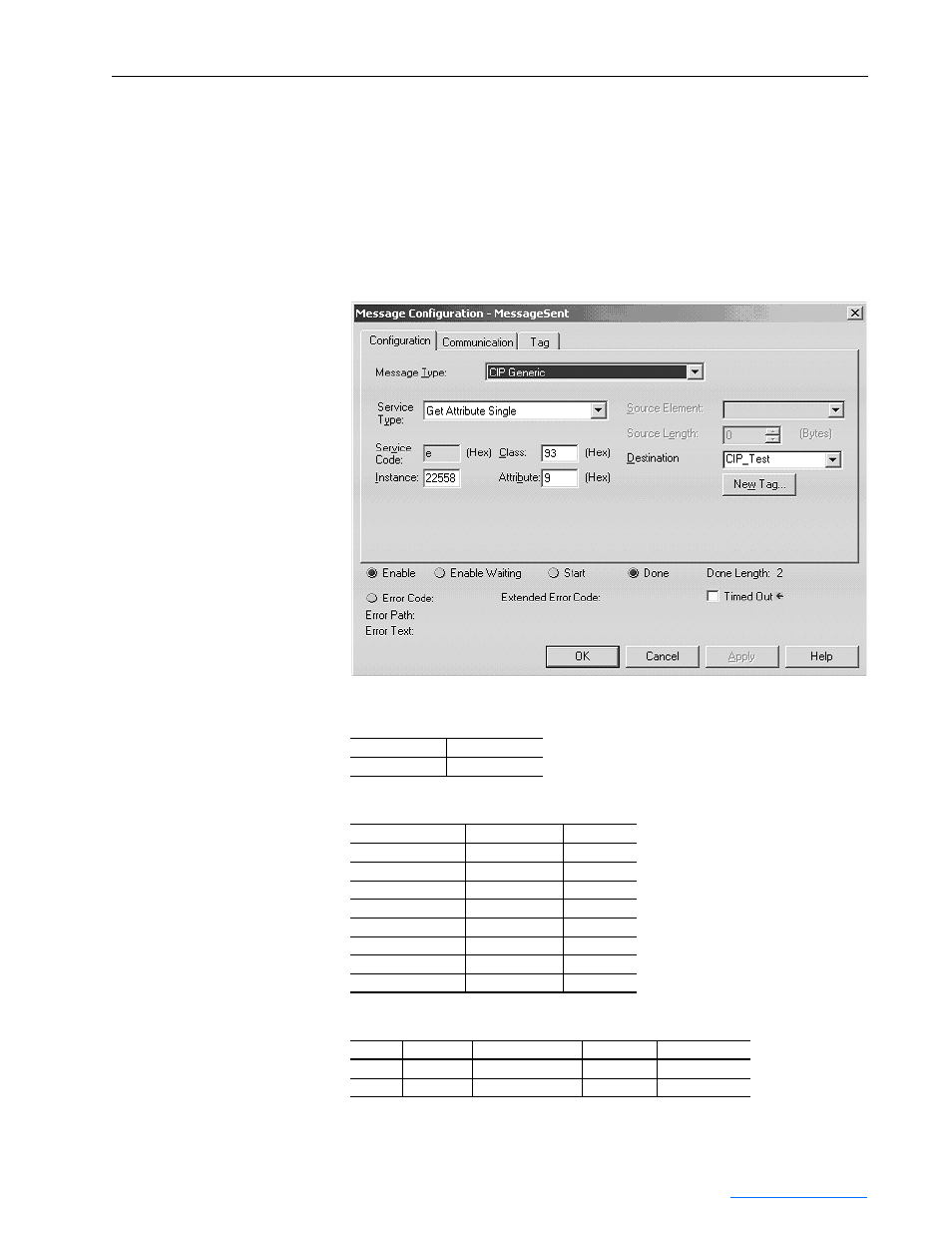

parameter is accessed through Attribute 0x9 or 0xA. The example shown
below reads the value of Converter parameter 30 - [Ambient Temp].
Class Code
Instances
Attributes
Hexadecimal Decimal
0x93 147
Instances (Hex.) (Dec.) Device
0x0000 – 0x3FFF 0 – 16383 Host
0x4000 – 0x43FF 16384 – 17407 Adapter
0x4400 – 0x47FF 17408 – 18431 DPI Port 1
0x4800 – 0x4BFF 18432 – 19455 DPI Port 2
0x4C00 – 0x4FFF 19456 – 20479 DPI Port 3
0x5000 – 0x53FF 20480 – 21503 DPI Port 4
0x5400 – 0x57FF 21504 – 22527 DPI Port 5
0x5800 – 0x5BFF 22528 – 23551 DPI Port 6
ID Rule Name Data Type Description
0x9 Get/Set Parameter Value Various Value in NVS
0xA Get/Set Parameter Value Various Value in RAM
