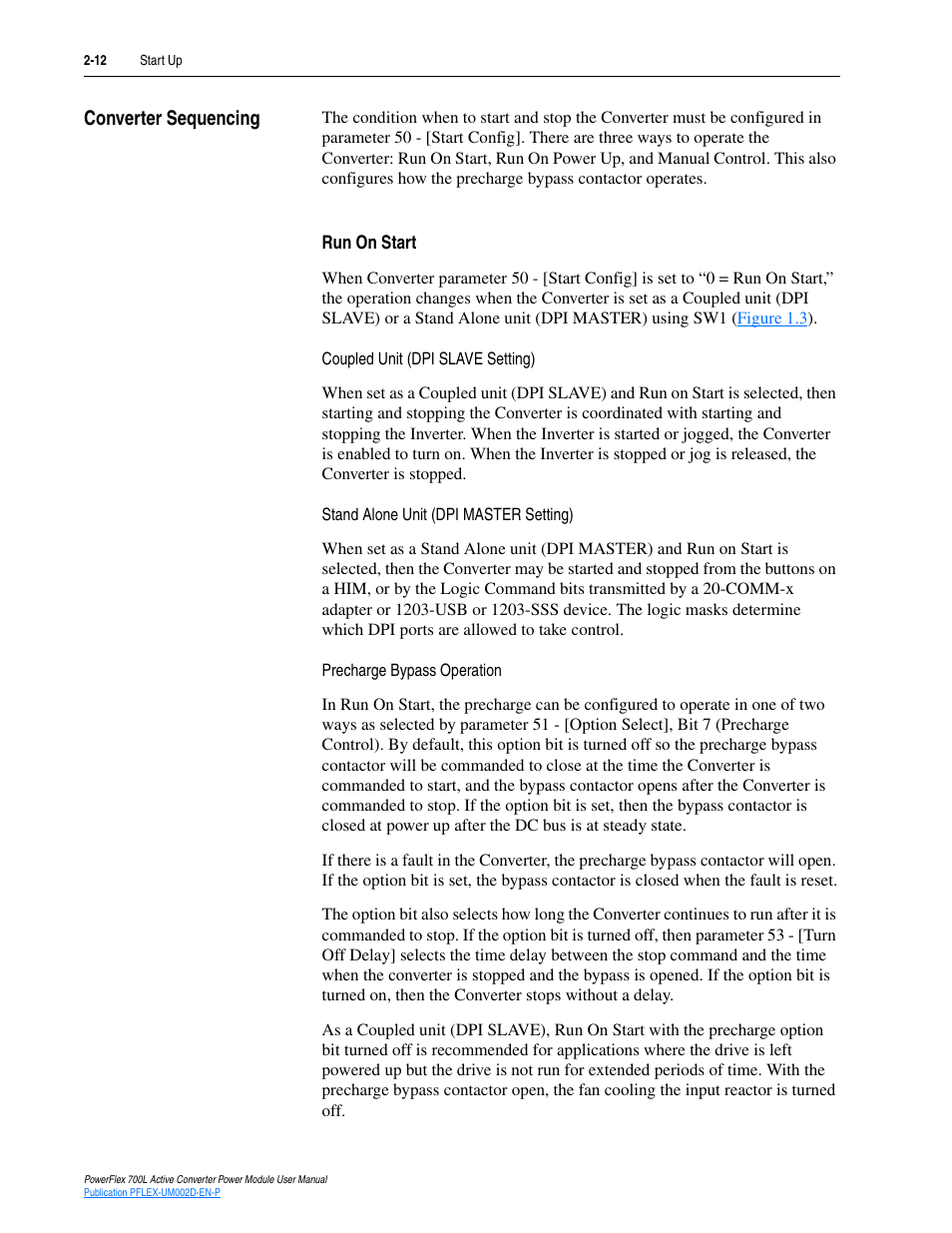

Converter sequencing, Run on start, Converter sequencing -12 – Rockwell Automation 20L, LPM20 PowerFlex 700 Active Converter Power Module User Manual
Page 30: Run on start -12, Greater detail in
