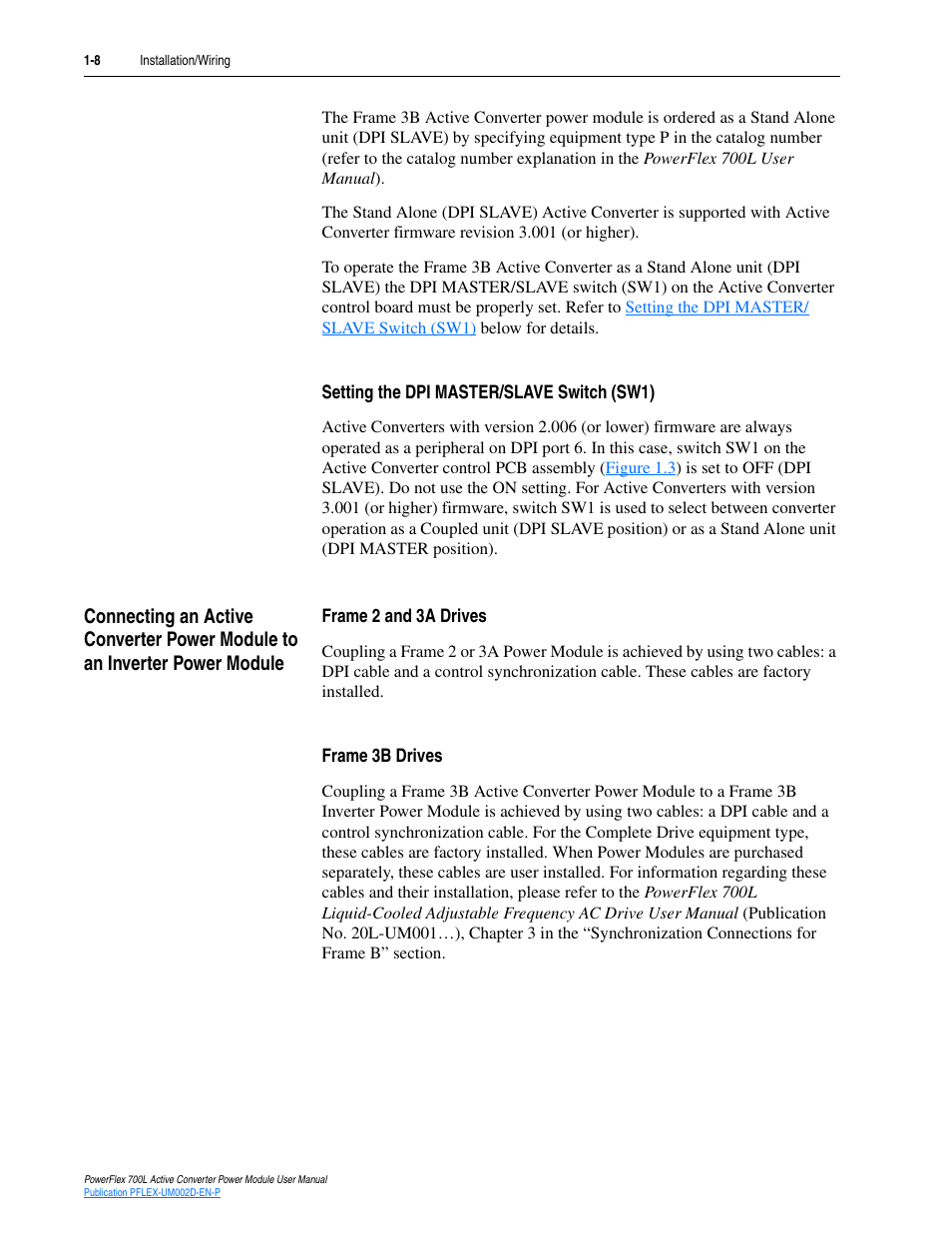

Setting the dpi master/slave switch (sw1), Frame 2 and 3a drives, Frame 3b drives – Rockwell Automation 20L, LPM20 PowerFlex 700 Active Converter Power Module User Manual
Page 18: Setting the dpi master/slave switch (sw1) -8, Frame 2 and 3a drives -8 frame 3b drives -8
