Chapter 2 Add the POINT I/O Ethernet Adapter and Digital Output Module to an RSLogix 5000 Project
Test the 1734-OB4E Output Module’s Light

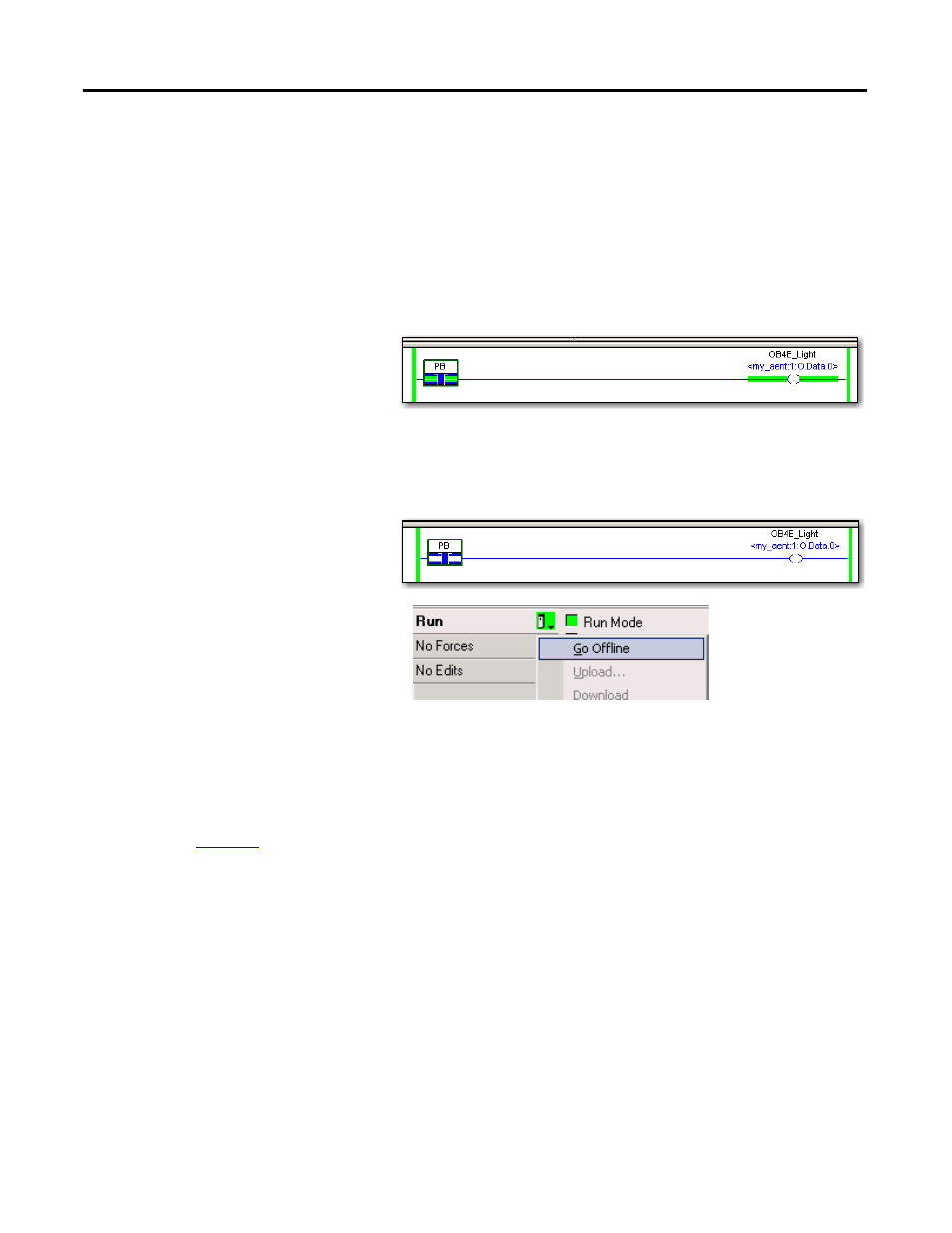

1. Move the controller’s mode switch to the RUN position.
2. If not open, open the project’s Main Routine to find the ladder logic written earlier in
this chapter.
3. Select the PB and press Ctrl+T.
This toggles the state from 0 to
1 (off to on).
4. Verify that the light on the distributed digital output module turns on.
5. Press Ctrl+T to toggle the state
back to 0 (off ).
6. Choose Go Offline.
Additional Resources
For a list of additional resources that might assist you when preparing the PowerFlex 40 drive
hardware, see
page 11 .
