Download the project to your logix5000 controller, Download the project, To your logix5000 – Rockwell Automation Logix5000 Control Systems: Connect POINT I/O Modules over an EtherNet/IP Network Quick Start User Manual
Page 29: Controller
Rockwell Automation Publication IASIMP-QS027A-EN-P - February 2012
29
Add the POINT I/O Ethernet Adapter and Digital Output Module to an RSLogix 5000 Project Chapter 2

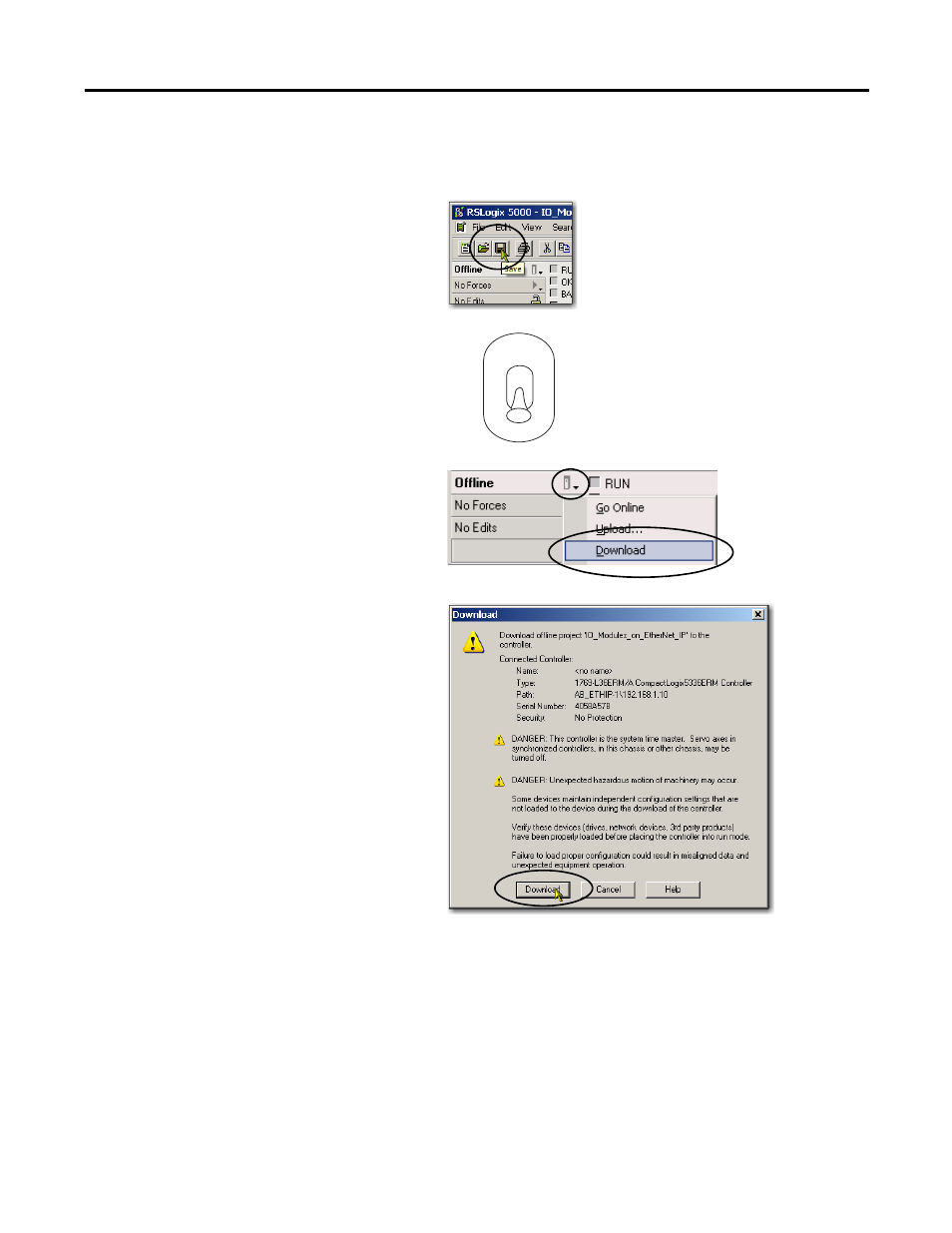

Download the Project to Your Logix5000 Controller
1.
Save your changes.
2.
Move the controller’s switch
to Program.
3.
Click the Controller Status icon
and choose Download.
4.
Click Download.
RUN
REM
PROG
