Add the POINT I/O Ethernet Adapter and Digital Output Module to an RSLogix 5000 Project Chapter 2

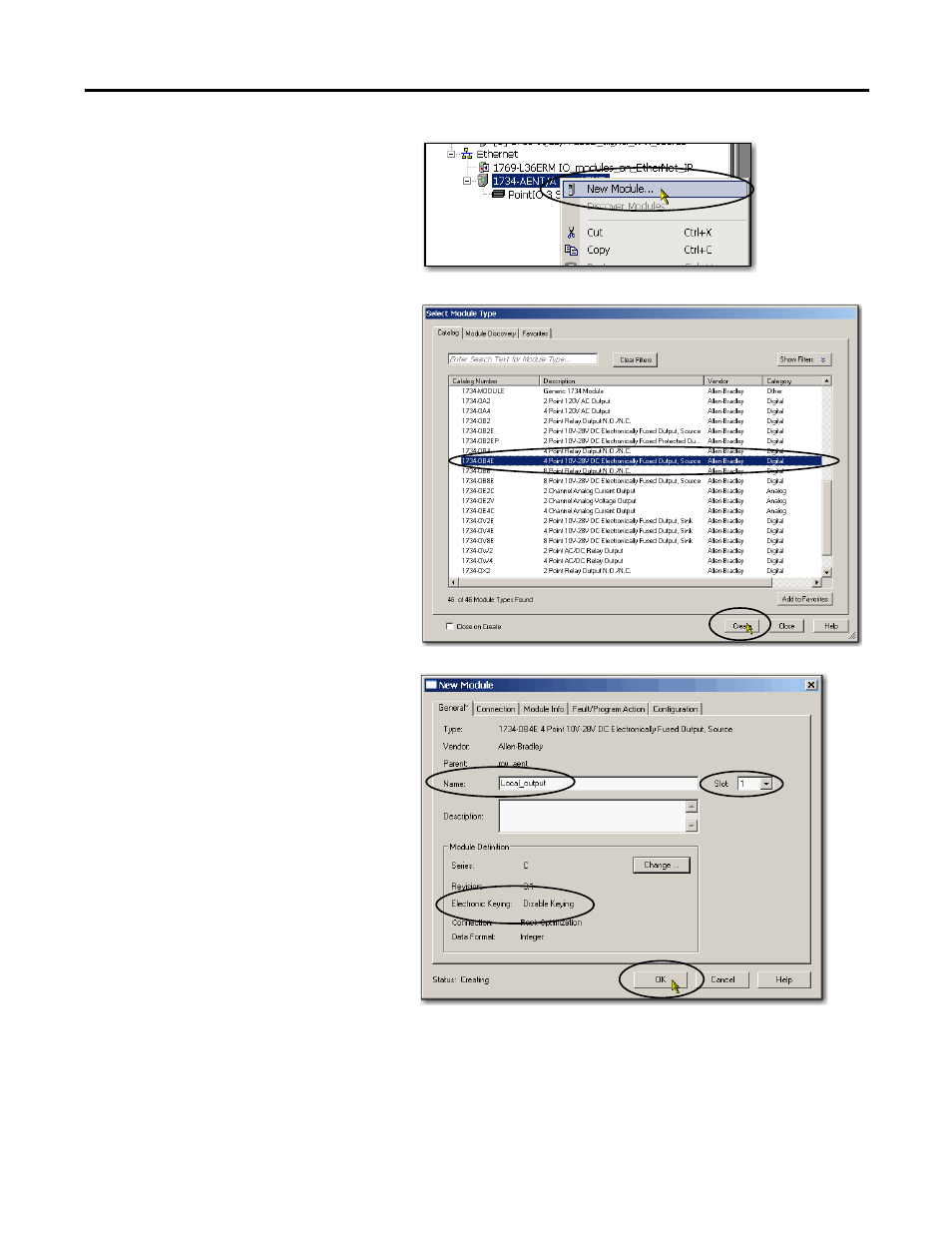

9. Right-click the 1734-AENT
Ethernet adapter and choose
New Module.
10. Select the 1734-OB4E digital
output module and click Create.
11. Configure the following
parameters:
• Name
• Slot (Slot number is the
position of the module to the
right of the adapter.)
• Electronic Keying
12. Click OK.
The 1734-OB4E digital output
module is added to the
I/O configuration.
13. Save the project.
