Add the POINT I/O Ethernet Adapter and Digital Output Module to an RSLogix 5000 Project Chapter 2

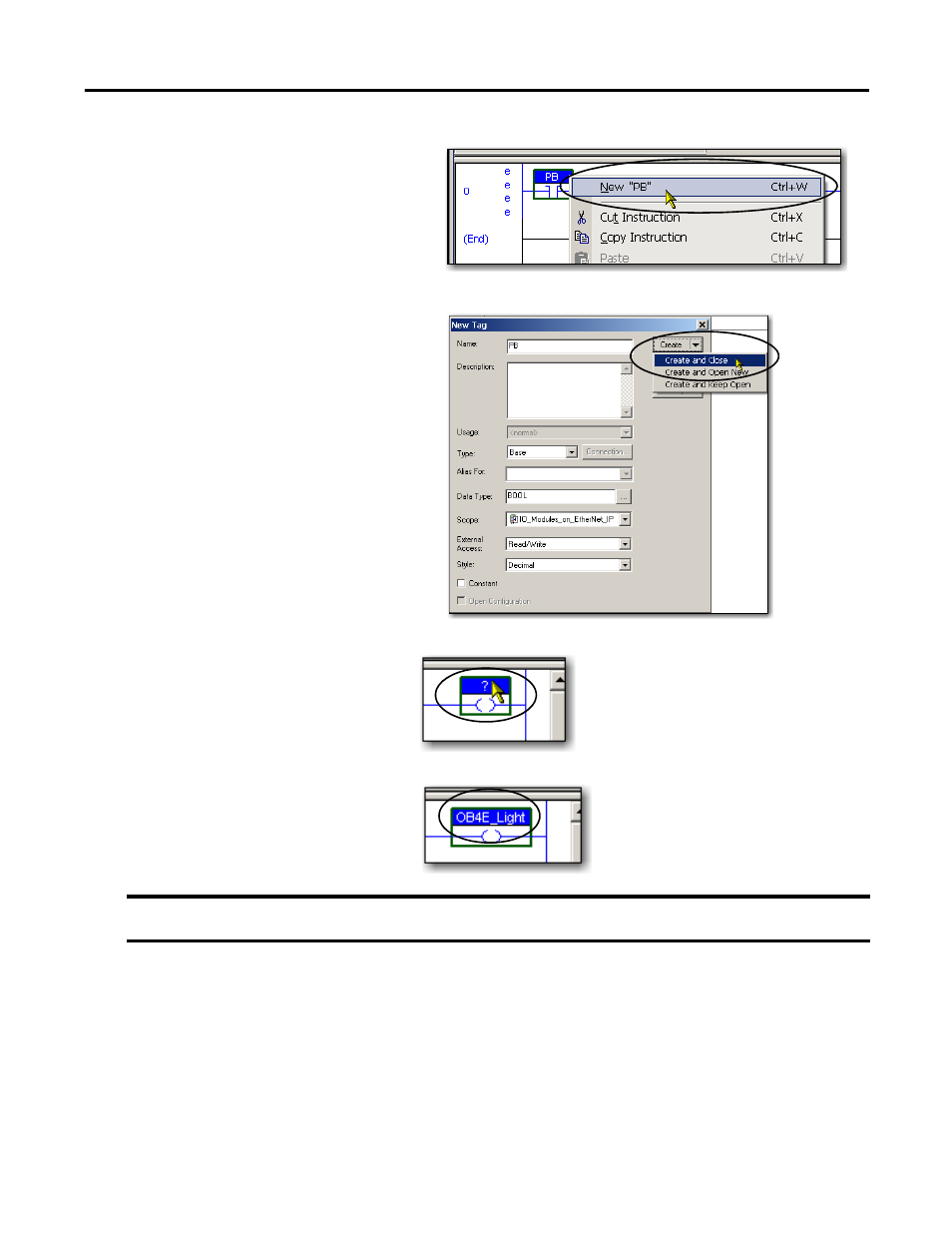

8. Right-click PB and choose
New “PB”.
9. When the New Tag dialog box
appears, click Create and Close to
use the default values.
10. Double-click the ? in the Output
Energize element.
11. Name the Output Energize
element OB4E_Light.
IMPORTANT Do not use spaces in the tag name. Use underscores (__) instead.
