Page 23: Output module
Rockwell Automation Publication IASIMP-QS027A-EN-P - February 2012
23
Add the POINT I/O Ethernet Adapter and Digital Output Module to an RSLogix 5000 Project Chapter 2

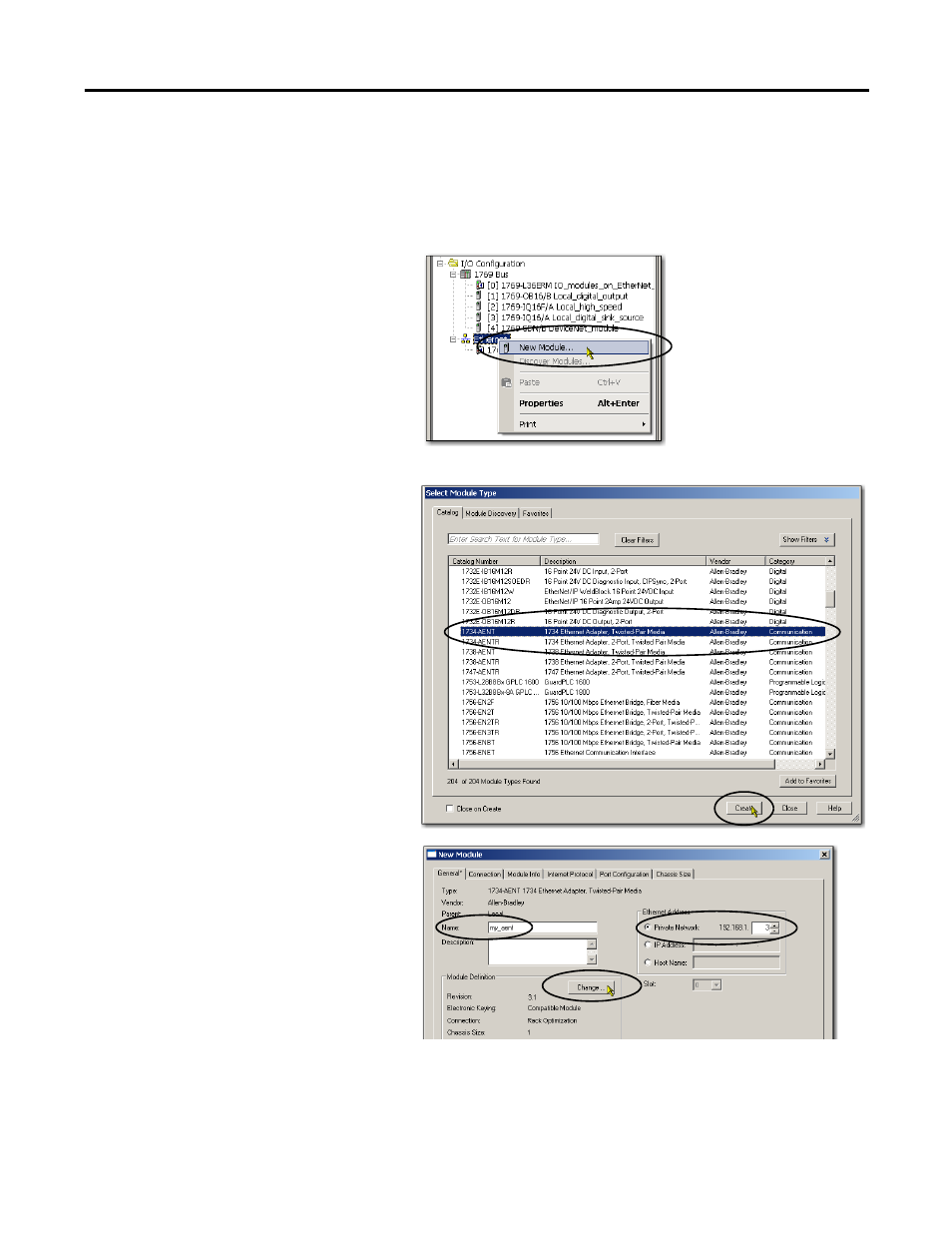

Configure the POINT I/O Adapter and Output Module
1.
Open your RSLogix 5000 project and verify that it is Offline with the controller.
2.
Right-click Ethernet in the I/O
Configuration folder and choose
New Module.
3.
Select the 1734-AENT Ethernet
adapter and click Create.
4.
Type the name for the adapter.
5.
Type the adapter’s IP address.
6.
Click Change.
