Chapter 5
Analysis Functions and Runtime Displays
5–7
For example, assume no light probe results are displayed (that is, Disp.
Probe : set to Disabled ). If you set Disp. Formulas to 4, you can set Disp.
Windows to a value from 0–6. If you then set Disp. Windows to 3, you can
then set you can set Disp. Gages to a value from 0–1. If you then set Disp.
Gages to 1, this would display the data from formulas 1–4, windows 1–3,
and gage 1 on the first page of the Stat1 Page and Result Page display
panels, formulas 5–8, windows 4–6, and gage 2 on the second page, and so
on.
Help message: If you pick the “help” symbol with the Disp.
Formulas, Disp. Windows or Disp. Gages box selected, the help message
box . . .

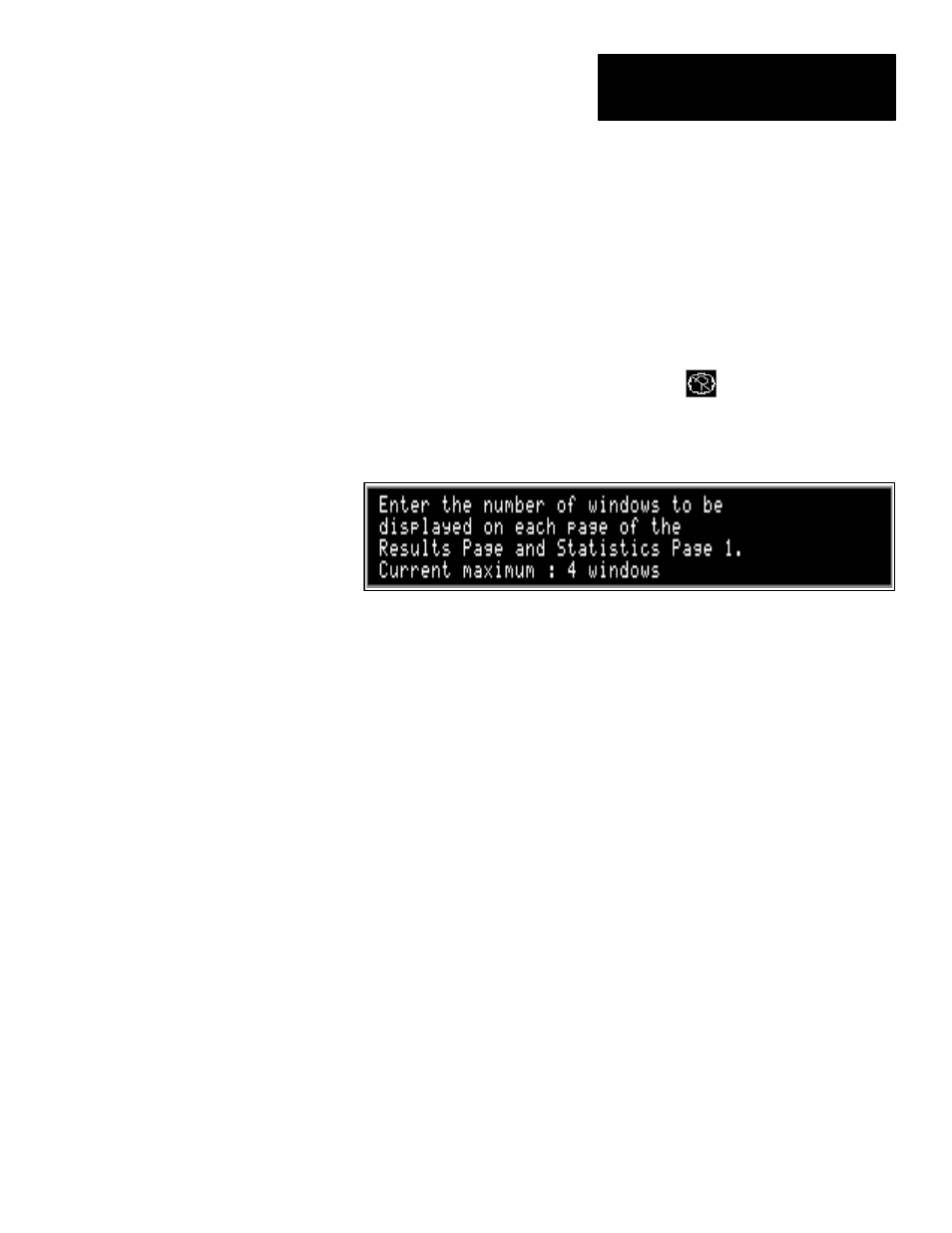

Figure 5.8 Typical help message for the Disp. Windows option
. . . will show you the current maximum number of formulas, windows or
gages that you can select, given the number of tools currently selected, and
the enabled/disabled status of the light probe results display.
To display the formula/tool results on the Result Page during run mode:
•
Pick Display
→
Result Page to access the Result Page display.
•
Pick the Page
↓
and Page
↑
buttons to page up or down through the
formula and tool results.
To display the formula/tool statistics on the Stat1 Page during run mode:
•
Pick Display
→
Stat1 Page to access the Stat1 Page display.
•
Pick the Page
↓
and Page
↑
buttons to page up or down through the
formula and tool statistics.
